GOT115A-TWL-WCD 15.6" Fanless Touch Panel PC
Features:

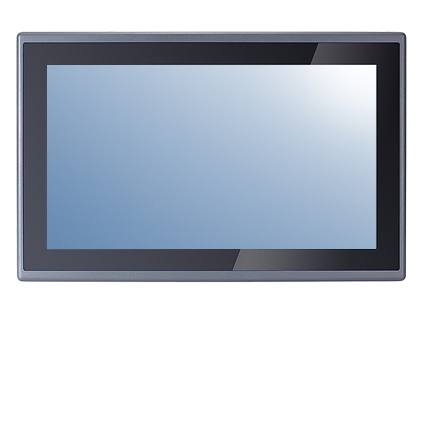

- 15.6" WXGA TFT LCD, 400 nits with LED backlight, PCAP
- Fanless design with Intel N-series N150 Processor (Twin Lake)
- Onboard 8GB LPDDR5 Memory
- 1 x Removable 2.5" SATA SSD
- 1 x M.2 2242/2280 M-key (PCIe Gen 3 x2 NVMe), 1 x mSATA

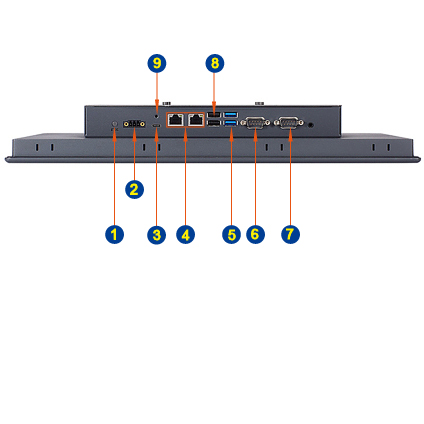

- 2 x LAN, 4 x USB, 1 x USB Type C, 2 x COM, and 1 x Line-out
- AT/ATX mode selectable via hardware switch
- Supports Wi-Fi (6E/7) or 4G LTE
- Supports Flexible I/O Window
- Operating temperature: 14°F to +122°F
- Front bezel IP65 & rear cover IP30

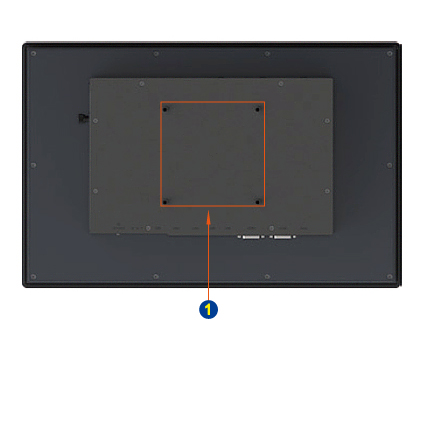

- Supports panel mount, wall mount, VESA, and desktop stand
The GOT115A fanless touch panel PC features a 15.6-inch WXGA TFT LCD with 400-nit LED backlighting and projected capacitive (PCAP) touch technology. Powered by an Intel N-series N150 (Twin Lake) processor with onboard 8GB LPDDR5 memory, it delivers quiet, reliable performance for industrial applications. Its connectivity includes 2 LAN ports, 4 USB ports, 1 USB Type-C port, 2 COM ports, and 1 line-out. The system offers an IP65-rated front bezel, an IP30-rated rear cover, hardware-selectable AT/ATX power mode, M.2 NVMe and mSATA storage support, removable 2.5-inch SATA SSD storage, and optional Wi-Fi 6E/7 or 4G LTE connectivity. With a flexible I/O window, an operating temperature range of -10°C to +50°C, and support for panel, wall, VESA, and desktop stand mounting, the GOT115A is a versatile solution for industrial and embedded environments.
Barebone & Base Configurations
- 15.6" 1366x768 400 nits TFT LCD w/ Projected Capacitive Multi-touch Screen
- Intel N150 4 Cores Processor (up to 3.6 GHz)
- Onboard 8GB LPDDR5 Memory
- 500GB M.2 NVME Solid State Drive
- 1 x RS-232, 1 x RS-232/422/485
- 2 x USB 3.2 GEN 2, 2 x USB 2.0, 1 x USB Type-C
- TPM 2.0
- 1 x M.2 E Key 2230 for wireless (PCIe & USB 2.0)
- 1 x Full-size PCIe Mini card slot (USB + PCIe/SATA)
- 1 x Nano SIM card slot
- 2 x 2.5GbE LAN (I226-V, supports UEFI PXE boot and LAN wake-up, w/o TSN)
- 9 ~36VDC Terminal Block Power Connector
