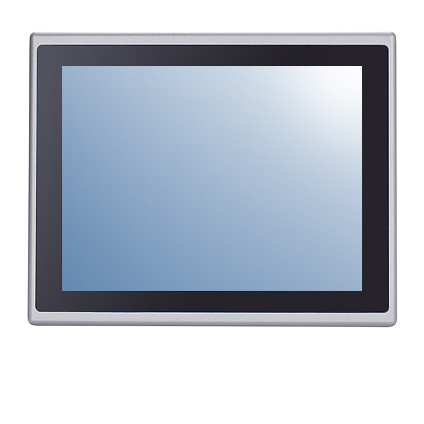

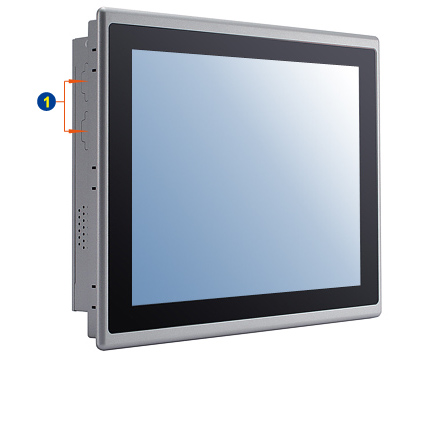

GOT312A-ELK-TCD 12.1" Fanless Panel PC
Features:
- 12.1" WXGA Projected Capacitive Multi-Touch Wide Screen
- Fanless Design with Intel Celeron Processor J6412
- 1 x 260-pin DDR4 2133/2400/2666/3200 SO-DIMM (Max. 32GB)
- 1 x Removable 2.5" SATA HDD, 1 x mSATA
- TPM 2.0
- 1 x 2.5GbE LAN, 1 x GbE LAN, 4 x USB 3.2, 2 x COM
- 2 x DB-9 Half-cuts for RS-232 (Optional)

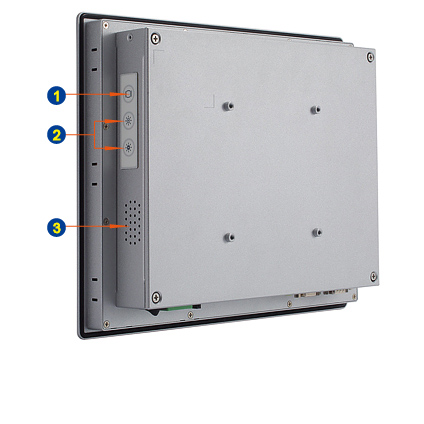

- Supports Panel Mount, Wall Mount, VESA Arm, and Desktop Stand
- IP65 Aluminum Front Bezel

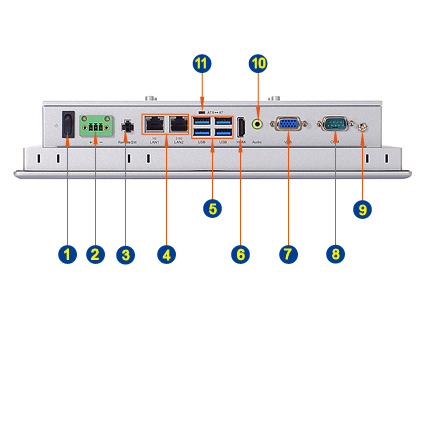

The GOT312A-ELK-TCD is a compact and rugged 12.1" panel computer designed for industrial applications, featuring an XGA projected capacitive multi-touch widescreen for responsive and intuitive control. Powered by a fanless Intel Celeron J6412 processor, it delivers efficient performance with minimal maintenance. The system offers versatile connectivity with 2 LAN ports, 4 USB ports, HDMI, VGA, and a COM port supporting RS-232/422/485. Its IP65-rated aluminum front bezel provides protection against dust and water, making it suitable for harsh environments. With optional WLAN module and antenna support, and a wide operating temperature range of -10°C to +50°C, the GOT312A-ELK-TCD ensures reliable operation across various settings. Mounting flexibility includes wall, panel, VESA, and desktop stand options for easy deployment.
Barebone & Base Configurations
- 12.1" 1024x768 500 nits TFT LCD w/ Projected Capacitive Multi-touch Screen
- Intel Celeron Processor J6412 (1.5M Cache, up to 2.60 GHz)
- 8GB DDR4 SO-DIMM Memory
- 480GB 2.5" SATA Hard Drive
- 1 x RS-232/422/485 (DB9)
- 4 x USB3.2 Ports
- TPM 2.0
- 1 x HDMI, 1 x VGA
- 1 x Full-size PCI-Express Mini Card Slot (PCIe/SATA + USB)
1 x M.2 Key E 2230 (for Wi-Fi) - 1 x 2.5GbE LAN, 1 x GbE LAN
- 9 ~36VDC Terminal Block Power Connector
