GOT3156T-834 - 15" Fanless Panel PC


  • 15" XGA TFT LCD Display
  • Fanless Cooling System with Intel® Atom™ E3827 1.75Ghz Processor (Bay Trail)
  • 1x 204-pin DDR3L 1333/1600 MHz SO-DIMM Slot (Max. 8GB)
  • 1x 2.5" SATA HDD
  • 1x CFast™ or mSATA
  • Supports 4x RS-232/422/485 COM Ports, Adjust RS-232/422/485 Setting via BIOS
  • 2x USB2.0, 2x US3.0, 2x Gigabit Ethernet Ports
  • Supports Dual Express Mini Card Slots
  • Supports WLAN/3G Module and Antenna (Optional)
  • Supports Panel Mount; and Wall Mount, VESA Arm, Desktop Stand (Optional)
  • Supports Wide Temperature Range of -4°F ~ +131°F
  • 9~36VDC Wide Voltage and Over Current Protection
  • IP65 NEMA 4 Rugged Protection, Aluminum Front Bezel

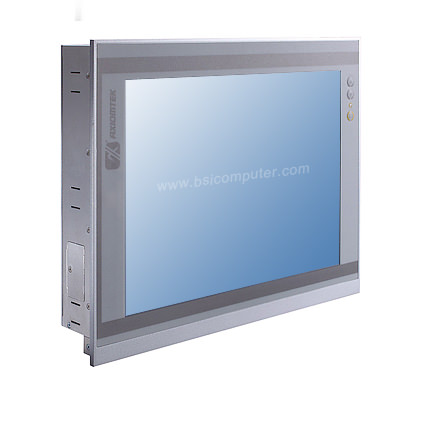

The GOT3156T-834 is a 15" fan-less Touch Panel PC supporting Intel's Atom processor E3827 (1.75GHz) and a maximum of 8GB DDR3L system memory. The resistive type touch panel is surrounded by an IP65, NEMA 4 aluminum front bezel that offers rugged protection. This Touch Panel PC supports a wide operating temperature range from -20°C to +55°C (-4°F ~ +131°F) and accepts 9~36VDC with over current protection safety. Internally there is sufficient room for a single 2.5" SATA HDD and one CFast or one mSATA. Dual Express Mini card slots are also supported for additional components.

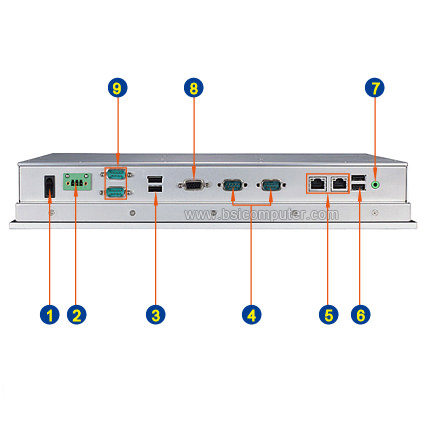

The rich I/O interface of the GOT3156T-834 consists of four RS232/422/485 DB9 COM Ports, with adjustability for RS232/422/485 setting via the BIOS. There are also two Gigabit LAN, two USB 3.0, two USB 2.0 and a VGA output. Support for a WLAN/3G module and antenna are available and optional. The GOT3156T-834 can be mounted in either Panel mount, VESA mount, Desktop stand or Wall mount.

Barebone & Base Configurations

GOT3156T-834 Fanless Panel PC

  • 15" 1024x768 400 nits XGA TFT LCD w/ Resistive Touch Screen
  • Intel® Atom™ E3827 1.75 GHZ 1.6GHz Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 2 x Gigabit Ethernet
  • 2 x USB3.0, 2 x USB2.0 Port
  • 4 x RS-232/422/485 (DB9)
  • 2 x PCIe Mini Card Slots
  • Wireless Module (Optional)
  • 9-36VDC Terminal Block Connector
  • 120W 24V AC-DC Power Adapter w/ Bare Wire (Optional)

Barebone Only:
