GOT315B-ADL-WCD 15.6" Fanless Panel PC

Features:

  • 15.6" WXGA Projected Capacitive Multi-Touch Wide Screen
  • Fanless Design with 14th/13th/12th gen Intel Core i9/i7/i5/i3 or Pentium processor
  • Intel H610 Chipset
  • 1 x 260-pin DDR4 3200 SO-DIMM (Max. 32GB)
  • 1 x 2.5" SATA HDD w/ Swappable HDD Tray
  • TPM 2.0 Onboard

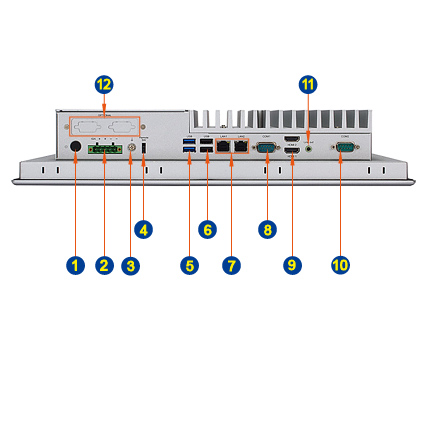

  • 1 x 2.5GbE LAN, 1 x GbE LAN, 2 x USB 3.2, 2 x USB 2.0, 2 x COM
  • 1 x Flexible I/O window, Supporting COM3, COM4, and DIO (On-board Optional)
  • Supports WLAN Module and Antenna (optional)
  • Supports Panel Mount, Wall Mount, VESA Arm, and Desktop Stand
  • Flat Front Panel Touch Screen with Rugged IP65 Front Bezel

The GOT315B-ADL-WCD is a 15.6" panel computer designed for industrial reliability and modern user interaction. It features a Full HD LCD with 450 nits of brightness and a projected capacitive touch screen for responsive, multi-touch input. Housed in a flat front panel with a rugged IP65-rated bezel, it offers protection against dust and water, making it ideal for demanding environments. The fanless design ensures silent, low-maintenance operation, while a swappable HDD tray and support for one 2.5" SATA HDD/SSD provide flexible storage options. With TPM 2.0 onboard for enhanced security, optional WLAN support, and a range of connectivity including 4 USB and 2 COM ports, the system is both powerful and adaptable. It supports multiple mounting options, including panel, VESA, desktop stand, and wall mount, for seamless integration into various workspaces.

Barebone & Base Configurations

GOT315B-ADL-WCD Heavy Industrial Panel PC

  • 15.6" 1920x1080 450 nits TFT LCD w/ Projected Capacitive Multi-touch Screen
  • Intel Pentium Gold G7400T Processor (6M Cache, 3.10 GHz)
  • Up to 14th/13th/12th gen Intel Core i9/i7/i5/i3 or Pentium processor
  • 8GB DDR4 SO-DIMM Memory
  • 480GB 2.5" SATA Hard Drive
  • 1 x RS-232/422/485 (DB9), 1 x RS-232 (via Cable
  • 2 x USB 3.2, 2 x USB 2.0 Ports
  • TPM 2.0
  • 2 x HDMI
  • 1 x PCI Express Mini Card (USB+PCIe signal+nano SIM slot "LTE")
  • 1 x M.2 Key E 2230 with PCIe x1 and USB 2.0
  • 1 x 2.5GbE LAN, 1 x GbE LAN
  • 10 ~36VDC Terminal Block Power Connector

Barebone Only:

$1,295.00

Configured:

$1,615.00

Customize
