GOT315WL-845 15.6" Fanless Panel PC
Features:
- 15.6" WXGA Projected Capacitive Multi-Touch Wide Screen
- Fanless Design with Intel® Pentium® N3710 1.6 GHz Quad Core Processor
- 1 x 204-pin DDR3L-1333/1600SO-DIMM (Max. 8GB)
- 2.5" SATA HDD & mSATA
- 2 x GbE LANs, 2 x USB 3.0, 2 x USB 2.0 and 2 x COM
- Supports Panel Mount, Optional VESA Arm, Desktop Stand, Wall Mount
- IP65 Aluminum Front Bezel
- Adjust RS232/422/485 Setting via BIOS

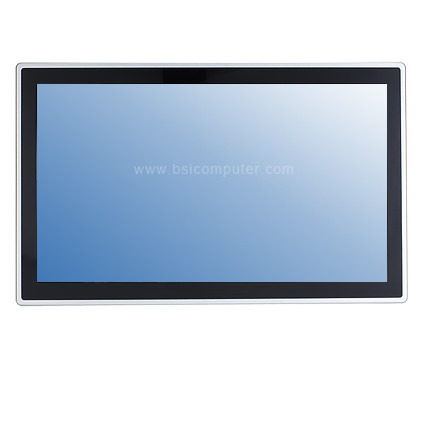

The GOT315WL-845 is a Touch Panel PC with a 15.6" WXGA TFT LCD Panel and a projected capacitive multi-touch screen with an IP65 front bezel. It supports an Intel Pentium N3710 1.6 GHz processor and up to 8GB 204-pin SO-DIMM DDR3L-1333/1600. A 2.5" SATA HDD is standard as well as an mSATA for storage. The GOT315WL-845 comes with a full-size PCI Express Mini Card slot with mSATA and a full-size PCI Express Mini Card slot with SIM.

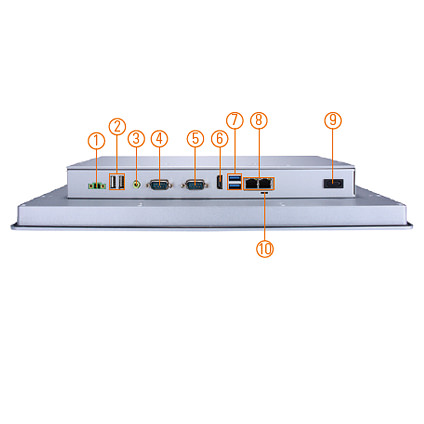

The GOT315WL-845 has many I/Os including one RS-232 COM Port, a selectable RS-232/422/485 COM Port and four USB Ports. There is also two 10/100/1000 Mbps Ethernet ports available. The dimensions are 15.62" x 2.3" x 9.73" and the weight is just 14.3 lbs. The GOT315WL-845 is powered by 24 VDC and can be mounted by Panel mount, VESA arm, Desktop stand or Wall mount.
Barebone & Base Configurations
- 15.6" 1366x768 400 nits TFT LCD w/ Projected Capacitive Multi-touch Screen
- Intel® Pentium® Processor N3710 (2M Cache, 1.60 GHz)
- 2GB DDR3L SO-DIMM Memory (1x2GB)
- 480GB 2.5" SATA Solid State Drive
- 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
- 2 x USB2.0, 2 x USB3.0 Ports
- 2 x PCIe Mini Card Slots
- 2 x Gigabit Ethernet Ports
- 3G, Wireless Module & Antenna (Optional)
- DC Version: 24VDC Terminal Block Power Connector
