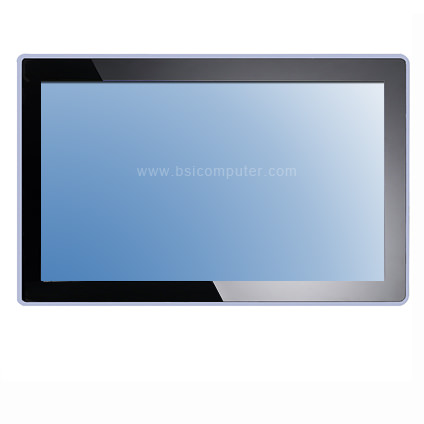

GOT318WL-845 18.5" Fanless Panel PC


  • 18.5" WXGA Projected Capacitive Multi-Touch Wide Screen/ Flat Resistive Touch (Optional)
  • Fanless Design with Intel® Pentium® N3710 1.6 GHz Quad Core Processor
  • 1 x 204-pin DDR3L-1333/1600SO-DIMM (Max. 8GB)
  • Supports 2.5" SATA HDD & mSATA
  • 3G, Wireless Module & Antenna (Optional)
  • 2 x GbE LANs, 2 x USB 3.0, 2 x USB 2.0 and 2 x COM
  • Supports Panel Mount
  • VESA Arm, Desktop Stand, Wall Mount (Optional)
  • IP65 Aluminum Front Bezel
  • Adjust RS232/422/485 Setting via BIOS

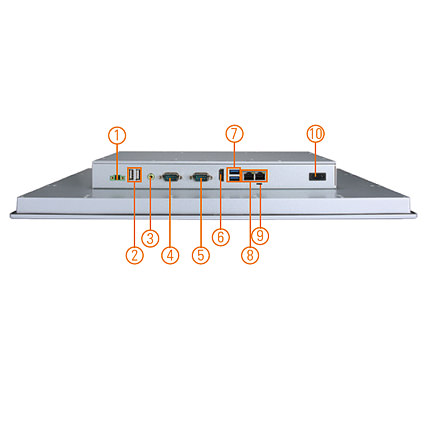

The GOT381WL-845 is an 18.5" WXGA TFT LCD IP65 front bezel multi-touch panel PC. The PC is capable of having the option of choosing between Projected capacitive multi-touch or flat resistive touch, with projected capacitive touch being the default option. The unit I/O interface comes installed with RS-232, RS-232/244/485, USB 3.0, USB 2.0 and 10/100/1000 Mbps LAN ports.

Internally the system chipset is SoC integrated and supports the Pentium N3710 1.6 GHz processor. The motherboard uses 204-pin SO-DIMM DDR3L-1333/1600 memory and supports a capacity up to 8GB of RAM. Furthermore for storage the GOT381WL-845 is provided in the form of a 2.5" SATA HDD and mSATA slot. Expansion options are also supported by equipping the motherboard with a full-size PCI Express Mini Card slot with mSATA and a full-size PCI Express Mini Card slot with SIM. The operational temperature ranges from 0°C to +50°C and runs on AC and DC power supplies. The AC power supply runs on 12 VDC while the DC version runs on 24 VDC. Both power supplies have a consumption rate of 60W. Numerous mounting options are also available to the user in the form panel mounting, wall mounting, VESA arm, and desktop stand.

Barebone & Base Configurations

GOT318WL-845 Fanless Panel PC

  • 18.5" 1366x768 250 nits TFT LCD w/ Projected Capacitive Multi-touch Screen
    5-wire Flat Resistive Touch Screen (Optional)
  • Intel® Pentium® Processor N3710 (2M Cache, 1.60 GHz)
  • 2GB DDR3L SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 2 x USB2.0, 2 x USB3.0 Ports
  • 2 x PCIe Mini Card Slots
  • 2 x Gigabit Ethernet Ports
  • Wireless Module (Optional)
  • 24VDC Terminal Block Power Connector

Barebone Only:
