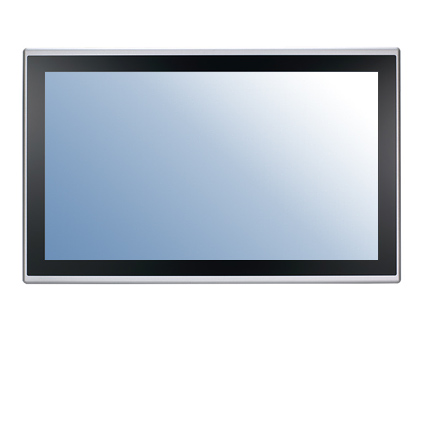

GOT321B-ADL-WCD 21.5" Fanless Panel PC
Features:
- 21.5" FHD TFT LCD w/ Projected Capacitive Multi-Touch Screen
- 14th/13th/12th gen Intel Core i9/i7/i5/i3 or Pentium processor
- Intel H610 Chipset
- 1 x 260-pin DDR4 3200 SO-DIMM (Max. 32GB)
- 1 x 2.5" SATA Drive Bay
- TPM 2.0 Onboard

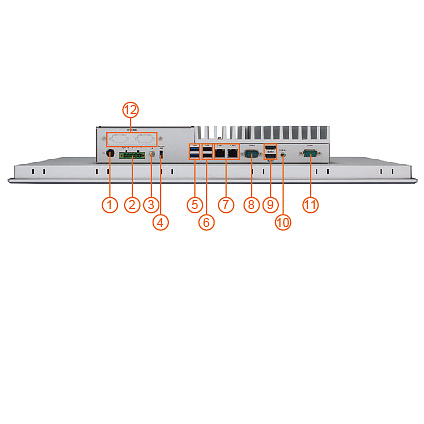

- 2 x COM, 1 x 2.5GbE LAN, 1 x GbE LAN, 2 x USB 3.2, 2 x USB 2.0
- 1 x Flexible I/O window, Supporting COM3, and DIO (Optional)
- Supports WLAN Module and Antenna (optional)
- Supports Panel Mount, Wall Mount, VESA Arm, and Desktop Stand
- Flat Front Panel Touch Screen, IP65 Front Bezel
The GOT321B-ADL-WCD is a sleek and high-performance 21.5" panel computer equipped with a Full HD TFT LCD offering 400 nits of brightness and a 10-point projected capacitive (PCAP) multi-touch panel for smooth and intuitive interaction. It supports one 2.5" SATA HDD/SSD for storage and features dual HDMI outputs for connecting a second display. Designed for flexibility, it includes a customizable I/O window with optional COM3 and DIO support, along with 4 USB and 2 COM ports. The system also supports optional WLAN modules and antennas, and offers versatile mounting options including panel, VESA, desktop stand, and wall mount. Built to perform in demanding environments, it operates reliably within a wide temperature range of -10°C to +50°C.
Barebone & Base Configurations
- 21.5" 1920x1080 400 nits TFT LCD w/ Projected Capacitive Multi-touch Screen
- Intel Pentium Gold G7400T Processor (6M Cache, 3.10 GHz)
- Up to 14th/13th/12th gen Intel Core i9/i7/i5/i3 or Pentium processor
- 8GB DDR4 SO-DIMM Memory
- 480GB 2.5" SATA Hard Drive
- 1 x RS-232/422/485 (DB9), 1 x RS-232 (DB9)
- 2 x USB 3.2, 2 x USB 2.0 Ports
- TPM 2.0
- 2 x HDMI
- 1 x PCI Express Mini Card (USB+PCIe signal+nano SIM slot “LTE”)
- 1 x M.2 Key E 2230 with PCIe x1 and USB 2.0
- 1 x 2.5GbE LAN, 1 x GbE LAN
- 10 ~36VDC Terminal Block Power Connector
