GOT5103W-845 10.1" Wide Screen Fanless Panel PC


  • 10.1" WXGA Wide Screen TFT LCD Dsplay with LED Backlight, Projected Capacitive Multi-Touch
  • Fanless design with Intel® Celeron® N3060 processor or Intel® Pentium® N3710 processor
  • Supports mSATA & Half-slim SATA SSD (Optional)
  • Supports WLAN/3G Module & Antenna (Optional)

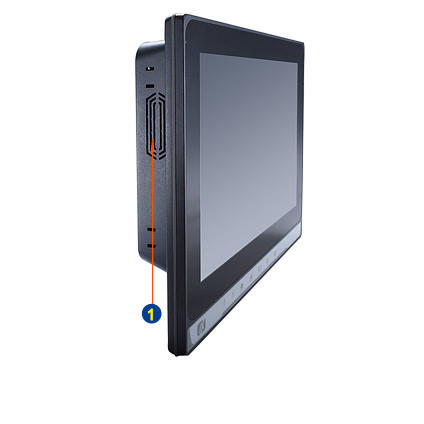

  • Supports 2x Gigabit LAN, 4x USB, 2x COM Ports, 2W Speakers and Optional Mic-in

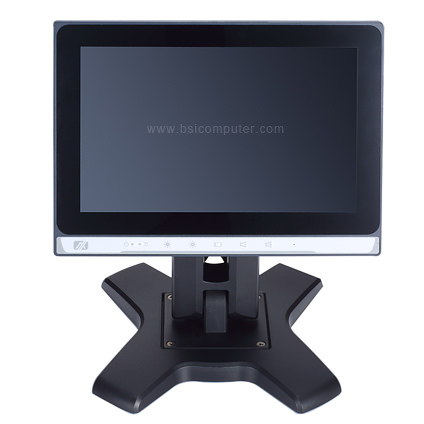

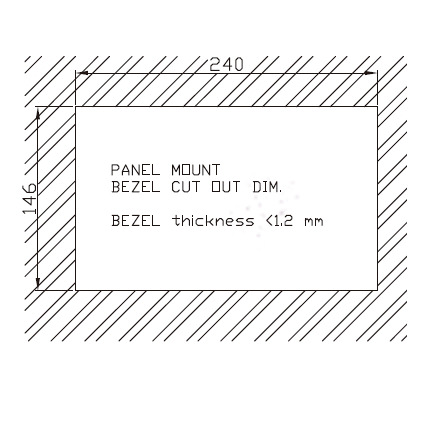

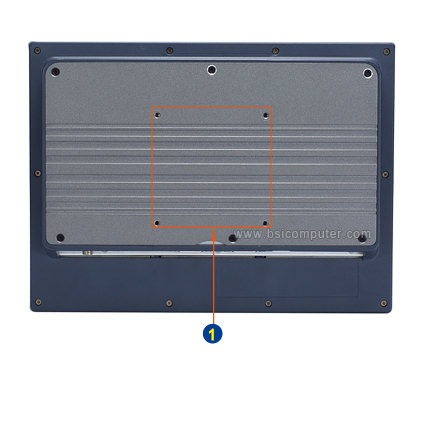

  • Supports Panel Mount, VESA Arm, Desktop Stand and Wall Mount (Optional)
  • IP65 Front Bezel and IPX1 Full Enclosure Design
  • Supports External AT/ATX Mode Selection Switch

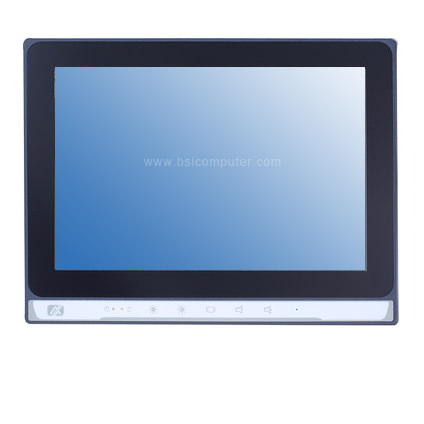

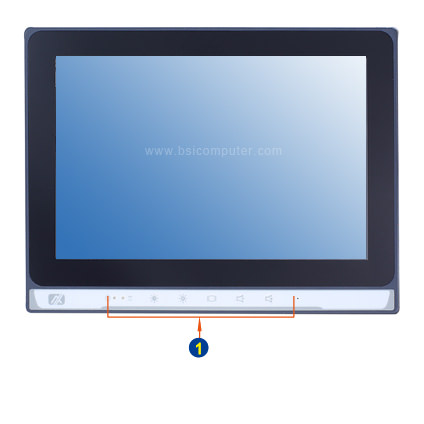

The GOT5103W-845 is a fan-less Touch Panel PC with a 10.1" WXGA TFT LCD and a resolution of 1280 x 800 pixels. The touch screen is projected capacitive multi-touch and is surrounded by an IP65 front bezel. The dimensions of this Touch Panel PC are 10.27" x 1.50" x 7.65" but can accommodate one full-size PCI express mini card with mSATA supported and one full-size PCI express mini card with SIM slot. The processor is the Intel Celeron N3060 up to 2.48 GHz, or or Intel® Pentium® N3710 up to 2.56GHz and a single 204-pin SO-DIMM slot can use up to 8GB.

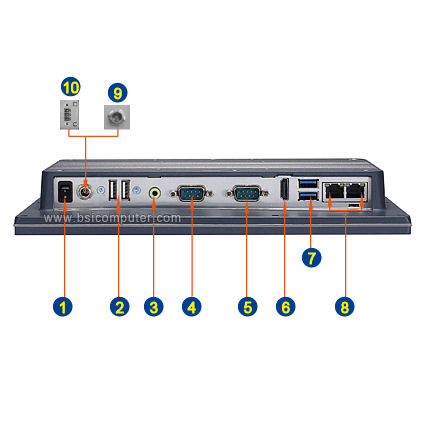

An optional half-slim SATA SSD is available as well as an mSATA. The GOT5103W-845 has two RS-232 DB9 COM ports (one accommodates 422/485), two USB 2.0 and two USB 3.0. The two Intel i211AT Ethernet ports provide speeds of 10/100/1000Mbps. An HDMI port gives you the option for a second monitor. As for the power profiles, there are three to choose from. AC version (100~240V with an AC-DC 60W power adapter), DC version (9-36VDC with over current protection fuse and DC version II (24VDC over current protection fuse). The GOT5103W-845 supports several mounting options such as Panel mount, Wall mount, VESA arm and Desktop stand.

Barebone & Base Configurations

GOT5103W-845 Fanless Panel PC

  • Fanless Touch Panel PC
  • 10.1" 1280 x 800 350 nits LED Backlight Panel w/ Projected Capacitive Multi-Touch
  • Intel® Celeron® Processor N3060 (2M Cache, up to 2.48 GHz)
    Intel® Pentium® Processor N3710 (2M Cache, 1.60 GHz) (Optional)
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 128GB SATA III 6Gb/s mSATA Solid State Drive
  • 2 x USB2.0, 2 x USB3.0
  • 1 x RS-232, 1 x RS-232/422/485 (Default RS-232) (DB9)
  • 1 x Full Size PCIe Mini Card Slot with SIM Slot
  • 1 x Full Size PCIe Mini Card Slot with mSATA Supported
  • 2 x Gigabit Ethernet LAN
  • Wireless Module (Optional)
  • DC Version: 24VDC Terminal Block Connector w/ Over Current Protection Fuse
  • AC Version: 60W 100-240V AC-DC Power Adapter w/ Screw Type Connector (Optional)

Barebone Only:
