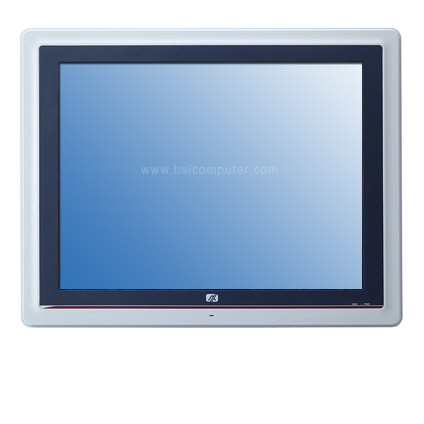

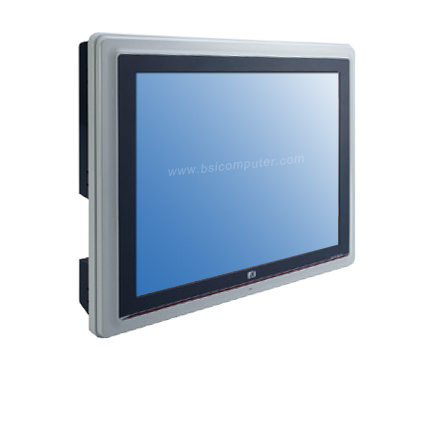

GOT5152T-845 15" Fanless Panel PC

Features:

  • 15" 1024 x 768 XGA TFT LCD Display with LED Backlight, 450nits Brightness
  • Fanless Design with Intel® Celeron® N3060 1.6 GHz Processor (up to 2.48 GHz)
  • Supports 2.5" SATA SSD and mSATA Easy Access Storage Design
  • Supports WLAN Module & Internal Antenna
  • 2x Gigabit LANs, 4x USB and 2x COM Ports
  • Supports 2x PCIe Mini Card Slots for Easy for Expansion
  • Supports RFID (Optional)
  • Supports Panel Mount, Wall Mount, VESA Arm, Desktop Stand (Optional)
  • Plastic and IP65-Rated Front Bezel


The GOT5152T-845 is a Fan-less Touch Panel PC with a 15" XGA TFT LCD, LED backlight at 450 nits and a resolution of 1024 x 768. It supports an Intel Celeron processor N3060 2 cores (up to 2.48 GHz) and up to 8GB DDRL SO-DIMM. A NEMA 4 IP65 plastic front bezel provides rugged protection and houses the 5-wire resistive touch screen. There are a 2.5" SATA HDD, mSATA and a full-size PCI Express Mini Card available. Two versions are available. The DC version accepts 24VDC with an over current protection fuse and the AC version uses a 60W power adapter that accepts 100 ~ 240 VAC-DC.

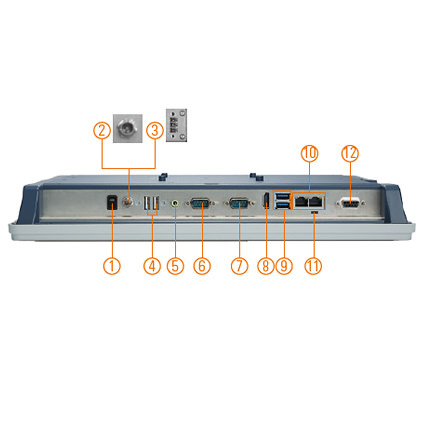

An 8-bit DIO programmable DB9 port is standard on the GOT5152T-845 as well as an RS-232, a selectable RS-232-422-485 (default RS-232), two USB 2.0, two USB 3.0 and two 10/100/1000 Mbps. An HDMI ports provides external display. The GOT5152T-845 can be used with a Panel mount, Wall mount, VESA arm and Desktop stand.

Barebone & Base Configurations

GOT5152T-845 Fanless Touch Panel PC

  • 15" 1024 x 768 XGA 450 nits TFT LCD with LED Backlight Touchscreen
  • Intel® Celeron® N3060 1.6 GHz Processor
  • 2GB DDR3L SO-DIMM Memory (1x2GB)
  • 480GB 2.5" SATA Solid State Drive
  • 2 x USB3.0, 2 x USB2.0
  • 1 x RS-232(DB9), 1 x RS-232/422/485 (DB9)
  • 2 x Gigabit Ethernet
  • 8-bit DIO (Programmable, DB9)
  • 2x PCIe Mini Card Slot
  • Wireless Module (Optional)
  • DC Version: 24VDC Terminal Block Connector w/ Over Current Protection Fuse
  • AC Version: 60W 100-240V AC-DC Power Adapter w/ Screw Type Connector (Optional)

Barebone Only:

$855.00

Configured:

$949.00

Customize
