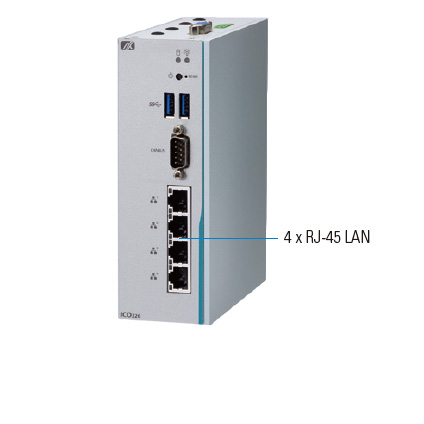

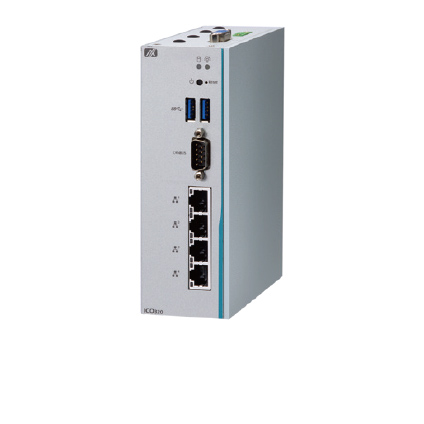

ICO320-83C Robust DIN-rail Fanless Embedded PC System

Features:

    Cost-effective with Fanless and Cableless Design
  • Intel® Celeron® N3350 Processor
  • 1 x DDR3L SO-DIMM Slot, (Max. 8GB)
  • 4 x RJ-45 GbE Ports, Optional PoE GbE
  • 8-bit Programmable DIO for IoT Gateway Applications (Optional)
  • OVP, UVP, OCP, RPP Power Protection Design
  • AXView 2.0 Intelligent Embedded Monitoring Software for IIoT
  • 12 ~ 24 VDC Wide Range Power Input
  • Wide Operating Temperature Range -40°F to 158°F

The ICO320-83C is a Fan-less Embedded Computer that supports the Intel Celeron processor N3350 (1.1 GHz, Dual Core). It can use up to 8GB of SO-DIMM DDR3L memory and is powered by 12 ~ 24VDC. The ICO320-83C has an IP40 rating and is constructed of Aluminum extrusion and heavy-duty steel. The dimensions are 3.11" x 4.33" x 6.1" and its operating temperature (with SSD is -40°F ~ +140°F). There is a full-size PCI Express Mini Card slot and a half-size PCI Express Mini Card slot along with a SIM socket and a half-size mSATA.

The ICO320-83C has an I/O interface consisting of one selectable RS-232/422/485 DB9, one DB9 RS-232/422/485 or 1 x CANbus 2.0 A/B. There is also USB 3.0 ports and four RJ-45 GbE ports. A single DI/DO (8-bit programmable, DB9 female connector) is standard as well as a 15-pin VGA out. A CAN 2.0 A/B (DB9 connector) is optional. The ICO320-83C can be mounted in a DIN rail or Wall Mount.

Barebone & Base Configurations

ICO320-83C Robust Din-rail Fanless Embedded Computer
ICO320-83C Robust Din-rail Fanless Embedded Computer

  • Intel® Celeron® N3350 Processor (1.1 GHz, Dual Core)
  • 2GB DDR3L SO-DIMM Memory
  • 480GB 2.5" SATA Solid State Drive
  • 1 x RS-232/422/485 (DB-9), 1 x CAN 2.0 A/B
  • 1 x DIO (DB-9, 8 bit Programmable)
  • 1 x Half-size Rev.1.2 PCI Express Mini Card slot: mSATA/USB/PCIe
    1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB/PCIe with SIM socket
  • TPM 2.0
  • 2 x USB 3.0
  • Built-in Video
  • 4 x GbE LAN Ports, Optional 4 x PoE GbE LAN Ports
  • 12-24V DC Terminal Block Power Connector

Barebone Only:

 $539.00

Configured:

$639.00

Customize

ICO320-CSTD-1 Robust Din-rail Fanless Embedded Computer
ICO320-CSTD-1 Robust Din-rail Fanless Embedded Computer

  • Intel® Celeron® N3350 Processor (1.1 GHz, Dual Core)
  • 2GB DDR3L SO-DIMM Memory
  • 480GB 2.5" SATA Solid State Drive
  • 2 x RS-232/422/485 (DB-9)
  • 1 x DIO (DB-9, 8 bit Programmable)
  • 1 x Half-size Rev.1.2 PCI Express Mini Card slot: mSATA/USB/PCIe
    1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB/PCIe with SIM socket
  • TPM 2.0
  • 2 x USB 3.0
  • Built-in Video
  • 4 x GbE LAN Ports
  • 12-24V DC Terminal Block Power Connector

Barebone Only:

 $515.00

Configured:

$615.00

Customize
