IPC950 Industrial Embedded PC with Intel® Core™ i7/i5/i3 & Celeron® Processor
Features:
- Intel® Core® i7-1185G7E/i5-1145G7E/i3-1115G4E & Intel® Celeron® 6305E processor (Tiger Lake U), 15W
- 2 x DDR4 SO-DIMM, (Max. 64GB)
- Flexible I/O module for further expansion
- M.2 Key E socket for wireless connection
- 2 DisplayPort
- Supports TPM 2.0
- Supports Intel® iAMT

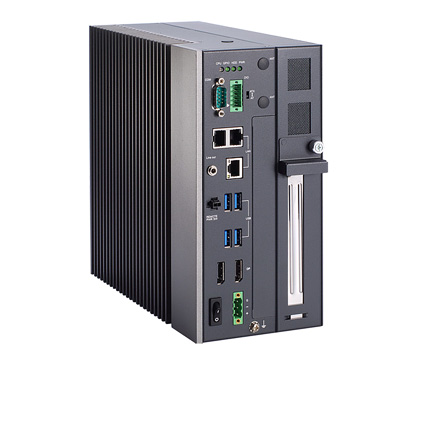

- Optional 1 PCIe x4 Slot Expansion Kit
- Optional DIN-rail, Bookshelf and Wall Mount
The IPC 950 is an industrial PC that operates with an SoC integrated chipset and is built with an LGA1200 processor socket which can support the 11th generation intel core and celeron processors from i3 to i7. For RAM, the board supports dual channel DDR4 DIMM 3200 MHz memory up to a maximum capacity of 64 GB. The board’s I/O interface is constructed with two display ports for display each capable of a 4k resolution at 60Hz refresh rate. The I/O interface provided also provides users with access to four type A USB 3.1 ports, one 2.5GbE LAN I225-LM Ethernet port and two I211 LAN ports. Due to the flexibility of the I/O interface, the user can also add additional LAN ports if necessary.
Barebone & Base Configurations
- 11th Gen Intel® Processor
- 8GB DDR4 SO-DIMM Memory
- 480GB 2.5" SATA Solid State Drive
- 1x RS-232/422/485 (DB-9)
- 4x USB3.1
- TPM2.0
- Programmable 8CH DIO
- Built-in 2x DisplayPort
- Built-in 2x Gigabit LAN, 1x 2.5GbE LAN
- 24VDC Power Connector
- 11th Gen Intel® Processor
- 8GB DDR4 SO-DIMM Memory
- 480GB 2.5" SATA Solid State Drive
- 1x RS-232/422/485 (DB-9)
- 4x USB3.1
- TPM2.0
- Programmable 8CH DIO

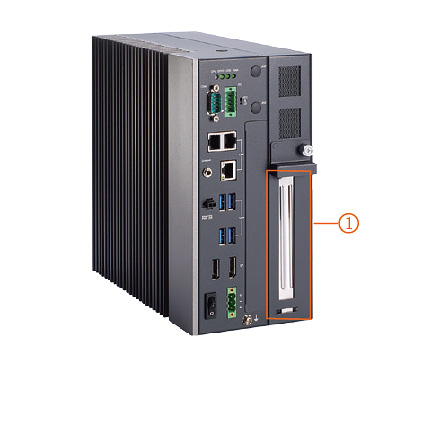

- 1x PCIe x4 Expansion Slot
- Built-in 2x DisplayPort
- Built-in 2x Gigabit LAN, 1x 2.5GbE LAN
- 24VDC Power Connector
- EIO110 (w/100W power for add-in card)
