IPC960A Industrial Embedded PC with 12th/13th Gen Intel Core i7/i5/i3 or Celeron Processor


  • 12th/13th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor
  • Intel®H610E/Q670E Chipset
  • 2 x DDR5 SO-DIMM, (Max. 64GB)
  • 2 x 2.5" HDD/SSD bay (7/9.5/15 mm height)
  • 1 x M.2 Key M 2280 socket (PCIe x4 Gen4)
  • Optional extension system I/O module
  • Intelligent power management: Ignition, USB power on/off control
  • Optional 5G network (Q670E)
  • Supports Intel RAID (Q670E)
  • EN61000-6-2 certified
  • Optional DIN-rail, Bookshelf and Wall Mount

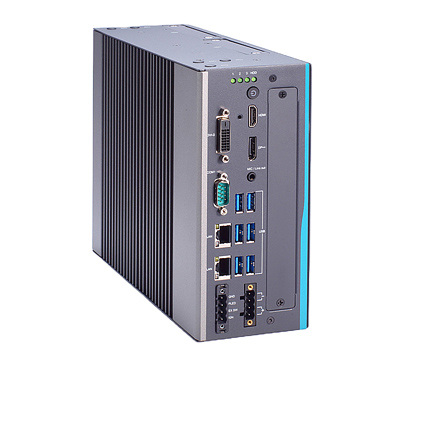

The IPC960A fanless industrial system is a versatile and robust solution tailored to meet demanding industrial requirements. With an optional extension system I/O module, it offers enhanced flexibility in connectivity, catering to diverse application needs. Additionally, it provides an optional 5G network capability (Q670E), ensuring high-speed and reliable wireless communication for modern industrial environments. Featuring intelligent power management functionalities such as Ignition and USB power on/off control, it optimizes power usage and enhances system efficiency. The IPC960A also supports Intel RAID (Q670E), ensuring data integrity and reliability in storage operations. Certified with EN61000-6-2, it adheres to stringent industrial standards for electromagnetic compatibility. Moreover, it offers optional DIN-rail, bookshelf, and wall mount kits, facilitating easy and flexible installation in various environments.

Barebone & Base Configurations

IPC960A Fanless Embedded PC

  • Intel® Celeron® Processor G6900T (4M Cache, 2.80 GHz)
  • 8GB DDR5 SO-DIMM Memory
  • 250GB M.2 NVME Solid State Drive
  • 1 x RS-232/422/485 (DB-9)
  • 6 x USB 3.2 Gen2x1 (10G) type A, 1 x USB 2.0 (Internal, up to 30mm) 180D type A
  • TPM2.0
  • 1 x DVI-D, 1 x HDMI, 1 x DisplayPort
  • Built-in 1 x Gigabit LAN, 1 x 2.5GbE LAN
  • 18-36 VDC Power Input
  • 120W Wire Power Adapter (Optional)
    230W Wire Power Adapter (Optional)

Barebone Only:
