IPC962-512-FL Fanless Embedded PC 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, PCIe and PCI Slots

Features:

  • 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor
  • LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, up to 35 W (Codename: Kaby Lake/Skylake)
  • 2x DDR4-2133/2400 un-Buffered SO-DIMM (Max. 32GB)
  • Intel® Q170 Chipset
  • 2x Swappable 2.5" HDD
  • 2x Expansion Slots
  • Supports TPM2.0 Optional
  • Power Input: 24VDC (uMin=19V/uMax=30V)
  • Compact & Front I/O Design
  • 14°F to +122°F Wide Operating Temperature Range with W.T. SSD
  • Supports Optional WLAN Module & Antenna

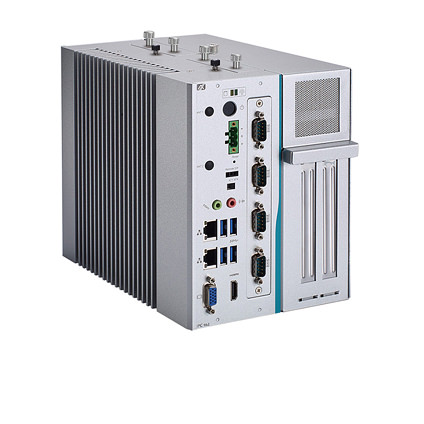

The IPC962-512-FL is a Fan-less Embedded PC, which supports Intel's 7th and 6th generation Intel Core i7/i5/i3 & Celeron processor up to 35W and a maximum of 32GB DDR4-2133 memory. It is constructed out of aluminum extrusion heavy-duty cold-rolled steel and with out the fan module is rated at IP40. The measurement of the IPC962-512-FL is 5.80" x 7.54" x 9.04" and the weight is just under 10lbs. For internal expansions, there are many options to choose, such as 1 PCIe x16 Gen. 3 + 1 PCIe x4 Gen. 3, 1 PCIe x16 Gen. 3 + 1 PCI, 2 PCI or one full-size PCI Express Mini Card slot with USB & PCIe interface. As for data storage, there are two swappable 2.5" SATA HDD with support for RAID 0, 1.

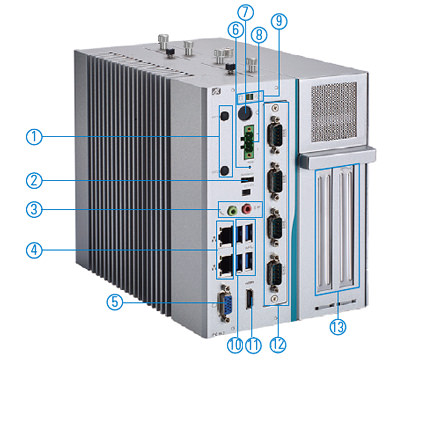

The IPC962-512-FL comes with four optional RS-232/422/485 module (default RS-232) or two RS-232/422/485 w/ isolated 1.5KVDC protection and an 8-in/8-out w/ isolated 1.5KVDC DIO module. There are also four USB 3.0, two 10/100/1000 Mbps Ethernet, one HDMI and one VGA.

Barebone & Base Configurations

IPC962-512-FL Fanless Embedded PC

  • Intel® Pentium® Processor G4400T (3M Cache, 2.90 GHz)
  • Up to Intel® Core™ i7 Processor (Optional)
  • 4GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 4x RS-232/422/485 (DB-9) (Optional)
  • 4x USB3.0 Ports
  • TPM2.0 (Optional)
  • 1x PCIe x16 + 1x PCIe x4; or 1x PCIe x16 + 1x PCI; or 2x PCI (Optional)
  • 1x Full-size PCI Express Mini Card Slot with USB Interface
  • Built-in VGA and HDMI
  • Built-in 2x Gigabit LAN
  • 24VDC Power Connector
  • 120W Power Adapter with 2 Bare Wires (Optional)

Barebone Only:

$825.00

Configured:

$1,025.00

Customize
