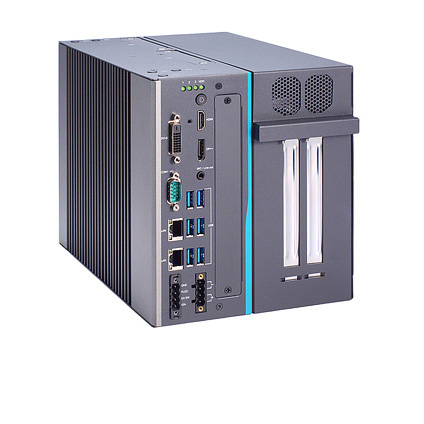

IPC962A Industrial Embedded PC with 12th/13th Gen Intel Core i7/i5/i3 or Celeron Processor, and 2 PCIe & PCI Slots


  • 12th/13th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor
  • Intel®H610E/Q670E Chipset
  • 2 x DDR5 SO-DIMM, (Max. 64GB)
  • 2 x 2.5" HDD/SSD bay (7/9.5/15 mm height)
  • 1 x M.2 Key M 2280 socket (PCIe x4 Gen4)
  • Intelligent power management: Ignition, USB power on/off control
  • Optional 5G network (Q670E)
  • Supports Intel RAID (Q670E)
  • Optional extension system I/O module
  • EN61000-6-2 certified

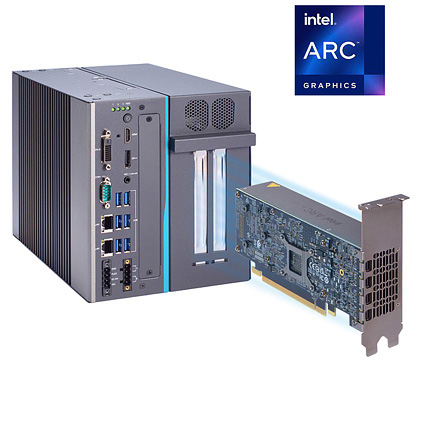

The IPC962A 2-slot industrial system is a versatile and reliable solution designed to meet the demands of industrial applications. Equipped with intelligent power management features including Ignition and USB power on/off control, it ensures efficient power usage and system reliability. The optional extension system I/O module enhances connectivity options, catering to diverse application needs. Additionally, it offers optional 5G network capabilities (Q670E) for high-speed and reliable wireless communication. Supporting Intel RAID (Q670E), it ensures data integrity and reliability in storage operations. The IPC962A also supports Intel® Arc™ Pro A50 Graphics, delivering enhanced visual performance for graphics-intensive applications. Certified with EN61000-6-2, it adheres to strict industrial standards for electromagnetic compatibility.

Barebone & Base Configurations

IPC962A Industrial Embedded PC

  • Intel® Celeron® Processor G6900T (4M Cache, 2.80 GHz)
  • 8GB DDR5 SO-DIMM Memory
  • 250GB M.2 NVME Solid State Drive
  • 1 x RS-232/422/485 (DB-9)
  • 6 x USB 3.2 Gen2x1 (10G) type A, 1 x USB 2.0 (Internal, up to 30mm) 180D type A
  • TPM2.0
  • 1 x DVI-D, 1 x HDMI, 1 x DisplayPort
  • Built-in 1 x Gigabit LAN, 1 x 2.5GbE LAN
  • Extension: 1 x PCIe 4.0 x16 + 1 x PCIe 4.0 x8 (x4 signal) or 1x PCIe 4.0 x16 + 1 PCI (Optional)

  • 18-36 VDC Power Input
  • 230W Wire Power Adapter (Optional)
    500W 24V AC/DC power PSU w/ US power cord (Optional)

Barebone Only:
