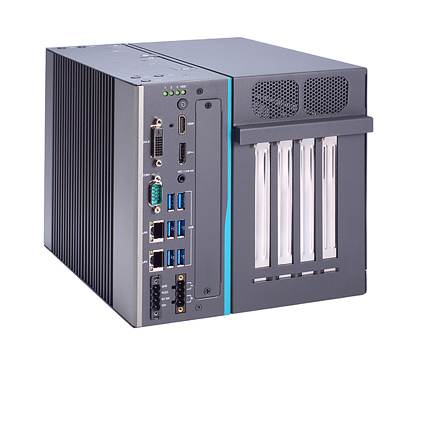

IPC964A Industrial Embedded PC with 12th/13th Gen Intel Core i7/i5/i3 or Celeron Processor, and 4 PCIe & PCI Slots


  • 12th/13th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor
  • Intel® Q670E Chipset
  • 2 x DDR5 SO-DIMM, (Max. 64GB)
  • 2 x 2.5" HDD/SSD bay (7/9.5/15 mm height)
  • 1 x M.2 Key M 2280 socket (PCIe x4 Gen4)
  • Intelligent power management: Ignition, USB power on/off control
  • Optional 5G network
  • Supports Intel RAID
  • Optional extension system I/O module
  • EN61000-6-2 certified

The IPC964A 4-slot industrial system is a reliable and versatile solution tailored to meet the demands of industrial environments. Featuring intelligent power management functionalities such as Ignition and USB power on/off control, it ensures efficient power usage and system reliability. With an optional extension system I/O module, it provides enhanced connectivity options to accommodate diverse application requirements. Additionally, the optional inclusion of a 5G network capability offers high-speed and reliable wireless communication, ideal for modern industrial settings. Supporting Intel RAID, the IPC964A ensures data integrity and reliability in storage operations. Certified with EN61000-6-2, it adheres to stringent industrial standards for electromagnetic compatibility, ensuring robust performance in challenging environments.

Barebone & Base Configurations

IPC964A Industrial Embedded PC

  • Intel® Celeron® Processor G6900T (4M Cache, 2.80 GHz)
  • 8GB DDR5 SO-DIMM Memory
  • 250GB M.2 NVME Solid State Drive
  • Extension Interface: UP to 350W power for add-in card, 1 x USB 2.0 (180D type A)
    EIO141: 1 x PCIe x16 Gen4 + 1 x PCIe x8 (x4 signal) Gen3 + 2 x PCIe x4 Gen4
    EIO142: 1 x PCIe x16 Gen4 + 1 x PCIe x4 Gen4 + 2 x PCI (Optional)
  • 1 x RS-232/422/485 (DB-9)
  • 6 x USB 3.2 Gen2x1 (10G) type A, 1 x USB 2.0 (Internal, up to 30mm) 180D type A
  • TPM2.0
  • 1 x DVI-D, 1 x HDMI, 1 x DisplayPort
  • Built-in 1 x Gigabit LAN, 1 x 2.5GbE LAN
  • 18-36 VDC Power Input
  • 230W Wire Power Adapter (Optional)
    500W 24V AC/DC power PSU w/ US power cord (Optional)

Barebone Only:
