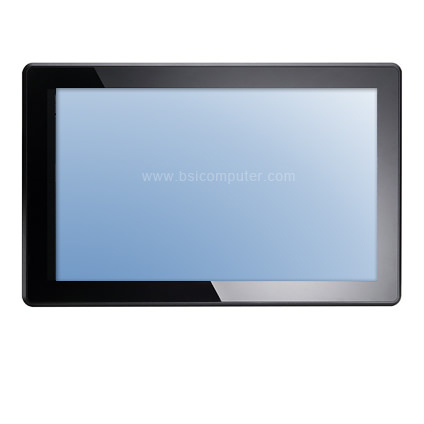

P6157W-V3 15.6" Widescreen Industrial LCD Monitor


  • 15.6" WXGA TFT 400 nits with Projective Capacitive Multi-touch
  • NEMA 4/12 (IP65) Compliant Flat Panel Monitor
  • Full Fange Screw-type (Locked) AC-in or 24V DC-in (Optional)

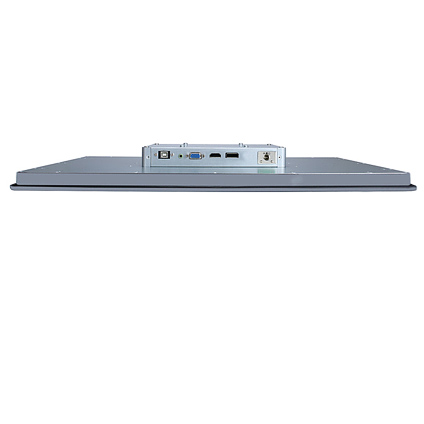

  • Supports Multi-signal Inputs: VGA, DisplayPort, HDMI
  • Supports Panel mount, Wall mount, VESA mount

The P6157W-V3 is a slim-type industrial LCD monitor with flat front bezel design, which adopts 15.6-inch 400 nits WXGA LCD display and supports multi-signal interfaces including DisplayPort, VGA, and HDMI. Featuring IP65 (NEMA 4)-rated front bezel, screw-type adaptor plug design, and 12/24V DC-in , the 15.6-inch P6157W-V3 is designed to fit for all kinds of industrial environments. Moreover, the P6157W-V3 supports panel mount, wall mount or VESA FPMPMI (Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, the P6157W-V3 can be deployed easily in any space-limited place. It is especially suitable for POI/POS, HMI, and all kinds of heavy-duty industrial fields.

Base Configurations

P6157W-V3 15.6" Industrial LCD Monitor

  • 15.6" 1366x768 TFT LCD w/ LED Backlight
  • 400nits Brightness, 500:1 Contrast Ratio
  • Projective Capacitive Touch Screen
  • 16.7M Colors
  • View Angle: 170°H/160°V
  • Input: VGA, DisplayPort, HDMI
  • Power: Screw-type external AC/DC power adapter (Optional)
  • Operating Temp: 32°F-122°F (0°C-50°C)
  • Dimensions: 15.62" x 9.73" x 2.13" (WxHxD)
