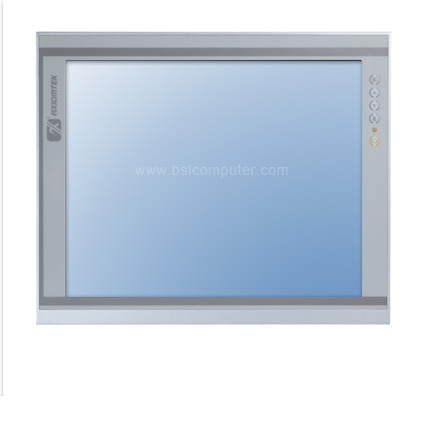

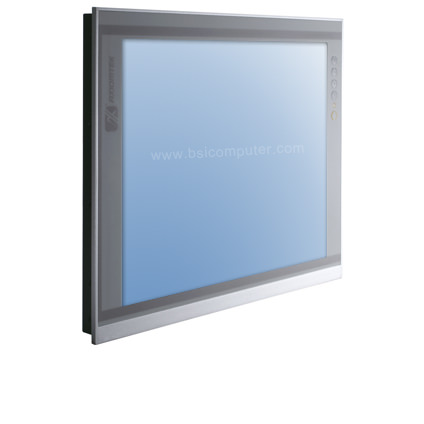

P6171-V3 17" SXGA TFT Industrial LCD Monitor


  • 17" TFT SXGA LED backlight LCD
  • NEMA 4/12 (IP65)- compliant panel mounting flat panel monitor
  • Resistive touchscreen
  • Supports full range screw-type (locked) AC-in or 12V/24V DC-in (option)

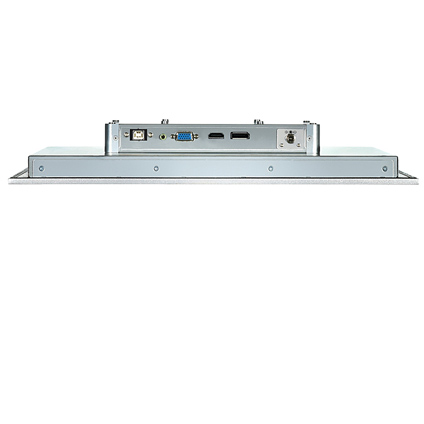

  • Supports multi-signal inputs: VGA, DisplayPort and HDMI

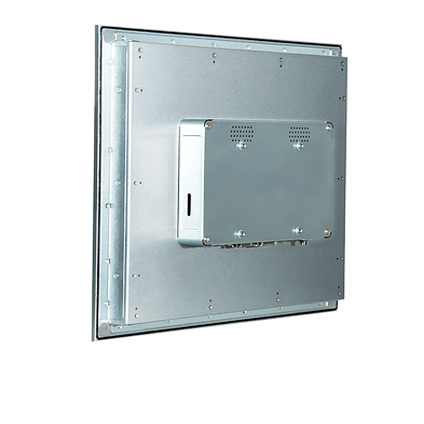

  • Supports panel mount, wall mount, rackmount and VESA arm

The P6171-V3 is an ultra slim industrial LCD monitor, which adopts 17-inch 250 nits SXGA LED backlight LCD display and supports multi-signal interfaces including VGA, DisplayPort, and HDMI. Featuring NEMA 4/12 and IP65 compliant front bezel, screw-type adaptor plug design, and 12/24V DC-in means it is fit for all kinds of industrial environments. Moreover, the P6171-V3 supports panel mount, wall mount, rack mount or VESA FPMPMI (Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, users can enjoy free from space constraint. It is especially suitable for POI/POS, excellent HMI, and all kinds of heavy-duty industrial fields.

Base Configurations

P6171-V3 17" Industrial LCD Monitor

  • 17" 1280x1024 TFT LCD
  • 250nits Brightness, 1000:1 Contrast Ratio
  • Resistive touchscreen
  • 16.2M Colors
  • View Angle: 170°H/160°V
  • Input: VGA, DisplayPort, HDMI
  • AC version: 100 - 240 VAC-DC 12V3A, 36W power adapter
  • DC version: 24 VDC (Optional)
  • Operating Temp: 32°F-113°F (0°C-45°C)
  • Dimensions: 16.15" x 13.32" x 2.28" (WxHxD)
