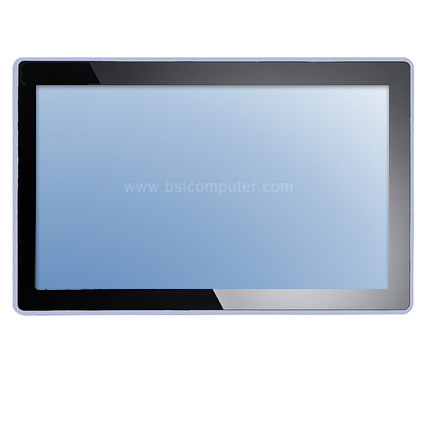

P6217W-V3 21.5" Full HD TFT Widescreen Industrial LCD Monitor


  • 21.5" TFT 250 nits FHD TFT LCD
  • NEMA 4/12 (IP65) compliant flat panel monitor
  • Projective capacitive multi-touch
  • Full range screw-type (locked) AC-in or 24V DC-in (optional)

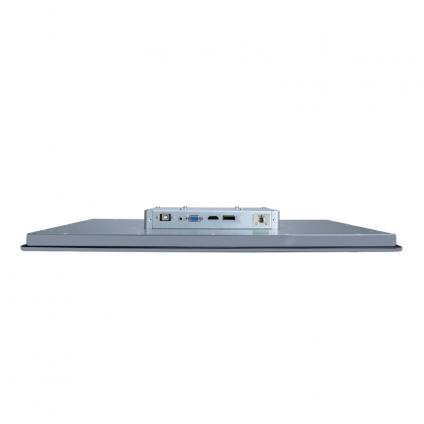

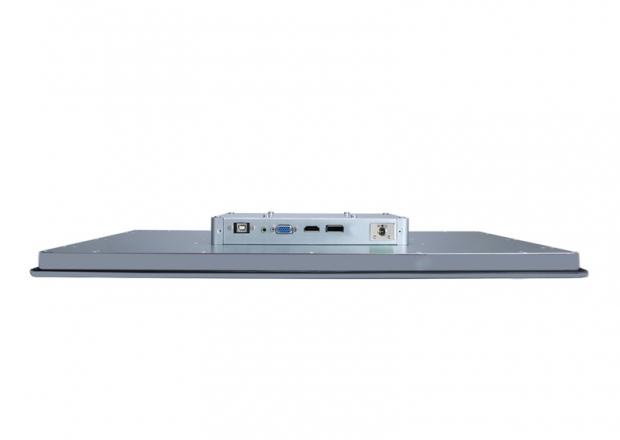

  • Supports multi-signal inputs: VGA, HDMI and DisplayPort
  • Supports panel mount, wall mount, VESA mount

The P6217W-V3 is a slim-type industrial LCD monitor with flat front bezel design, which adopts 21.5-inch 250 nits full HD LCD display and supports multi-signal interfaces including DisplayPort, VGA, and HDMI. Featuring IP65 (NEMA 4)-rated front bezel, screw-type adaptor plug design, and 12/24V DC-in, the 21.5-inch P6217W-V3 is designed to fit for all kinds of industrial environments. Moreover, the P6217W-V3 supports panel mount, wall mount or VESA FPMPMI (Video Electronics Standards Association Flat Panel Monitor Physical Mounting Interface) mounting. With the compact mechanism design, the P6217W can be deployed easily in any space-limited place. It is especially suitable for POI/POS, HMI, and all kinds of heavy-duty industrial fields.

Base Configurations

P6217W-V3 21.5" Full HD Industrial LCD Monitor

  • 21.5" 1920 x 1080 TFT LCD w/ LED Backlight Projective Capacitive Touch Screen
  • 250nits Brightness, 1000:1 Contrast Ratio
  • 16.7M Colors
  • View Angle: 178°H/178°V
  • Input: VGA, HDMI and DisplayPort
  • Power: Screw-type external AC/DC power adapter (Optional)
  • Operating Temp: 32°F-122°F (0°C-50°C)
  • Dimensions: 21.56" x 13.35" x 2.07" (WxHxD)
