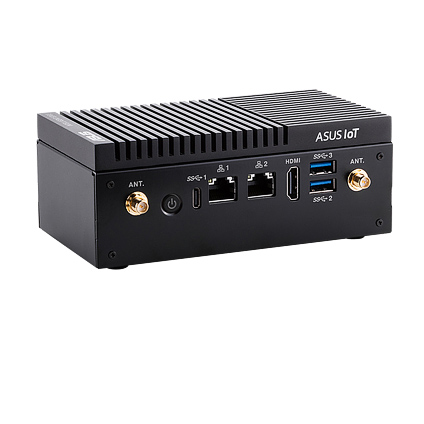

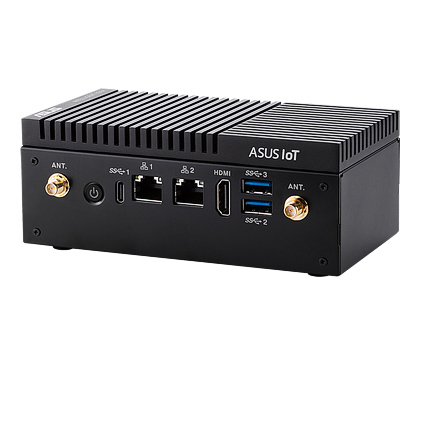

ASUS PE100A Fanless Embedded System

Features:

  • NXP i.MX 8M ARM Cortex-A53 Quad core, 1.3 GHz
  • 4 GB LPDDR4 Memory Onboard
  • 16GB Onboard eMMC, Mini-PCIe Slot for Storage Capacity
  • -4 °F to 140 °F Wide Range Operation Temperature
  • Certified with RF Regulation: CE-RED (LTE Module)
  • Support Windows 10 IoT Core and Linux Yocto OS
  • Compact Size Gateway with Low Power Consumption and Scalable Processor for Diverse IoT Applications

The ASUS PE100A Fanless Embedded PC is an intelligent edge computing solution powered by the low-power, scalable NXP i.MX 8M processor, designed for efficiency in demanding environments. It comes with 16GB of onboard eMMC storage and a Micro-SD card slot for additional capacity. The system supports both Windows 10 IoT Core and Linux Yocto OS, offering flexibility for various applications. With its wide temperature range of -20~60°C, the PE100A is well-suited for deployment in harsh conditions, making it ideal for embedded and edge computing use cases.

Base Configurations

ASUS PE100A Fanless Embedded PC
ASUS PE100A Fanless Embedded PC

  • NXP i.MX 8M ARM Cortex-A53 Quad core , 1.3 GHz Processor
  • 4 GB LPDDR4 Memory Onboard
  • 16GB eMMC

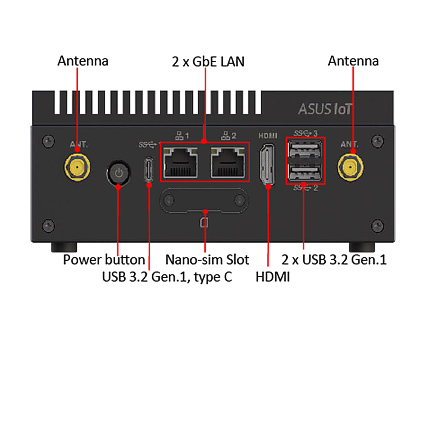

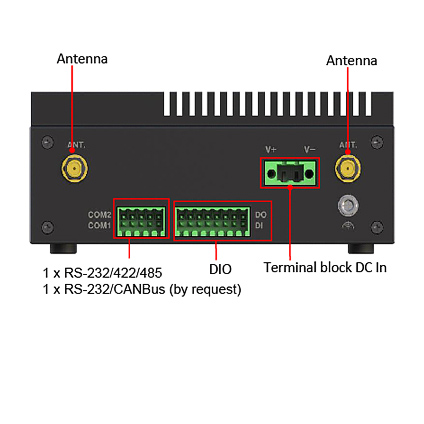

  • 1 x RS-232/CANBus (by request), 1 x RS-232/422/485 (2 x 5 Terminal Block)
  • 2 x USB 3.2 Gen.1 Type-A, 1 x USB 3.2 Gen.1 Type C Supports OTG
  • 1 x HDMI 2.0, Supports up to 3840 x 2160 @60Hz
  • Cooperate with TPM 2.0 Powered by Nuvoton NCPT 750 (Optional)
  • 2 x GbE LAN
  • 1 x Mini-PCIe Socket, Supports SATA or USB Signal for mSATA/LTE/Google TPU Module
  • 1 x M.2 2230 E Key Socket, Supports PCIe or USB Signal for Wi-Fi/BT
  • 1 x nano-SIM Slot
  • 12-24 VDC Terminal Block Power Connector

Configured:

$509.00

Customize
