ASUS PE3000G Rugged Embedded System with 12th Gen Intel Core Processors
Features:
- Support NVIDIA Ampere/Turing or Intel Arc A-series MXM GPU, for Varied Edge AI Computing
- 12th Gen Intel Core (Alder Lake-P, H) 45W CPU
- 2 x DDR5 SO-DIMM Memory (Max. 64GB)
- 2 x 2.5" Hot-swappable Drive Bays
- 1 x M.2 M key (NVMe), 1 x M.2 B key (4G/ 5G NR), 1 x M.2 E key (WiFi 6)
- 3 x 2.5 GbE and 1 x GbE Ports with PoE+ Support
- 8 to 48V Wide-range DC-in with Built-in Ignition Power Control
- MIL-STD-810H and withstand 5 Grms Vibration
- -4 °F to 140 °F Wide Range Operation Temperature

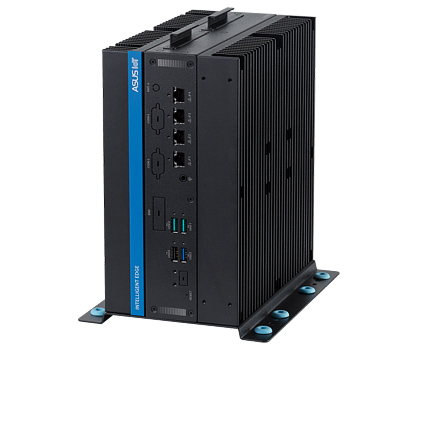

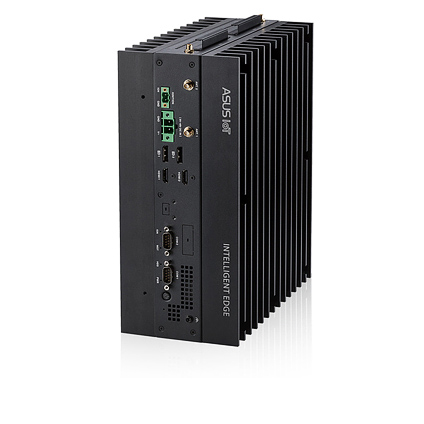

The ASUS PE3000G Rugged Embedded PC is a high-performance, fanless edge AI computer designed for demanding environments. It supports NVIDIA Ampere/Turing or Intel Arc A-series MXM GPUs, enabling powerful edge AI computing capabilities. Powered by a 12th Gen Intel Core (Alder Lake-P, H) 45W processor and up to 64GB of DDR5 4800 SDRAM, the PE3000G ensures robust performance. Its patented thermal design allows for reliable fanless operation in extreme conditions, with a temperature range of -20°C to 60°C. The system offers extensive connectivity, including 3x 2.5 GbE and 1x GbE ports with optional PoE+, as well as multiple M.2 expansion slots for NVMe storage, 4G/5G, and WiFi 6. Designed to withstand harsh conditions, it adheres to MIL-STD-810H standards and can endure 5 Grms of vibration. With a wide DC input range of 8~48V and built-in Ignition power control, the PE3000G is perfect for industrial and AI applications in rugged settings.
Barebone & Base Configurations
- Intel Core i5-12600HE Processor (18M Cache, up to 4.50 GHz)
- 8GB DDR5 SO-DIMM Memory
- 500GB M.2 Solid State Drive
- 2 x 2.5" Hot-swappable Drive Bays
- 2 x RS-232/422/485 (DB-9)
- 2 x HDMI 1.4, Supports up to 4096 x 2304 @ 30Hz
- 2 x DP ++, Supports up to 4096 x 2304 @ 60Hz
- 1 x PCIe 4.0 x8 Slot
- 1x M.2 2230 E-key for Selected WiFi Module (WiFi5/ WiFi6)
- 1x M.2 3042/3052 B-Key with SIM Slot Support5G/ 4G Module
- 1x Mini PCIe Socket, Full Size, Support Cellular Module
- 3 x USB 3.2 Gen 2, 1 x USB 2.0
- 8-48 VDC Terminal Block Power Connector
