ASUS PE4000G Rugged Embedded Edge AI GPU System

Features:

  • Intel 14th/13th/12th Gen Core CPU
  • Intel R680E Chipset
  • Support GPU Card up to 200W
  • 2 x DDR5 SO-DIMM Memory (Max. 64GB)
  • 2 x 2.5" Hot-swappable Drive Bays
  • 1 x M.2 M key, 1 x M.2 B key, 1 x M.2 E key
  • 1 x 2.5 GbE and 1 x GbE Ports with PoE Support
  • 8 to 48V Wide-range DC-in with Built-in Ignition Power Control
  • Comply with MIL-STD-810H

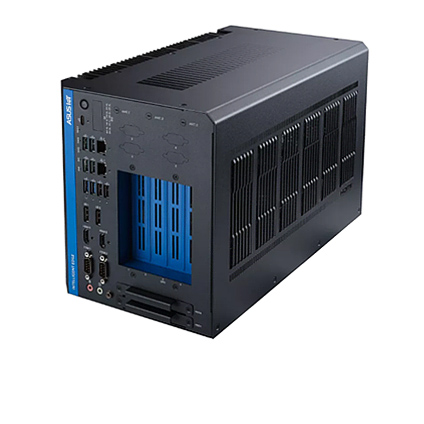

The ASUS PE4000G Embedded PC is a rugged, high-performance edge computing solution, designed to support demanding AI and GPU-intensive applications. Powered by 14th, 13th, or 12th Gen Intel Core processors with the Intel R680E chipset, it supports up to a 200W GPU for versatile graphics and AI computing capabilities. The system offers up to 64GB of ECC/non-ECC DDR5 4800 SDRAM and includes rich connectivity options, including USB 3.2 Gen 2x2 Type-C, eight USB Type-A ports, and multiple M.2 slots for NVMe storage, 4G/5G, and WiFi 6. With a wide operating temperature range of -20°C to 60°C and adherence to MIL-STD-810H standards, the PE4000G is built for resilience in rugged environments, making it ideal for industrial and AI applications.

Barebone & Base Configurations

ASUS PE4000G Fanless Embedded PC
ASUS PE4000G Fanless Embedded PC

  • Intel Core i7-12700E Processor (25M Cache, up to 4.80 GHz)
    Intel Core i9-12900E Processor (30M Cache, up to 5.00 GHz) (Optional)
  • 8GB DDR5 SO-DIMM Memory
  • 500GB M.2 Solid State Drive
  • 2 x 2.5" Hot-swappable Drive Bays
  • 2 x RS-232/422/485 (DB-9)
  • 2 x HDMI 1.4, Supports up to 4096 x 2160 @ 30Hz
  • 2 x DP 1.2, Supports up to 4096 x 2160 @ 60Hz, DP++
  • 4 x PCIe Slot (1 x PCIe x16 + 2 x PCIe x4 or 2 x PCIe x8 + 2 x PCIe x4 Auto-detect)
  • 1 x M.2 2230 E-key socket (support CNVi, Wi-Fi/BT Module)
  • 1 x 3042/3052 (support M.2 5G/ 4G module/ UDR GPS Module) Support dual nano SIM
  • 1 x Mini PCIe Socket (Support mSATA or Cellular Module) Support Single nanoSIM
  • 4 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 2 Type C, 2 x USB 3.2 Gen 1, 2 x USB 2.0
  • 8-48 VDC Terminal Block Power Connector

Barebone Only:

 $2,425.00

Configured:

$2,529.00

Customize
