Features:

• 14th/13th/12th Gen Intel Core i7/i5/i3 processors
• Intel R680E Chipset
• 2 x DDR5 ECC/non-ECC SO-DIMM Memory (Max. 64GB)

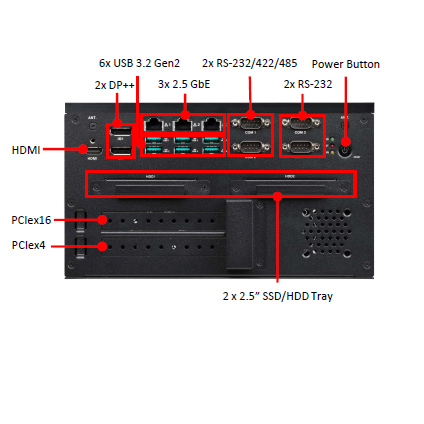

• Rich I/O with 3 x 2.5 GbE, 10 x USB, 6 x COM
• 2 x 2.5" Hot-swappable SSD/HDD Tray & RAID 0/1
• 1 x M.2 2280 M-key (PCIe Gen4x4)
• 1 x PCIe x16 & 1 x PCIe x4 Expansion Slots Support up to 200-watt Graphics Card

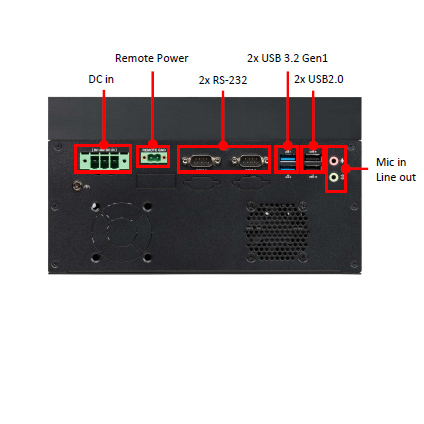

• 8 to 48V Wide-range DC-in w/ built-in Ignition Power Control
• -13 °F to 140 °F Wide Range Operation Temperature

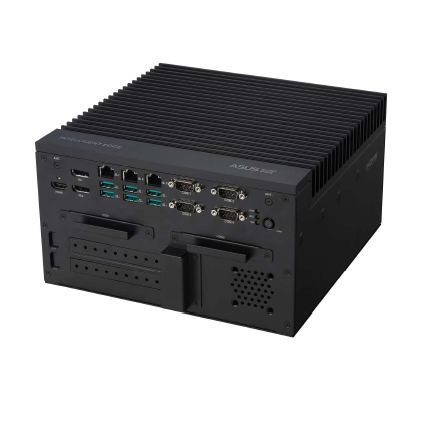

The ASUS PE5101D Rugged Embedded PC is a high-performance edge computing solution designed for industrial environments. It supports Intel 14th, 13th, and 12th Gen Core i processors with the R680E chipset, offering powerful processing capabilities. The system features dual 2.5" hot-swappable SSD/HDD trays with RAID 0/1 support for flexible storage options. It includes rich I/O connectivity with 3 x 2.5 GbE ports, 10 USB ports, and 6 COM ports, ensuring extensive peripheral support. Additionally, the PE5101D provides PCIe x16 and PCIe x4 expansion slots, supporting up to a 200W graphics card for demanding applications. With a wide DC input range of 8-48V and built-in ignition power control, as well as a wide operating temperature range of -25°C to 60°C, the PE5101D is engineered for resilience in harsh environments.
