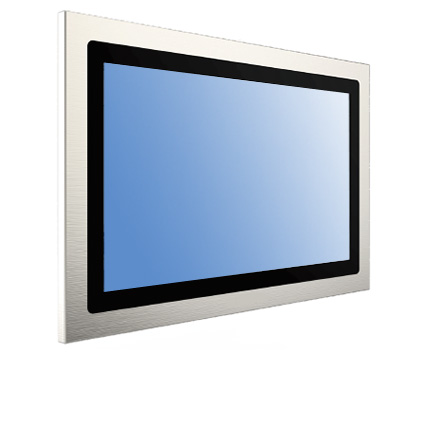

PMS2214 21.5" True-Flat Industrial Panel PC

Features:

  • 21.5” TFT LCD (LED) 1920 x 1080 Full HD w/ Projected Capacitive Touch Screen
  • IP65 Stainless steel Front Bezel
  • Intel® 7th Gen. Core™ i7/ i5/ i3 / Celeron® processor
  • 2 x DDR4 2133MHz SO-DIMM memory up to 32GB
  • 2 x 2.5" SATA III HDD/SSD with Software RAID 0/1 (Q170), without Software RAID 0,1 (H110)
  • 1 x PCIe x16 slot, 1 x Mini-PCIe slot
  • 2 x GbE LAN, support Wake-On-LAN,PXE
  • AC input ATX 250W

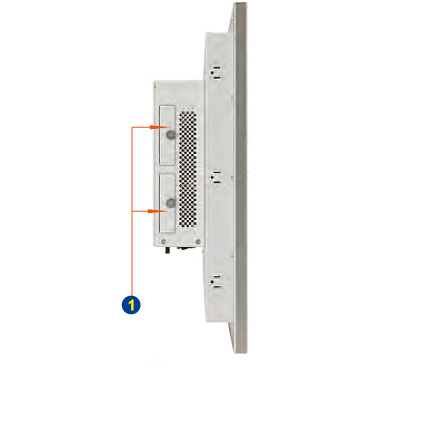

  • Removable HDD / SSD Drive Bay

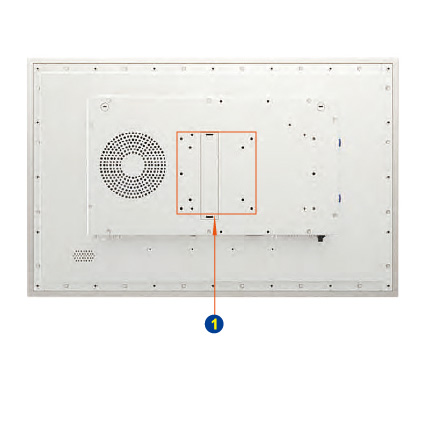

  • Mounting Supports: Wall Mount, VESA 75/100 and Panel Mount

The PMS2214 is an industrial panel PC designed for a variety of applications that require a reliable and efficient computing solution. This 21.5-inch model boasts of supporting Intel 7th Gen TE power efficient processors, enabling up to 32GB DDR4 memory and providing abundant connectivity with 4x COM and 4x USB 3.0 ports. Harnessing the power of Intel’s TE power efficient processors, the PMS2214 delivers exceptional performance while maintaining a lower temperature rating than traditional desktop versions. Moreover, this model offers support for two HDD/SSD with easily accessible side placement, while RAID support is available with the optional Q170 chipset. The PMS2214 features a slim bezel design for a sleek and flush appearance and a flat display, allowing for effortless operation.

Base Configurations

PMS2214 Industrial Panel PC


  • 21.5" TFT LCD (LED) 1920 x 1080 Projected Capacitive Touch Screen
  • Intel® Pentium® Processor G4400T (3M Cache, 2.90 GHz)
  • 4GB DDR4 SO-DIMM Memory
  • 480GB 2.5" SATA Solid State Drive

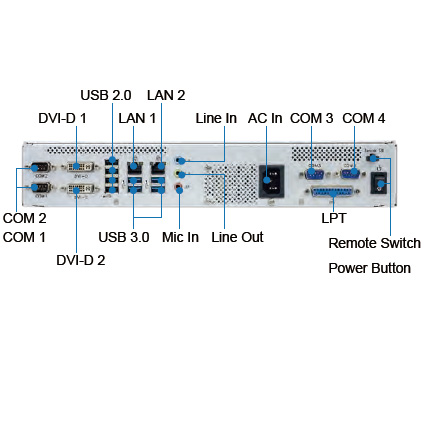

  • 3 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 2 x GbE LAN, Support Wake-On-LAN, PXE
  • 4 x USB3.0, 4 x USB2.0
  • 2 x DVI-D
  • 1 x PCIe x16, 1 x Half-sized Mini PCIe
  • IP 65 Compliant Stainless steel Front Bezel
  • 250W ATX AC Power Input

Configured:

$1,765.00

Customize
