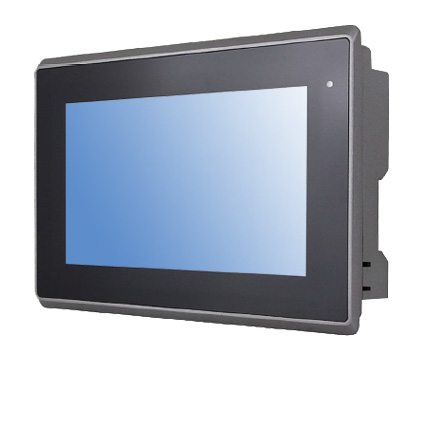

PMS5808 8" Flat Industrial Panel PC

Features:

  • Onboard Intel® Celeron® Processor N2930 (2M Cache, 1.83 GHz)
    Onboard Intel Atom E3845 1.91 GHz Processor (Optional)
  • Onboard 4GB DDR3L Memory
  • 1 x 2.5" SATA SSD Bay
  • 1 x Full Size Mini-PCIe slots, 1 x SD Card Slot
  • 2 x GbE LAN
  • Wide Range Voltage DC In 9~36V
  • Support Panel Mount, VESA 75 x 75
  • IP66 Compliant Front Bezel, Aluminum Die-casting Chassis

The PMS5808 panel computer is a versatile and reliable computing solution designed for use in industrial and commercial environments. The fanless and quiet design ensures low-noise operation, making it ideal for use in noise-sensitive applications. The flat front panel touch screen offers a user-friendly interface for easy operation, while the built-in Intel Celeron N2930 processor provides efficient and reliable performance. The onboard 4GB DDR3L memory offers fast and responsive computing capabilities, and the computer supports a wide range voltage DC in (9~36V). The aluminum chassis of the computer is sturdy and durable, providing protection against harsh environments and physical damage. Overall, the PMS5808 panel computer is a reliable and efficient solution for a variety of computing needs in industrial and commercial settings.

Base Configurations

PMS5808 Industrial Panel PC


  • 8” TFT LCD 800 x 600 Touch Screen
  • Intel® Celeron® Processor N2930 (2M Cache, 1.83 GHz)
  • Intel Atom E3845 Processor 1.91 GHz (Optional)
  • Onboard 4GB DDR3L Memory
  • 250GB 2.5" SATA Solid State Drive
  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 2 x GbE LAN
  • 2 x USB3.0
  • 1 x Full Size Mini-PCIe Slot, 1 x SD Card Slot
  • 9-36 VDC Power Input with Power Adapter

Configured:

$1,075.00

Customize
