PMS5816 15.6" Flat Industrial Panel PC

Features:

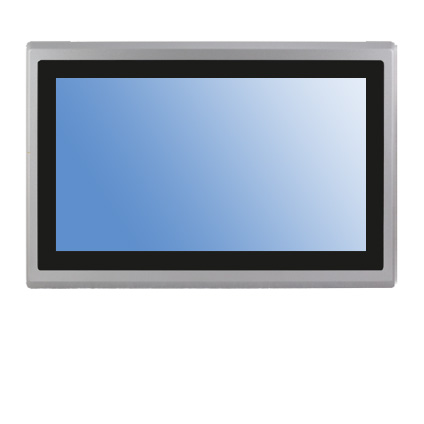

  • 15.6" Industrial Compact Size Panel PC, Flat Front Panel Touch Screen
  • High Brightness 1,000 nits (Optional)
  • Intel® Pentium® Processor N4200 (2M Cache, up to 2.50 GHz)
  • Onboard 4GB DDR3L Memory
  • 1 x 2.5" SATA SSD Bay, 1 x Micro SD Card Slot
  • 1 x Full Size Mini-PCIe slots, 1 x Micro SIM Slot
  • 2 x GbE LAN
  • Wide Range Voltage DC In 9~36V
  • Support Panel Mount, VESA 100 x 100
  • IP66 Compliant Front Panel, Aluminum Die-casting Chassis

The PMS5816 is a 15.6" industrial compact size panel computer that is designed for a variety of applications that require a reliable and efficient computing solution. The computer features a resistive type touch screen and an optional projected capacitive touchscreen support with a 7H anti-scratch surface. The flat front panel touch screen ensures ease of use and accessibility in a range of environments. The PMS5816 is powered by an Apollo Lake Intel N4200 processor and comes with 4GB of onboard memory. Additionally, the computer has a high brightness of up to 1,000 nits, making it ideal for use in bright or outdoor environments. The PMS5816 is certified CE/FCC Class A/UL and supports Windows 10 IoT operating system. Overall, the PMS5816 is a powerful and reliable computing solution for industrial and commercial applications that require a durable and high-performance panel computer.

Base Configurations

PMS5816 Industrial Panel PC


  • 15.6" TFT LCD 1366 x 768 w/ Resistive Touch Screen
  • Intel® Pentium® Processor N4200 (2M Cache, up to 2.50 GHz)
  • Onboard 4GB DDR3L Memory
  • 480GB 2.5" SATA Solid State Drive
  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 2 x GbE LAN
  • 2 x USB3.0
  • 1 x Full Size Mini-PCIe Slot, 1 x SD Card Slot, 1 x SIM Slot
  • 9-36 VDC Power Input with Power Adapter

Configured:

$1,325.00

Customize
