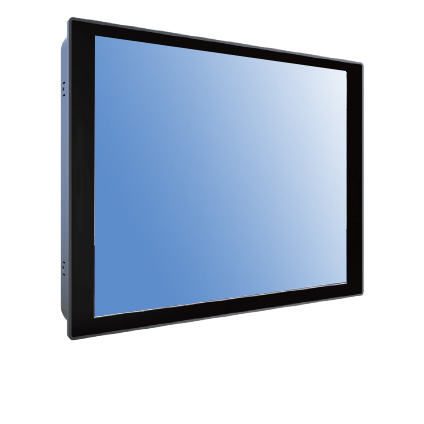

PMS6565 15" Flat Industrial Panel PC

Features:

  • Intel® 7th/6th Gen. Core™ i7/ i5/ i3 and Pentium® / Celeron® desktop processor (LGA1151)
  • 2 x DDR4 2133MHz SO-DIMM memory up to 32GB
  • 2 x 2.5" SATA III HDD/SSD with RAID 0/1 (Q170)
  • 2 x mini-PCIe slots, 1 x PCIe (x4) slot (Q170)
  • 2 x GbE LAN, PoE as option
  • Wide range voltage DC In 9~36V
  • Front panel IP65 design
  • Aluminum front bezel
  • Mounting Supports: Wall Mount, VESA 100 and Panel Mount
  • 5-wire resistive touchscreen or projected capacitive touchscreen

The PMS6565 is a panel computer with a range of features ideal for industrial and commercial applications. The panel computer is equipped with an Intel® 7th/6th Gen. Core™ i7/ i5/ i3 and Pentium ® / Celeron® desktop processor (LGA1151), providing high-performance computing power for demanding applications. The PMS6565 also includes 2 x DDR4 2133MHz SO-DIMM memory up to 32GB, 2 x 2.5" SATA III HDD/SSD with RAID 0/1 (Q170), 2 x mini-PCIe slots, 1 x PCIe (x4) slot (Q170), 2 x GbE LAN, PoE as an option, wide range voltage DC In 9~36V, front panel IP65 design with an aluminum front bezel, and a choice between a 5-wire resistive touchscreen or projected capacitive touchscreen. The rugged design of the PMS6565 makes it ideal for use in harsh environments, while its powerful computing capabilities ensure optimal performance in demanding applications.

Base Configurations

PMS6565 Industrial Panel PC


  • 15" TFT LCD 1024 x 768 Resistive Touch Screen
  • Intel® Pentium® Processor G4400T (3M Cache, 2.90 GHz)
  • 4GB DDR4 SO-DIMM Memory
  • 480GB 2.5" SATA Solid State Drive
  • 2 x RS-232 (DB9), 2 x RS-232/422/485 (DB9)
  • 2 x GbE LAN
  • 4 x USB3.0
  • 1 x Full Size Mini-PCIe (Mini PCIe, USB and SIM Signals)
    1 x Half Size mini-PCIe (Mini PCIe and USB Signals)
  • 1 x SIM Slot, 1 x CFast Slot
  • 9-36 VDC Power Input with Power Adapter

Configured:

$1,349.00

Customize
