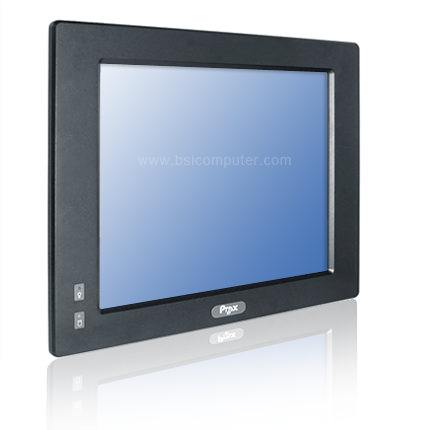

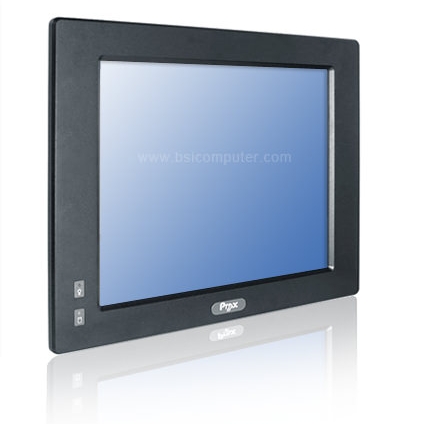

PMS7615 15" Fanless Panel PC with Intel Celeron J1900 processor
Features:
- 15" 1024 x 768 TFT LCD Fanless and Low Power Panel PC
- 5-wire Resistive Type Touch Screen
- Fanless and Quiet Design
- Intel® Celeron® J1900 Processor On Board
- Intel® SoC
- 1 x DDR3L SO-DIMM Slot (Max. 8GB)
- Support CFast Slot or mSATA
- 1 x External SD Card and 1 x SIM Slot
- 3G Module (Optional), Wireless LAN Module (Optional)
- 2 x GbE LAN, 4 x COM Ports, 2 x USB 2.0, 1 x USB 3.0
- Support Wide Voltage DC in (9~36V)
- IP65 Aluminum Front Bezel
The PMS7615 is a 15" Touch Panel PC with a USB 5-wire resistive type interface. The front bezel is constructed of aluminum and is IP65 rated. The fan-less design makes this Touch Panel PC virtually quiet making it a perfect choice for office use. The PMS7615 supports the Intel E3845/E3826/J1900 processor integrated on to the Motherboard and a DDR3L SO-DIMM socket for a maximum of up to 8GB. There is a 2.5 SATA drive bay to house a HDD and a CFast slot too giving you options when it comes with storage. There is also an external SD card and a SIM slot available.

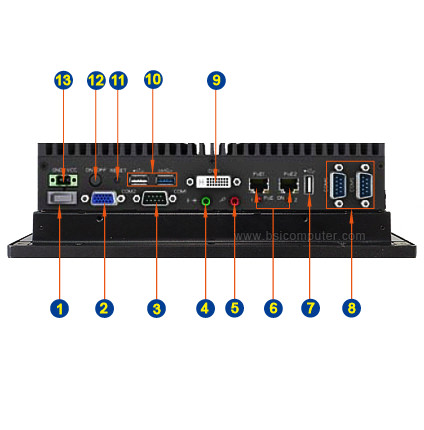

The PMS7615 has two USB 2.0 and one USB 3.0 ports as well as two GbE LAN. There are four COM ports; COM 1 and 2 use RS232/422/485 (setting by BIOS) and COM 3 and 4 use RS232. A DVI-I offers video out. A 3G module and wireless LAN are both optional. The operating temperature is 32°F ~ 104°F when configured with an HDD. The PMS7615 supports a wide voltage input, 9~36V DC. The dimensions are 408 x 308 x 87.7 mm.
Base Configurations
- 15" 1024 x 768 TFT LCD with Resistive Touch Screen
- Intel® Celeron® J1900 2.0 GHz Processor
- 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
- 480GB 2.5" SATA Solid State Drive
- 2 x RS-232 (DB9), 2 x RS-232/422/485 (DB9)
- 2 x Gigabit LAN
- 1 x USB3.0, 2 x USB2.0 Port
- 1 x External SD Card and 1 x SIM Slot
- 1 x CFast Slot, 1 x Full Size Mini PCIe Slot
- Built-in Video and Audio
- 3G Module (Optional)
- Wireless LAN Module (Optional)
- 9~36VDC Terminal Block Connector
- 72W 24VDC Power Adapter
