Features:

• 15" 1024 x 768 350nits XGA TFT LCD with Resistive Touch Screen
• Intel Celeron Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
• 8GB16GB/32GB DDR4 Memory
• 1 x M.2 M key 2242/2280 (PCIe Gen3 x2), 1 x M.2 B key 3024, 1 x M.2 E Key 2230
• 2 x HDMI
• 2 x COM, 2 x 2.5GbE LAN
• Panel Mount and VESA Mount (Optional)
• IP65 Compliant Front Panel
• CE, UKCA, FCC, VCCI, Shock, Vibration

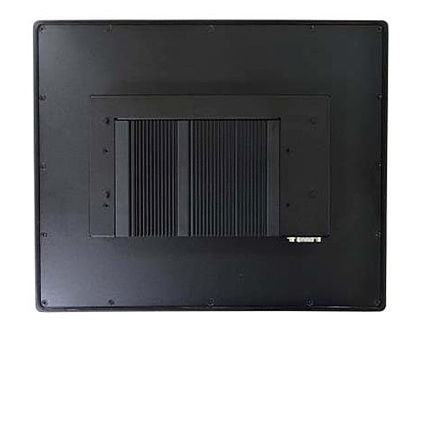

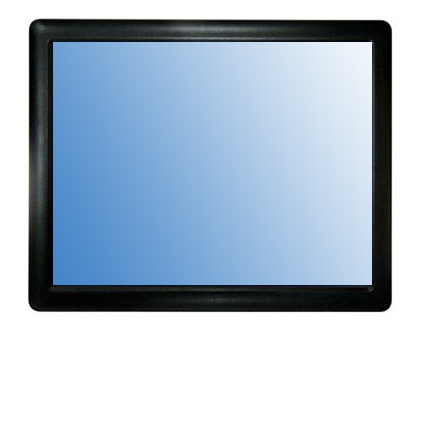

The PMS8150 is a rugged 15" XGA TFT-LCD panel computer featuring a resistive touch screen and a powerful Intel Elkhart Lake J6412 quad-core processor. With a native resolution of 1024 x 768 pixels, brightness of 350 cd/m², and a backlight life of 30,000 hours, it delivers clear and reliable visuals for industrial applications. The system supports up to 32GB of DDR4 memory and includes an M.2 M-key slot for PCIe Gen.3 x2 or SATA-based NVMe storage, along with M.2 B-key and E-key expansion slots for additional connectivity. I/O options are extensive, featuring dual HDMI, dual 2.5GbE Intel LAN ports, HD Audio, two COM ports (with COM1 supporting RS232/485/422), six USB ports (three USB3.1 Gen2 and three USB2.0), and a wide 12–24V DC power input range. Designed for reliable operation in demanding environments, the PMS8150 operates at temperatures from 0°C to +60°C and supports Windows 10, Windows 11 (64-bit), and Linux. Its compact dimensions (354.84 x 280.84 x 61.55 mm) make it well-suited for industrial control, HMI, and automation kiosks.
