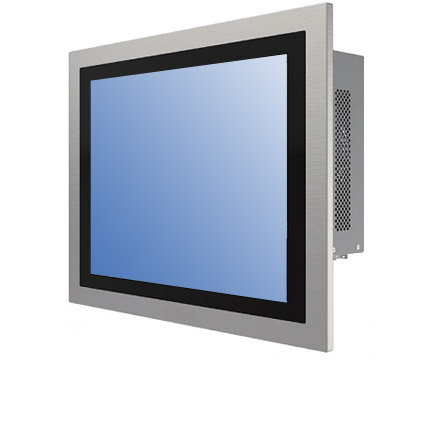

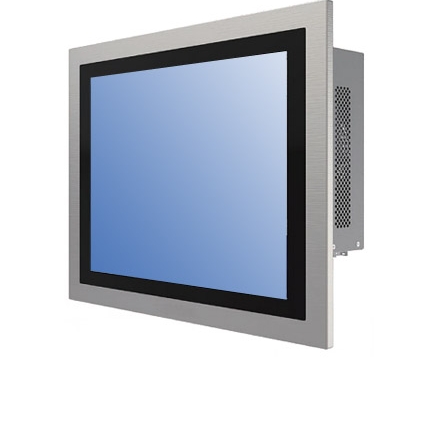

PMS8154 High Performance 15" True-Flat Panel PC with Fan, Intel® 7th Gen. Core™ i7/i5/i3/Celeron® Processor

Features:

  • Intel® 7th Gen. Core™ i7 / i5 / i3 / Celeron® Processor
  • 2 x DDR4 SO-DIMM (Max.32GB)
  • 2 x 2.5" SATA III SSD with Software RAID 0,1 (Q170) / without Software RAID 0,1 (H110),Removable HDD / SSD Drive Bay
  • 1 x Mini PCIe slot & 1 x PCIe (x16) slot
  • 2 x GbE LAN, support Wake-On-LAN, PXE
  • AC input ATX 250W
  • IP65 Stainless Steel Front Panel

The PMS8154 is a new entry into the high performance true-flat panel computer system line of products. The motherboard included comes installed with an Intel 7th generation i3, i5, i7 or Celeron G3930TE processor running on the Q170/H110 chipset. The memory module supports DDR4-2333MHz SO-DIMM RAM, which has a maximum capacity of 32GB. The screen displays a resolution of 1024x768 at an aspect ratio of 4:3. The I/O interface features 4 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, and 2 LAN ports. The panel complies with FCC/CE certifications.

Base Configurations

PMS8154 Industrial Panel PC

  • 15" 1024 x 768 TFT LCD w/ Resistive Touch Screen
  • Intel® Pentium® Processor G4400T (3M Cache, 2.90 GHz)
    Up to Core i7 Processor (Optional)
  • 4GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive

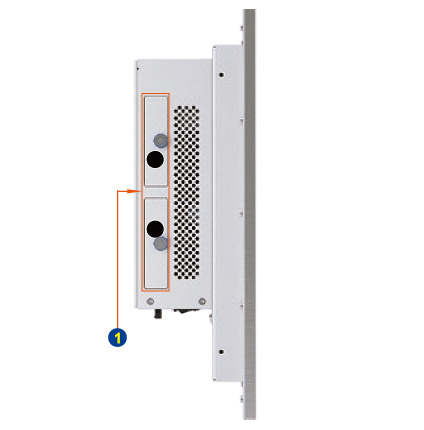

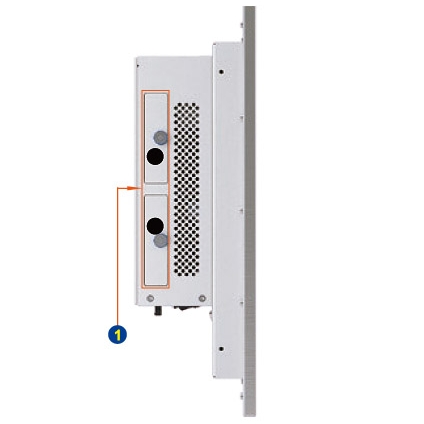

  • 2 x Removable HDD/SSD Bays

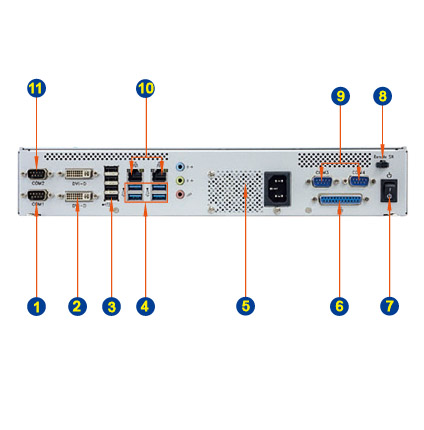

  • 3 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 4 x USB 3.0, 4 x USB 2.0 Ports
  • 1 x PCIe x16 Slot, 1 x Half-Size Mini-PCIe Slot
  • 2 x DVI-D, Audio (1 x Line In / 1 x Line Out / 1 x Mic In)
  • 2 x Gigabit LAN
  • 250W ATX AC Power Input

Configured:

$1,359.00

Customize
