PMS8810 10.4" Flat Touch Fanless Panel PC

Features:

  • 10.4" 1024 x 768 XGA TFT LCD Flanless Touch Panel PC
  • Supports 1000-1600 nits High Brightness LCD Sunlight Readable (Optional)
  • IP65 Stainless Steel Front Bezel
  • Intel® Celeron® J1900 and Atom™ E3845/E3826 Processor On Board, Intel® SoC
  • 2 x DDR3L SO-DIMM Slot (Max. 8GB)
  • 2 x USB 2.0, 1 x USB 3.0
  • 4 x COM Ports
  • 2 x GbE LANs with PoE as Option
  • Supports 5-wire Resistive Touch Screen or Projected Capacitive Touch Screen
  • Support Wide Voltage DC in (9~36V)
  • Wide Range Temperature (with Intel E3845 CPU)
  • Mounting Support: Wall Mount, VESA 75/100, Panel Mount

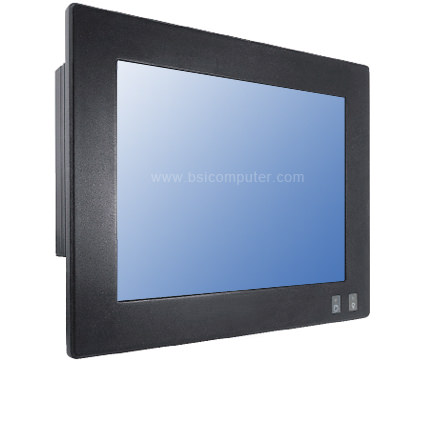

The PMS8810 is a Fan-less Panel PC with a 10.4" XGA display and a 5-wire USB resistive touch screen. The front bezel is constructed of aluminum and is rated as IP65. The processors supported are Intel Atom E3845/E3826/J1900 and up to 8GB DDR3L.

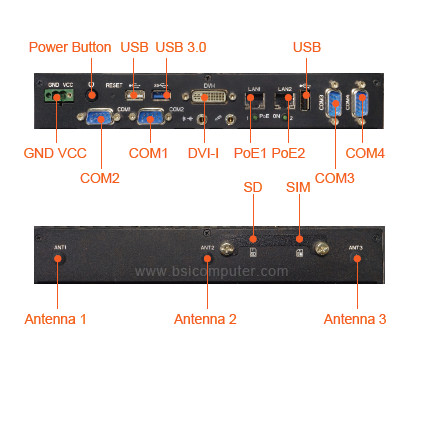

The PMS8810 has one 2.5 SATA II and one CFast slot available as well as a PCIE slot, SD card slot and a SIM card slot. There are also two USB 2.0 ports, one USB 3.0, four COM Ports, two GBE LAN and one DVI-I. A terminal block accepts 9-36VDC; this Panel PC can be used with a wall mount, VESA 75 or VESA 100.

Base Configurations

PMS8810 Fanless Panel PC

  • 10.4" 1024 x 768 TFT LCD with Resistive Touch Screen
  • Intel® Celeron® Processor J1900 (2M Cache, 2.0 GHz)
    Intel Atom® Processor E3826 (1M Cache, 1.46 GHz) (Optional)
    Intel Atom® Processor E3845 (2M Cache, 1.91 GHz) (Optional)
  • 2GB DDR3L SO-DIMM Memory (1x2GB)
  • 480GB 2.5" SATA Solid State Drive
  • 2 x RS-232 (DB9), 2 x RS-232/422/485 (DB9)
  • 1 x USB3.0, 2 x USB2.0 Ports
  • 1 x Full Size Mini-PCIe Slot (Mini-PCIe, USB and SIM Signal)
    1 x Half Size Mini-PCIe Slot (Mini-PCIe and USB Signal)
    1 x CFast Slot
    1 x External SD Card Slot with Cover
    1 x External SIM Card Slot with Cover
  • Built-in DVI-I (DVI-D+VGA) and Audio
  • 2 x Gigabit LAN, PoE as Option
  • 9~36VDC Terminal Block Power Connector

Configured:

$1,035.00

Customize
