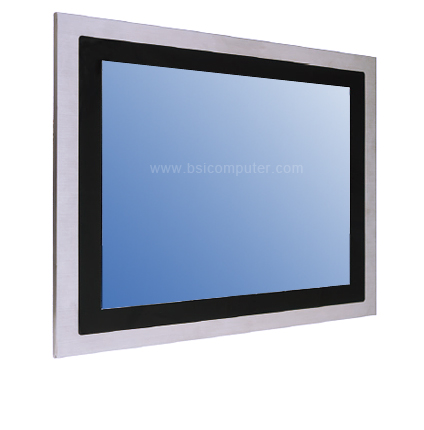

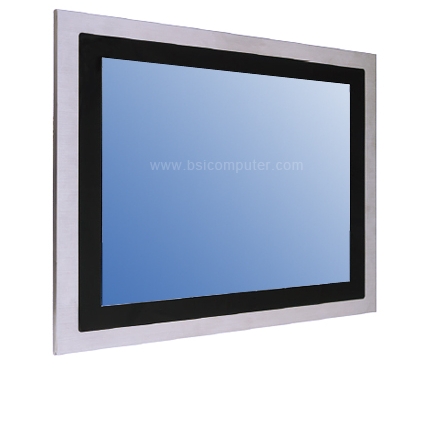

PMS8815 15" Flat Touch Fanless Panel PC


  • 15" 1024 x 768 XGA TFT LCD Flanless Touch Panel PC
  • Supports 1000-1600 nits High Brightness LCD Sunlight Readable (Optional)
  • Intel® Celeron® J1900 and Atom™ E3845 Processor On Board, Intel® SoC
  • 2 x DDR3L SO-DIMM Slot (Max. 8GB)
  • 3 x USB 2.0, 1 x USB 3.0
  • 6 x COM Ports
  • Supports 5-wire Resistive Touch Screen or Projected Capacitive Touch Screen
  • IP65 Stainless Steel Front Bezel
  • Support Wide Voltage DC in (9~36V)
  • Wide Range Temperature (with Intel E3845 CPU)

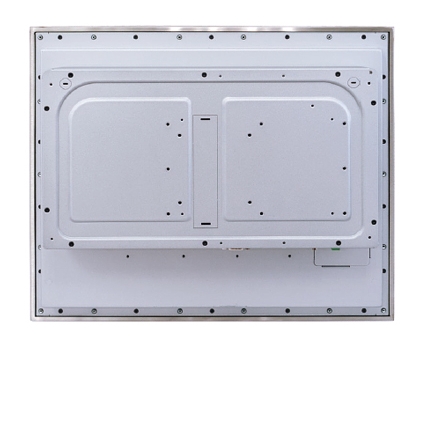

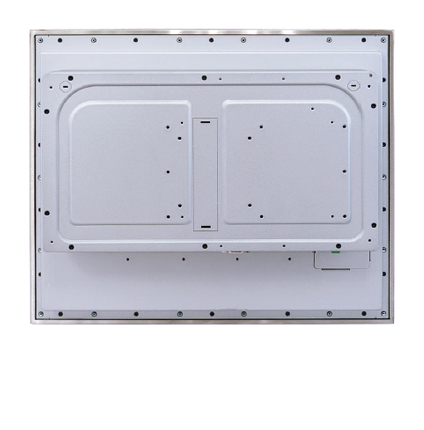

  • Mounting Support: Wall Mount, VESA 75/100, Panel Mount

The PMS8815 is a Fan-less Panel PC with a 15" TFT LCD. An IP65 rated stainless steel bezel houses the 5-wire resistive touch screen or a projected capacitive touch screen. The Intel E3845/J1900 processor is supported long with a maximum of 8GB DDR3L. Internally there are two 2.5" SATAII drive bays available as well as one Mini PCIe slot and one PCIe x1. The PMS8815 can be used with a wall-mount, vesa 75, vesa 100 and panel mount; and the terminal block accepts 9-36VDC.

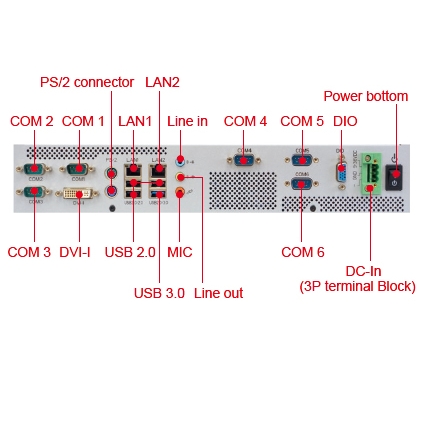

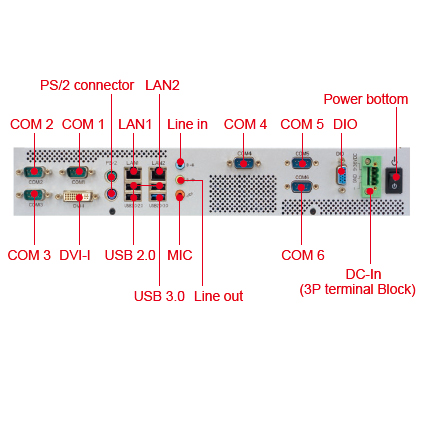

The I/O consists of one DVI-I, three USB 2.0, one USB 3.0, two LAN ports, six COM ports and a digital I/O consisting of four in and four out. There are also two ps/2 ports.

Base Configurations

PMS8815 Fanless Panel PC

  • 15" 1024 x 768 TFT LCD with Resistive Touch Screen
  • Intel® Celeron® Processor J1900 (2M Cache, 2.0 GHz)
    Intel Atom® Processor E3845 (2M Cache, 1.91 GHz) (Optional)
  • 2GB DDR3L SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 4 x RS-232 (DB9), 2 x RS-232/422/485 (DB9)
  • 2 x Gigabit LAN
  • 1 x USB3.0, 3 x USB2.0 Ports
  • 1 x Mini-PCIe Slot, 1 x PCIe x1 Slot
  • Built-in DVI-I (DVI-D+VGA) and Audio
  • 9~36VDC Terminal Block Power Connector
