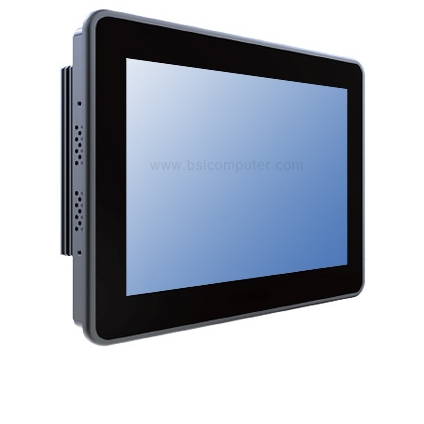

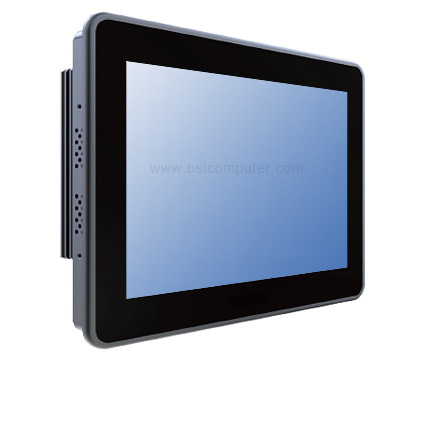

PMS8910 10.4" Fanless Touch Panel PC


  • 10.4" 800 x 600 SVGA TFT LCD Flanless Panel PC w/ 5-wire Resistive Touch Screen
  • IP65 Aluminum Front Bezel
  • Intel® Celeron® N3350 2.4GHz Processor On Board, Intel® SoC
  • 1 x DDR3L SO-DIMM Slot (Max. 8GB)
  • Three Independent Displays (HDMI / DVI-D / LVDS)

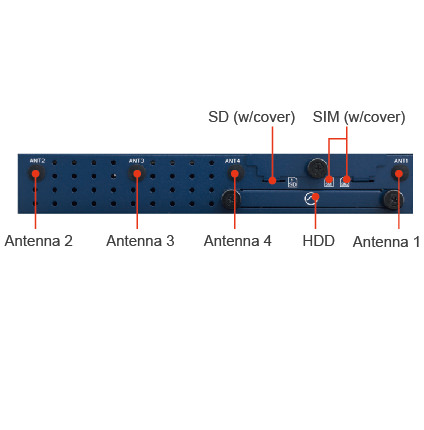

  • Expansion Slot (2 x Full Size Mini-PCIe / SD Slot / 2 x SIM Slot)

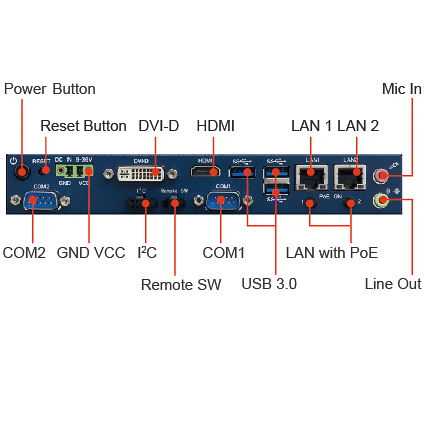

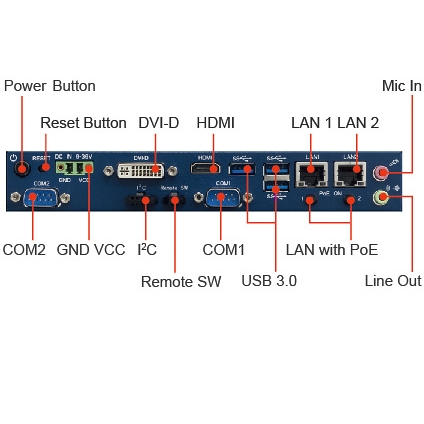

  • 2 x COM Ports, 3 x USB 3.0, 2 x GbE LANs with PoE
  • Support Wide Voltage DC in (9~36V)
  • TPM Module (Optional)

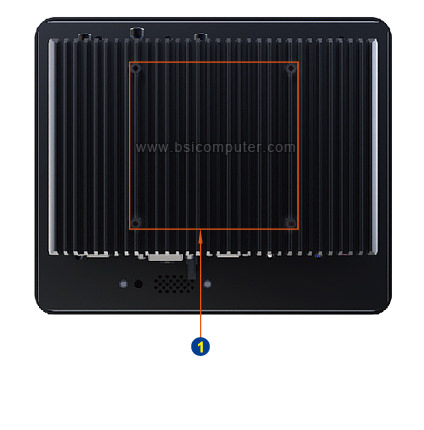

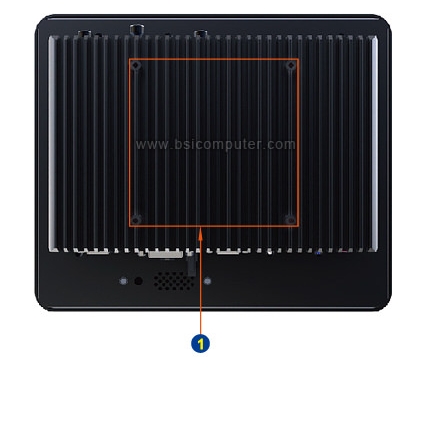

  • Mounting Support: Wall Mount, VESA 100, Panel Mount

The PMS8910 is a Fan-less Panel PC with a 10.4" TFT LCD and 5-wire resistive touch screen. It supports Intel Atom E3950 / Pentium N4200 / Celeron N3350 and p to 8gb DDR3L. The front aluminum front panel is IP65 for added protections. A single 2.5" HHD/SSD is supported as well as two full size mini-PCIe / SD Slot / 2 SIM slot. The I/O consists of two LAN Ports, three USB 3.0 ports and two COM Ports. Video output consists of HDMI / DVI-D / LVDS. The PMS8910 is powered by 9-36V DC and has an option for a TPM Module. It can be used via Wall mount, VESA 100 and Panel Mount.

Base Configurations

PMS8910 Fanless Panel PC

  • 10.4" 800 x 600 TFT LCD with Resistive Touch Screen
  • Intel® Celeron® N3350 2.4GHz Processor
  • 2GB DDR3L SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 1 x HDMI, 1 x DVI-D, 1 x LVDS
  • 2 x RS-232/422/485 (DB9)
  • 3 x USB3.0 Ports
  • 2 x Full-Size Mini-PCIe Slots, 1 x SD Slot, 2 x SIM Slots
  • 2 x Gigabit LAN w/ PoE
  • 9~36VDC Terminal Block Power Connector
