PMS8915 - 15" Fanless Touch Panel PC

Features:

  • 15" 1024 x 768 XGA TFT LCD Flanless Panel PC
  • Supports 5-wire Resistive Touchscreen or Projected Capacitive Touchscreen
  • IP65 Aluminum Front Bezel
  • Intel® Celeron® N3350 2.4GHz Processor On Board, Intel® SoC
  • 1 x DDR3L SO-DIMM Slot (Max. 8GB)
  • Three Independent Displays (HDMI / DVI-D / LVDS)
  • Expansion Slot (2 x Full Size Mini-PCIe / SD Slot / 2 x SIM Slot)
  • 2 x COM I²C, 3 x USB 3.0, 2 x GbE LANs with PoE
  • Wide-ranged Voltage DC In (9~36V)
  • TPM Module (Optional)
  • Supports High Brightness LCD Sunlight Readable (Optional)

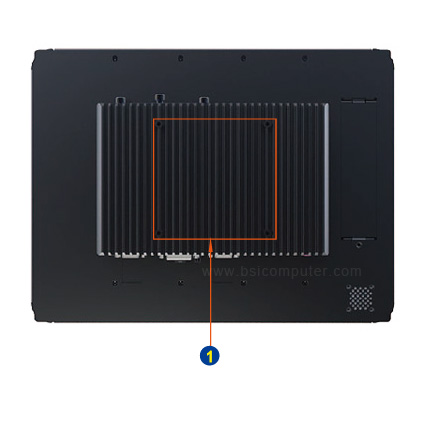

  • Mounting Support: Wall Mount, VESA 100, Panel Mount

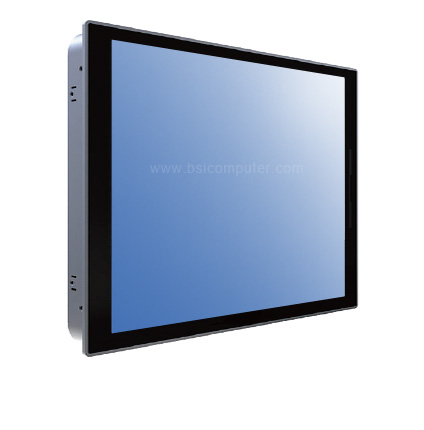

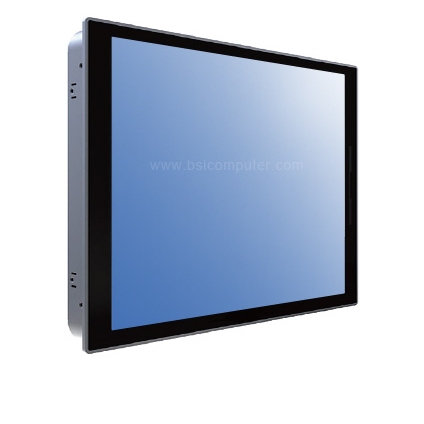

The PMS8915 is a Fanless low power panel PC with a 15-inch display. The system runs with CPU options in the Intel Atom, Pentium and Celeron series on an Intel SoC chipset. Memory supports DDR3L 1600/1867 MHz SO-DIMM RAM up to a capacity of 8GB and for storage; there is a 2.5-inch bay for an appropriate SSD or HDD. The system is powered using a wide range of voltage options anywhere between 9-36 volts.

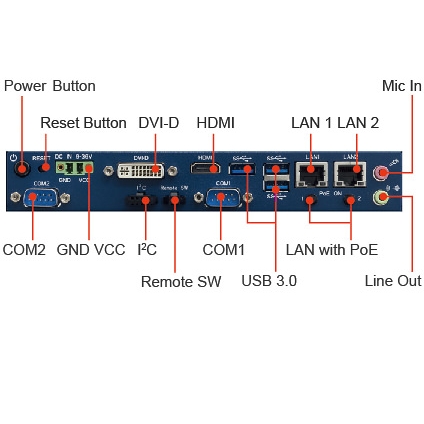

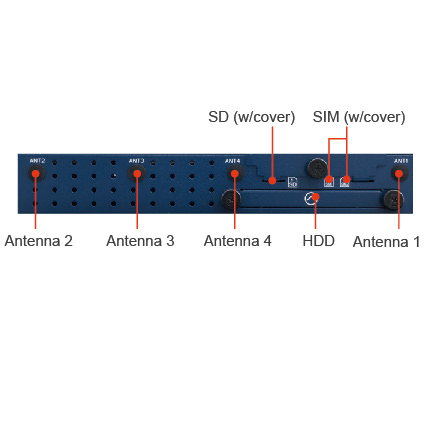

The display supports a 5-wire resistive or capacitive touch screen and has three independent displays using HDMI, DVI-D and LVDS. There is also a wide variety of I/O ports available for use including 2 LAN with PoE, 3 USB 3.0, and 2 COM. Expansion options are also provided giving the user access to 2 full-sized Mini PCIe slots, 1 SD slot and 2 SIM slots. If desired, the user may also install a TPM module for added security as an optional add-on.

Base Configurations

PMS8915 Fanless Panel PC

  • 15" 1024 x 768 TFT LCD 450 nits LCD w/ LED Backlight, Resistive Touch Screen
    Projected Capacitive Touch Screen (Optional)
  • Intel® Celeron® Processor N3350 (2M Cache, up to 2.4 GHz)
  • 2GB DDR3L SO-DIMM Memory (1x2GB)
  • 480GB 2.5" SATA Solid State Drive
  • 1 x HDMI, 1 x DVI-D, 1 x LVDS
  • 2 x RS-232/422/485 (DB9)
  • 3 x USB3.0 Ports
  • TPM Module (Optional)
  • 2 x Full-Size Mini-PCIe Slots, 1 x SD Slot, 2 x SIM Slots
  • 2 x Gigabit LAN
  • 9~36VDC Terminal Block Power Connector

Configured:

$1,089.00

Customize
