POCm-W22C-RPL Medical Panel PC with 13th Gen Intel® Core™ i5/ i7 processor

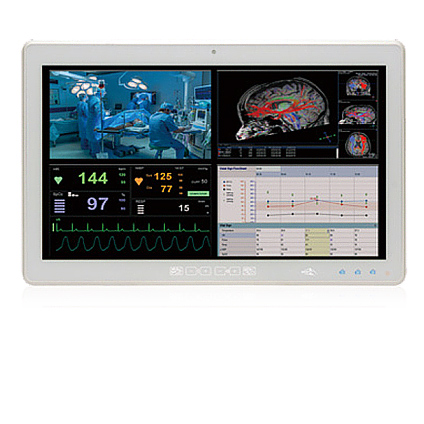

  • 21.5" 1920 x 1080 LCD Display with LED Backlight
  • PCAP touch allows multi-touch, multi-layer gloves and water-on-screen operation
  • 13th Gen Intel® Core™ i5/ i7 processor (Raptor Lake-P)
  • 2 x 262-pin dual-channel DDR5 SO-DIMM slots (Max. 64GB)
  • 1 x 2.5" Accessible SATA HDD Bay
  • 2 x M.2 2280 M key (PCIe) with RAID
  • Anti-bacteria housing with IP65 front bezel protection

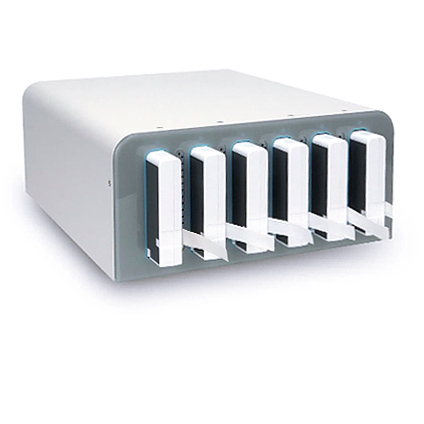

  • Three hot-swappable batteries with a total runtime of 8 hours, ideal for non-powered medical carts

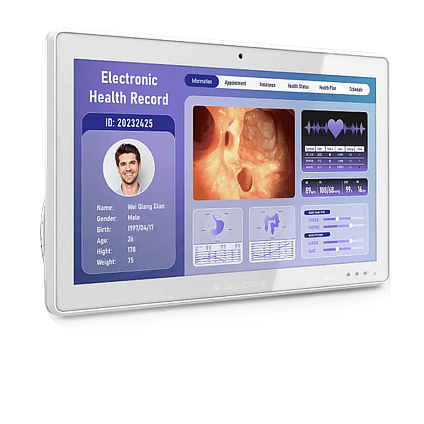

The POCm-W22C-RPL medical panel PC is an advanced solution designed to meet the demanding needs of medical environments. Powered by the 13th Gen Intel® Core™ i5/ i7 processor (Raptor Lake-P), it ensures exceptional performance and reliability. Its anti-bacterial housing, coupled with IP65 front bezel protection, provides a hygienic and durable solution suitable for healthcare settings. The PCAP touch technology enables seamless operation with multi-touch support, compatibility with various gloves, and resistance to water-on-screen interactions. Notably, the inclusion of three hot-swappable batteries extends its usage to up to 8 hours, making it ideal for integration into non-powered medical carts, ensuring continuous operation throughout demanding shifts.

Barebone & Base Configurations

POCm-W22C-RPL Medical Panel PC

  • 21.5" 1920x1080 350 nits LCD w/ LED Backlight, Projected Capacitive Touchscreen
  • Intel® Core i5-1340PE Processor (12M Cache, 1.80 GHz)
  • Intel® Core i7-1370PE Processor (24M Cache, 1.90 GHz)(Optional)
  • 8GB DDR5 SO-DIMM Memory
  • 250GB M.2 NVME Solid State Drive

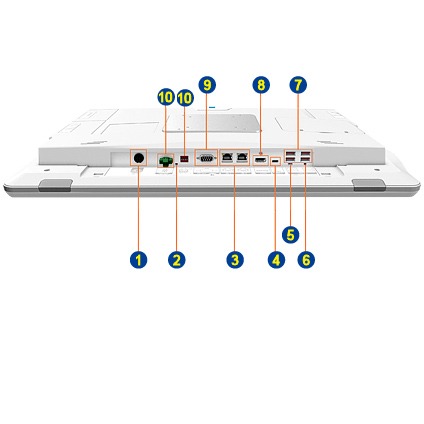

  • 1 x RS-232/422/485 (DB9)

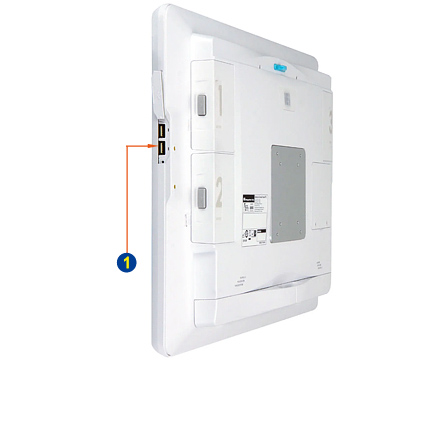

  • 4 x USB 3.2, 2 x USB 2.0 Ports
  • 2 x 2.5GbE LAN Ports
  • 1 x HDMI
  • 1 x PCIe Mini (PCIe), 1 x M.2 2230 A-E key (PCIe+USB)
  • IEEE 802.11ax 2T2R Wireless Module (Wi-Fi 6E) with BT v5.2 (M.2 2230 A-E key)
  • 8-megapixel CMOS front-facing Camera, Digital Microphone
  • 150W Medical Power Adapter

Barebone Only:
