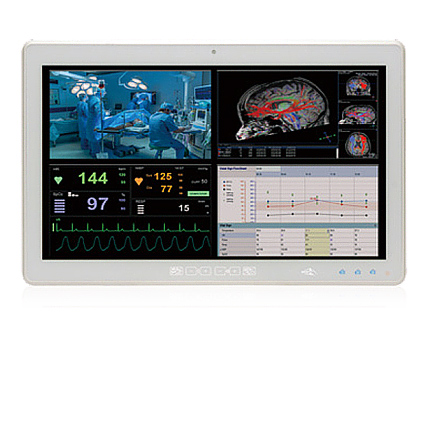

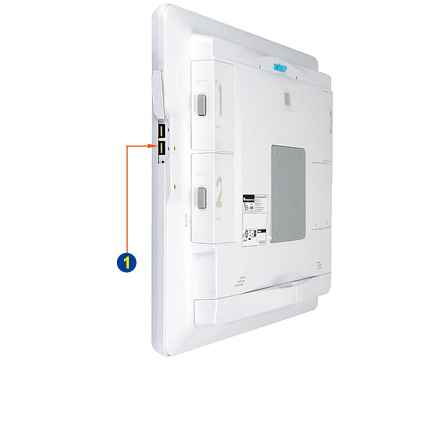

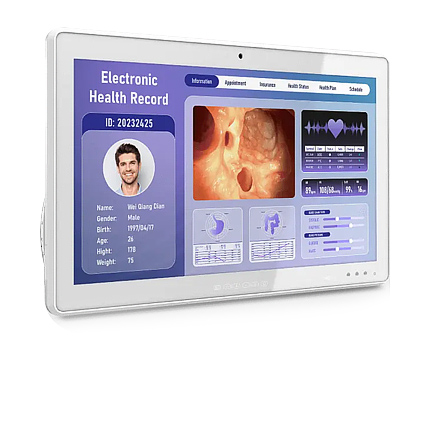

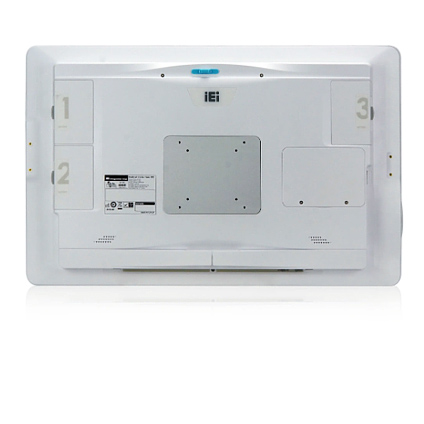

POCm-W24C-RPL Medical Panel PC with 13th Gen Intel® Core™ i5/ i7 processor
Features:
- 23.8” (16:9) 1920 x 1080 LCD display with LED backlight
- Anti-bacteria housing with IP65 front bezel protection
- PCAP touch allows multi-touch, multi-layer gloves and water-on-screen operation
- 13th Gen Intel® Core™ i5/ i7 processor (Raptor Lake-P)
- 2 x 262-pin dual-channel DDR5 SO-DIMM slots (Max. 64GB)
- 1 x 2.5" Accessible SATA HDD Bay
- 2 x M.2 2280 M key (PCIe) with RAID
- 8-megapixel CMOS front-facing camera, digital microphone

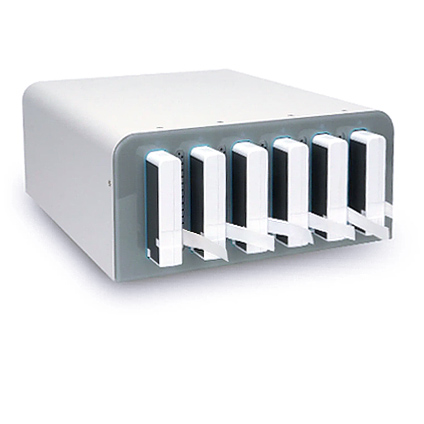

- Three hot-swappable batteries with a total runtime of 8 hours, ideal for non-powered medical carts
The POCm-W24C-RPL medical panel PC offers cutting-edge performance and reliability tailored for medical environments. Featuring the powerful 13th Gen Intel® Core™ i5/ i7 processor (Raptor Lake-P), it ensures seamless operation of medical applications and software. Its anti-bacteria housing, combined with IP65 front bezel protection, ensures a hygienic and durable solution suitable for healthcare settings where cleanliness is paramount. With PCAP touch technology, it allows intuitive multi-touch interactions, supports the use of multi-layer gloves, and is resistant to water-on-screen operations, enhancing usability in diverse medical scenarios. Additionally, equipped with three hot-swappable batteries providing a total runtime of 8 hours, this panel PC is an ideal choice for integration into non-powered medical carts, ensuring uninterrupted workflow during critical procedures and rounds.
Barebone & Base Configurations
- 23.8" 1920x1080 350 nits LCD w/ LED Backlight, Projected Capacitive Touchscreen
- Intel® Core™ i5-1340PE Processor (12M Cache, 1.80 GHz)
- Intel® Core™ i7-1370PE Processor (24M Cache, 1.90 GHz)(Optional)
- 8GB DDR5 SO-DIMM Memory
- 250GB M.2 NVME Solid State Drive

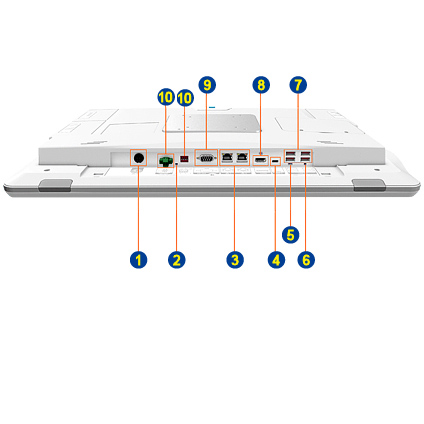

- 1 x RS-232/422/485 (DB9)
- 4 x USB 3.2, 2 x USB 2.0 Ports
- 2 x 2.5GbE LAN Ports
- 1 x HDMI
- 1 x PCIe Mini (PCIe), 1 x M.2 2230 A-E key (PCIe+USB)
- IEEE 802.11ax 2T2R Wireless Module (Wi-Fi 6E) with BT v5.2 (M.2 2230 A-E key)
- 8-megapixel CMOS front-facing Camera, Digital Microphone
- 150W Medical Power Adapter
