PPC-F08B-BT 8" Fanless Panel PC


  • Intel® Celeron® J1900 Quad-core SoC
  • Low Power Consumption DDR3L Memory Supported (Max. 8GB)
  • Robust IP65 Aluminum Front Bezel
  • Dual PCIe Mini Card Expansion
  • 9V~30V DC Wide Range DC Input

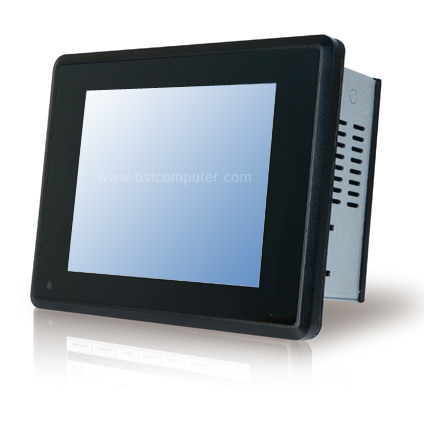

The PPC-F08B-BT is an 8" Industrial Panel PC designed with a fan-less design and an IP 65 compliant front panel constructed of Aluminum with a 5-wire resistive type flat touch screen. The processor supported is the 2GHz Intel Celeron J1900 on-board SoC quad-core and can use a maximum of 8GB DDR3L memory thanks to its two 204-pin SO-DIMM slots. An mSATA SSD is used for storage and provides great performance especially when vibration is an issue. The PPC-F08B-BT comes standard with one full-size PCIe Mini slot (with mSATA/PCIe/USB signal) and a half-size PCIe Mini slot, used for a Wi-Fi module.

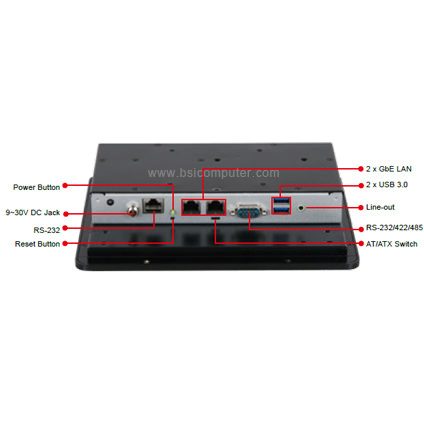

There are many I/O ports offering opportunities for additional peripherals and communication. There is one RS-232 COM port via RJ-45, one RS-232/422/485 selectable COM port (DB-9 connector) (RI/5V/12V) and two GbE LAN ports. Four USB ports are available, two, which are USB 3.0.An Audio port (line-out) and a 9~30 V DV lockable power jack are standard. The PPC-F08B-BT can operate in temperatures ranging from -10°C~50°C and can be mounted by Stand, Panel Mount, Rack Mount or VESA (75x75).

Barebone & Base Configurations

PPC-F08B-BT Fanless Panel PC

  • 8" 800 x 600 500 nits TFT LCD with Resistive Touch Screen
  • Intel® Celeron® J1900 2.0 GHz Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 128GB SATA III 6Gb/s mSATA Solid State Drive
  • 2 x Gigabit Ethernet
  • 2 x USB3.0, 2 x USB2.0 Port
  • 1 x RS-232 (RJ45), 1 x RS-232/422/485 (DB9)
  • 2 x PCIe Mini Card Slots
  • 802.11 a/b/g/n/ac Wireless Kit (Optional)
  • 38W 9-36VDC Power Adapter

Barebone Only:
