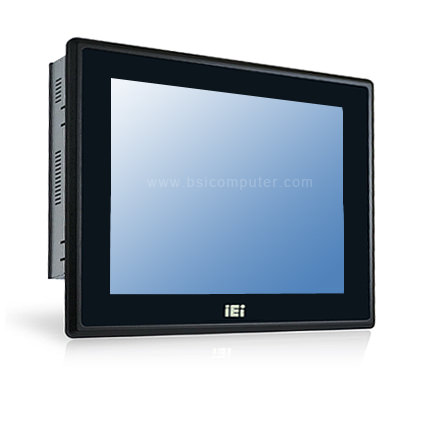

PPC-F12B-BT 12" Heavy Industrial Panel PC


  • Support IEI iRIS-2400 Remote Intelligent Solution
  • Intel® Celeron® J1900 Quad-core SoC
  • Robust IP65 Aluminum Front Bezel

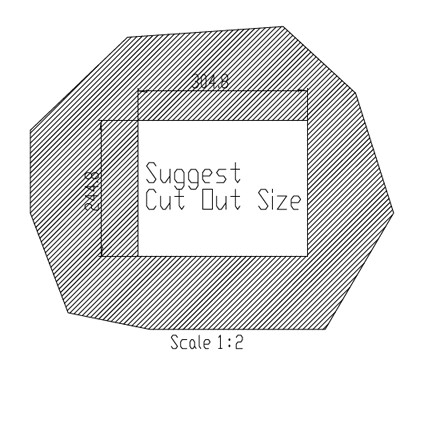

  • Aesthetic Ultra-thin Bezel for Seamless Panel Mount Installation
  • Projected Capacitive Multi-touch and Resistive Single Touch Options
  • Dual Full-Size PCIe Mini Card Expansion
  • 9V~36V DC Wide Range DC Input

The PPC-F12B-BT is a fan-less Touch Panel PC designed with a robust IP65 aluminum front bezel, which is ultra-thin for seamless panel mount installation. The touch screen is a projected capacitive multi-touch with a resistive single touch option. The PPC-F12B-BT supports Intel's Celeron J1900 quad-core SoC and two 204-pin DDR3L SO-DIMM slot for a maximum of 8GB. The operating temperature is from 14°F ~ 122°F and power input range 9V~36V DC.

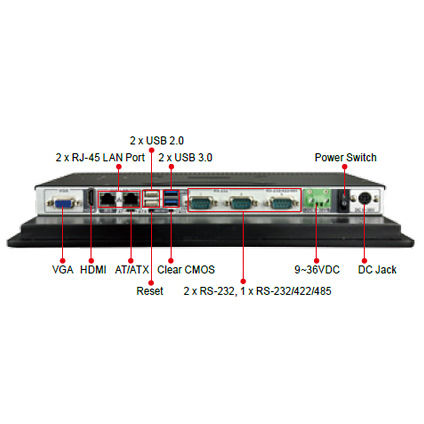

As for I/Os, the PPC-F12B-BT has many. There are two RJ-45 LAN ports, two USB 3.0 and two USB 2.0. There are also two RS-232 COM Ports and a RS-232/422/485 selectable COM port. One HDMI and one VGA give you access to external displays and dual full-size PCIe Mini card expansion slots offer extra room for customization. There is an internal 2.5" HDD/SSD drive bay available and to top it off the PPC-F12B-BT supports IEI iRIS-2400 remote intelligent solution.

Barebone & Base Configurations

PPC-F12B-BT Fanless Panel PC

  • 12" 1024 x 768 600 nits TFT LCD with Resistive Touch Screen
  • Projected Capacitive Touch Screen (Optional)
  • Intel® Celeron® J1900 2.0 GHz Processor
  • 2GB DDR3L 1600MHz SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 2 x Gigabit Ethernet
  • 2 x USB3.0, 2 x USB2.0 Port
  • 2 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 1 x HDMI, 1 x VGA
  • 2 x Full-Size PCIe Mini Card Slots
  • 802.11 a/b/g/n/ac Wireless Kit (Optional)
  • 40W 9-36VDC Power Adapter

Barebone Only:
