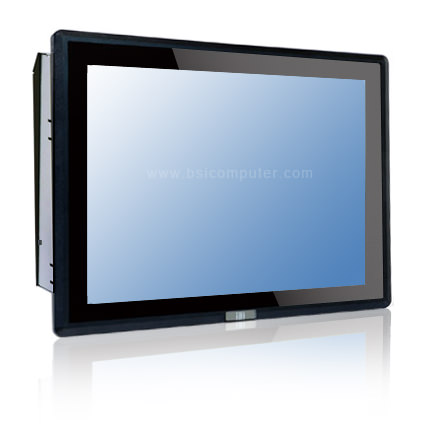

PPC-F17A-H81 17" Industrial Touch Panel PC with Remote Intelligent Solution


  • 17" 1280 x 1024 350 nits TFT LCD with Touch Screen
  • Intel® 4th generation Core™ i7/i5/i3 or Pentium® processor
  • Intel® H81 Chipset
  • Supports 2 x DDR3 SO-DIMMs Slots up to 16 GB
  • 1 x 2.5" SATA HDD/SSD Drive Bay
  • Dual full-size PCIe Mini Card Expansion
  • iRIS-2400 Module for Remote Management (Optional)
  • Resistive Single Touch / Projected Capacitive Multi-Touch Screen Options
  • Robust IP65 Aluminum Front Bezel and Sheet Metal Rear Cover
  • Versatile Mounting Solution: Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

The PPC-F17A-H81 is a 17" industrial touch panel PC that supports the latest Intel® 4th generation Core™ i7/i5/i3, Pentium® processor with Intel H81 chipset, up to 16GB DDR3 memory. It supports the IPMI 2.0 compliant iRIS remote management, which helps users to manage multiple devices through single management interface and elevates work efficiency. iRIS solution only requires a module and Internet connection! Users can remotely power on/off all the iRIS devices, set up power cycle to simplify power control process, and Remote troubleshooting everywhere, there is no need to send out maintenance staff anymore!

The PPC-F17A-H81 touch panel PC is equipped with the latest SATA 3.0 interface that supports up to 6Gb/s which is twice faster than SATA 2.0! Both 2.5" SATA HDD and SSD can be used in the SATA 3.0 interface. Moreover, it provides two full-size PCIe Mini card expansion slots that can easy to add extra functions on the system.

Barebone & Base Configurations

PPC-F17A-H81 Industrial Touch Panel PC

  • IP65 Aluminum Front Bezel
  • 17" 1280x1024TFT LCD w/Touchscreen
  • Intel® Pentium® Processor G3420 (3M Cache, 3.20 GHz)
  • Supports up to Intel° Core™ i5-4570S Processor (Optional)
  • Intel° H81 Chipset
  • 4GB DDR3 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • iRIS-2400 Remote Management Module (Optional)
  • Projected Capacitive Touch Screen (Optional)
  • 802.11 a/b/g/n/ac Wireless Kit (Optional)

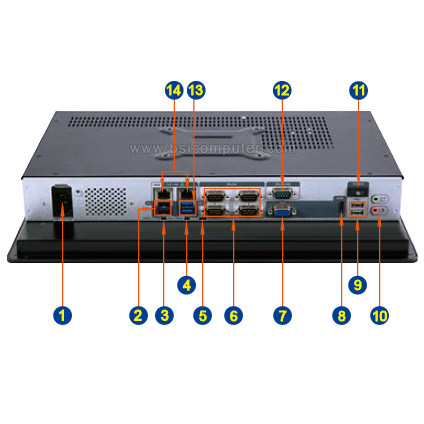

  • 4 x RS-232 (DB9), 1 x RS-422/485 (DB9)
  • 2 x Full-size PCIe Mini Card Slots
  • 2 x Gigabit Ethernet
  • 4 x USB2.0, 2 x USB 3.0 Ports
  • Built-in Audio
  • 220W AC-DC 1U Flex 80 Plus ATX Power Supply
    200W 24VDC Power Supply (Optional)

Barebone Only:
