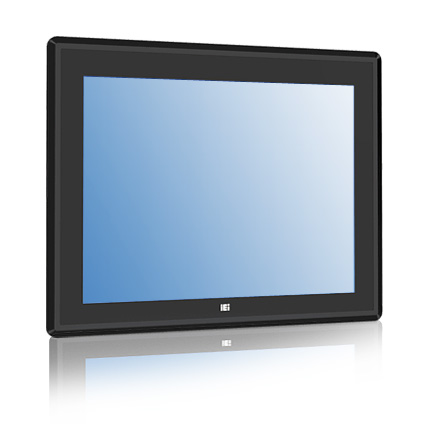

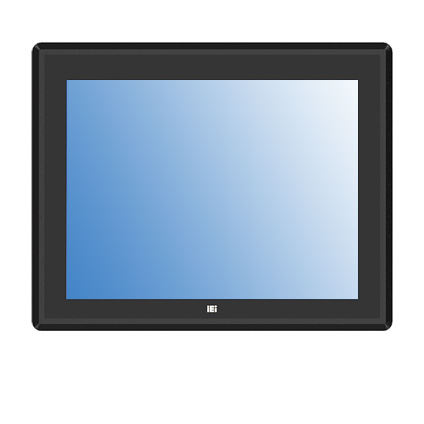

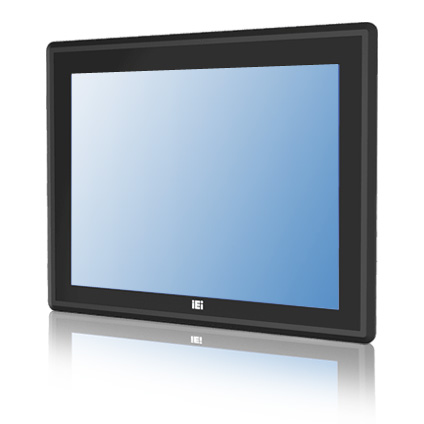

PPC2-C15-ADL 15" Heavy Industrial Panel PC

Features:

  • 15” 1024 x 768 400 nits TFT LCD with Projected Capacitive Touch Screen
  • 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor
  • Intel® H610 Chipset
  • 2 x 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX, 64GB)
  • 1 x 2.5'' SATA HDD/SSD Drive Bay
  • 1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x 4),
    1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
  • 1 x PCIe Gen4 x16 Slot (x16 Signal)
  • 4 x USB 3.2, 2 x USB 2.0
  • 2 x 2.5GbE LAN Ports
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Newly Designed Panel Mount Kit
  • New Graphical BIOS Interface

The PPC2-CW15-ADL heavy industrial panel PC is a cutting-edge computing solution equipped with a range of impressive features. Powered by the 12th Gen Intel® Processors Platform, it delivers exceptional performance and efficiency for demanding industrial applications. The inclusion of a PCIe Gen4 x16 slot (x16 signal) provides ample expansion possibilities for various peripherals and add-ons. Its anti-glare and anti-UV PCAP touchscreen ensures optimal visibility and durability in challenging environments, while also supporting gloved and wet hand operation. The newly designed panel mount kit enhances installation flexibility, and the new graphical BIOS interface simplifies system management and configuration. This panel PC is a robust choice for industrial settings requiring top-notch performance and reliability.

Barebone & Base Configurations

PPC2-C15-ADL Heavy Industrial Panel PC

  • 15” 1024 x 768 400 nits TFT LCD Display with Projected Capacitive Touch Screen
  • Intel Pentium Gold G7400 Processor (6M Cache 3.70 GHz)
  • 8GB DDR4 SO-DIMM Memory
  • 250GB M.2 Solid State Drive

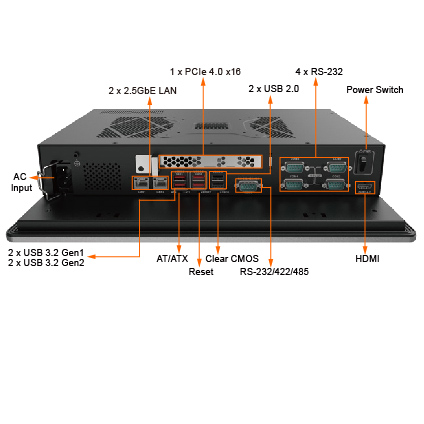

  • 1 x RS-232/422/485, 4 x RS-232
  • 4 x USB 3.2, 2 x USB 2.0
  • 1 x PCIe 4.0 x16 Slot
  • 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
  • 1 x HDMI 2.0
  • TPM
  • 2 x 2.5 GbE LAN
  • 250W AC input ATX Power Supply

Barebone Only:

$1,205.00

Configured:

$1,305.00

Customize
