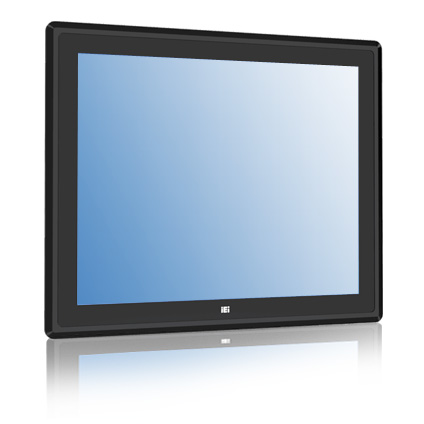

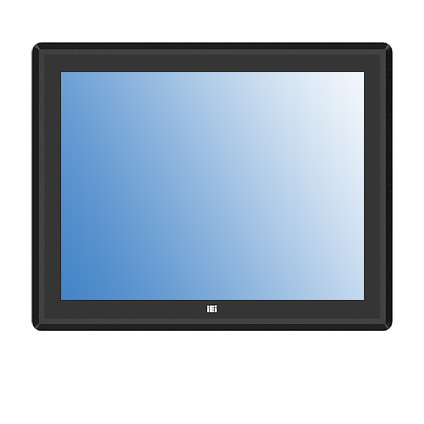

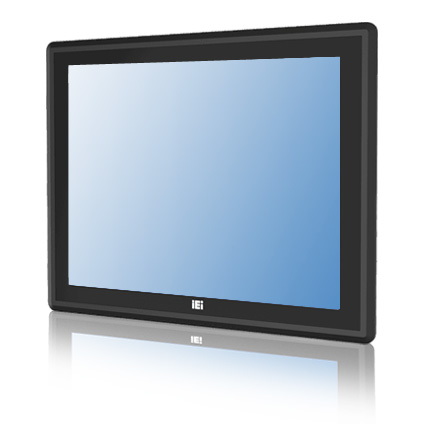

PPC2-C19-ADL 19" Heavy Industrial Panel PC

Features:

  • 19” 1280 x 1024 450 nits TFT LCD with Projected Capacitive Touch Screen
  • 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor
  • Intel® H610 Chipset
  • 2 x 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX, 64GB)
  • 1 x 2.5'' SATA HDD/SSD Drive Bay
  • 1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x 4)
  • 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
  • 1 x PCIe Gen4 x16 Slot (x16 Signal)
  • 4 x USB 3.2, 2 x USB 2.0
  • 2 x 2.5GbE LAN Ports
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation

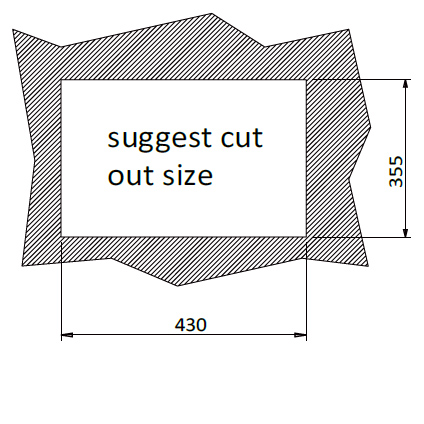

  • Newly Designed Panel Mount Kit
  • New Graphical BIOS Interface

The PPC2-C19-ADL heavy industrial panel PC is a robust computing solution engineered to thrive in challenging industrial environments. Powered by the 12th Gen Intel® Processors Platform, it delivers exceptional processing power and efficiency. Equipped with a PCIe Gen4 x16 slot (x16 signal), it offers ample expansion options for diverse peripherals and add-ons. Its anti-glare and anti-UV PCAP touchscreen ensures optimal visibility and durability, even in demanding conditions, and it supports gloved and wet hand operation for added usability. The newly designed panel mount kit facilitates versatile installation, while the new graphical BIOS interface simplifies system management and configuration. The PPC2-C19-ADL is the ideal choice for industrial applications that demand top-notch performance, reliability, and adaptability.

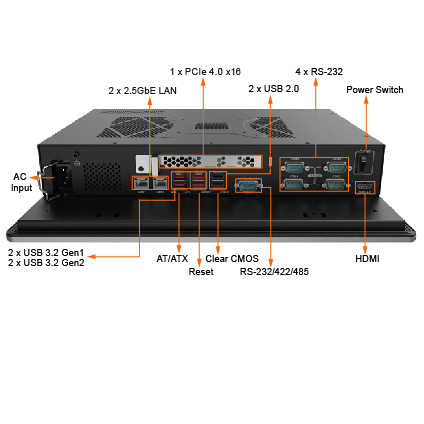

Barebone & Base Configurations

PPC2-C19-ADL Heavy Industrial Panel PC

  • 19" 1280 x 1024 450 nits TFT LCD Display with Projected Capacitive Touch Screen
  • Intel Pentium Gold G7400 Processor (6M Cache 3.70 GHz)
  • 8GB DDR4 SO-DIMM Memory
  • 250GB M.2 Solid State Drive
  • 1 x RS-232/422/485, 4 x RS-232
  • 4 x USB 3.2, 2 x USB 2.0
  • 1 x PCIe 4.0 x16 Slot
  • 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
  • 1 x HDMI 2.0
  • TPM
  • 2 x 2.5 GbE LAN
  • 250W AC input ATX Power Supply

Barebone Only:

$1,419.00

Configured:

$1,529.00

Customize
