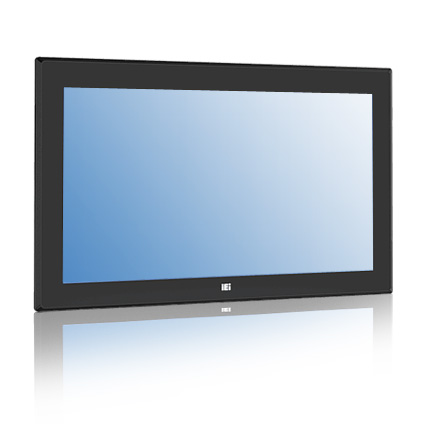

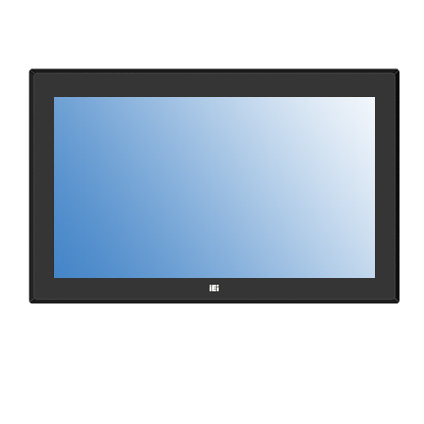

PPC2-CW15-ADL 15.6" Heavy Industrial Panel PC

Features:

  • 15.6” 1920 x 1080 450 nits TFT LCD with Projected Capacitive Touch Screen
  • 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor
  • Intel® H610 Chipset
  • 2 x 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX, 64GB)
  • 1 x 2.5'' SATA HDD/SSD Drive Bay
  • 1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x 4),
    1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
  • 1 x PCIe Gen4 x16 Slot (x16 Signal)
  • 4 x USB 3.2, 2 x USB 2.0
  • 2 x 2.5GbE LAN Ports
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation

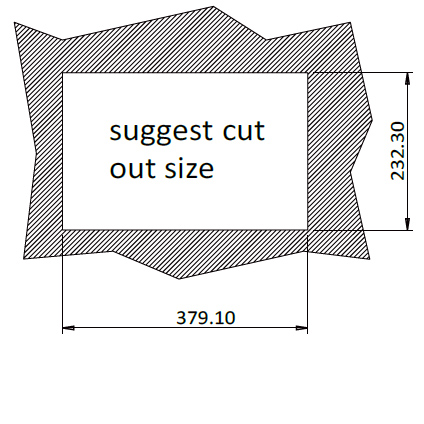

  • Newly Designed Panel Mount Kit
  • New Graphical BIOS Interface

The PPC2-CW15-ADL heavy industrial panel PC is an advanced computing solution tailored for demanding industrial settings. It harnesses the formidable processing power of the 12th Gen Intel® Processors Platform, ensuring exceptional performance and efficiency. With a PCIe Gen4 x16 slot (x16 signal), it offers extensive expansion possibilities for various peripherals and add-ons. The anti-glare and anti-UV PCAP touchscreen not only enhances visibility but also guarantees durability in challenging environments, all while accommodating gloved and wet hand operation for user convenience. The newly designed panel mount kit facilitates versatile installation, and the inclusion of a new graphical BIOS interface streamlines system management and configuration. The PPC2-CW15-ADL is the ideal choice for industrial applications that demand top-notch performance, reliability, and adaptability.

Barebone & Base Configurations

PPC2-CW15-ADL Heavy Industrial Panel PC

  • 15.6” 1920 x 1080 450 nits TFT LCD Display with Projected Capacitive Touch Screen
  • Intel Pentium Gold G7400 Processor (6M Cache 3.70 GHz)
  • 8GB DDR4 SO-DIMM Memory
  • 250GB M.2 Solid State Drive

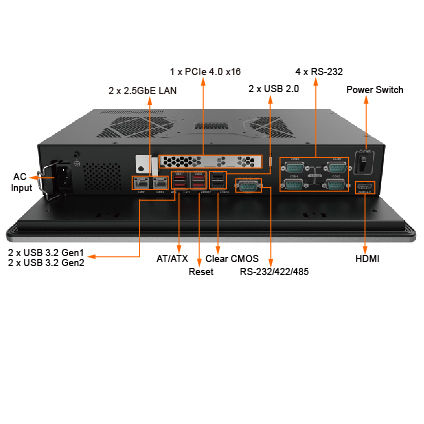

  • 1 x RS-232/422/485, 4 x RS-232
  • 4 x USB 3.2, 2 x USB 2.0
  • 1 x PCIe 4.0 x16 Slot
  • 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
  • 1 x HDMI 2.0
  • TPM
  • 2 x 2.5 GbE LAN
  • 250W AC input ATX Power Supply

Barebone Only:

$1,305.00

Configured:

$1,409.00

Customize
