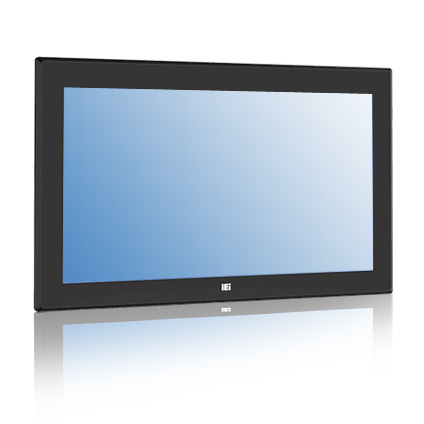

PPC2-CW15-EHL 15.6" Heavy Industrial Panel PC

Features:

  • 15.6” 1366 x 768 400 nits TFT LCD with Projected Capacitive Touch Screen
  • Intel® Celeron® J6412 2.0 GHz Quad-core Processor
  • 8GB dual-channel on-board LPDDR4/LPDDR4X
  • 1 x 2.5'' SATA HDD/SSD Drive Bay
  • 2 x M.2 2242/2280 B Key
    1 x M.2 2280 M Key (PCIe Gen3 x2)
  • 2 x USB 3.2 Gen 2, 4 x USB 2.0
  • 2 x 2.5GbE LAN Ports
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Newly Designed Panel Mount Kit

The PPC2-CW15-EHL is a fanless touch panel with a multi-touch point projected capacitive touch screen. The panel comes internally equipped with an Intel® Celeron® Processor J6412 and on-board dual-channel LPDDR4X 8GB memory. The screen itself sports a display size of 15.6 inches and a resolution of 1024x768. For storage, the panel comes with an internal m.2 m-key which allows the installation of Windows 10 or Linux operating systems. An additional feature included is the Intel Trusted Platforming Module. For mounting, the panel supports the VESA 100 format.

Barebone & Base Configurations

PPC2-CW15-EHL Heavy Industrial Panel PC

  • 15.6” 1366 x 768 400 nits TFT LCD Display with Projected Capacitive Touch Screen
  • Intel® Celeron® J6412 2.0 GHz Quad-core Processor
  • 8GB LPDDR4 Memory On-board
  • 250GB M.2 Solid State Drive
  • 1 x RS-232/422/485, 4 x RS-232
  • 2 x USB 3.2 Gen 2x1 (10Gb/s), 4 x USB 2.0
  • 2 x 2.5 GbE LAN via Intel I225-V
  • 1 x M.2 2242/2280 B Key (PCIe Gen3 x1 + USB 3.0)
    1 x M.2 B key 2242/2280 (PCIe Gen3 x 2 + USB 2.0)
    1 x M.2 2280 M Key (PCIe Gen3 x2)
  • 1 x HDMI
  • 12-24 VDC Power Input, 60W Power Adapter

Barebone Only:

$1,275.00

Configured:

$1,345.00

Customize
