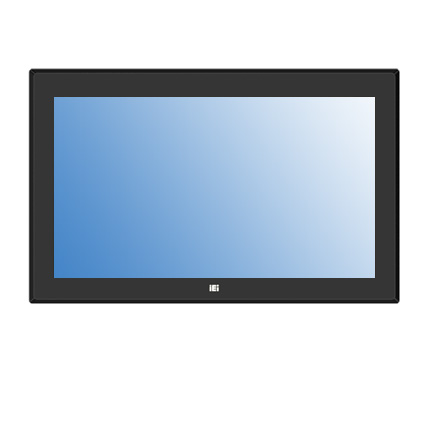

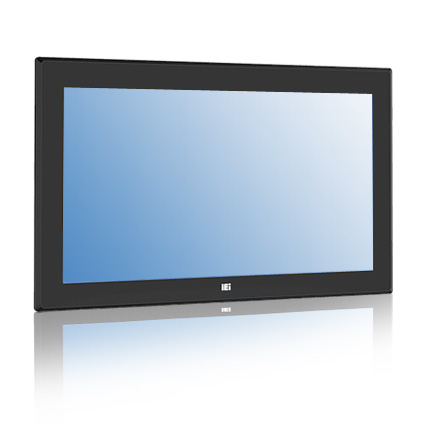

PPC2-CW19-ADL 18.5" Heavy Industrial Panel PC
Features:
- 18.5” 1920 x 1080 350 nits TFT LCD with Projected Capacitive Touch Screen
- 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor
- Intel® H610 Chipset
- 2 x 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX, 64GB)
- 1 x 2.5'' SATA HDD/SSD Drive Bay
- 1 x M.2 M Key 2242/2280 NVMe, 1 x M.2 E-Key 2230
- 1 x PCIe Gen4 x16 Slot (x16 Signal)
- 4 x USB 3.2, 2 x USB 2.0
- 2 x 2.5GbE LAN Ports
- Anti-glare and Anti-UV PCAP
- Support Gloved and Wet Hand Operation

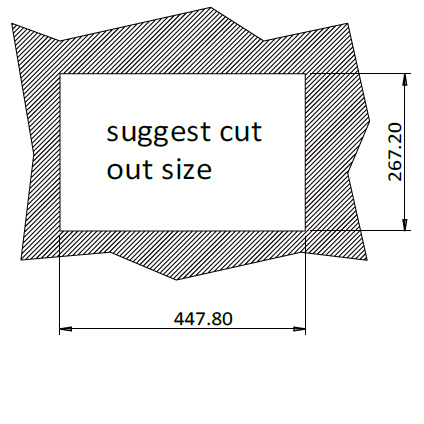

- Newly Designed Panel Mount Kit
- New Graphical BIOS Interface
The PPC2-CW19-ADL heavy industrial panel PC is a formidable computing solution engineered for the most demanding industrial environments. Powered by the 12th Gen Intel® Processors Platform, it delivers exceptional processing power and efficiency. Featuring a PCIe Gen4 x16 slot (x16 signal), it offers extensive expansion possibilities for a wide range of peripherals and add-ons. The anti-glare and anti-UV PCAP touchscreen not only ensures optimal visibility and durability but also supports gloved and wet hand operation, enhancing usability in various conditions. The newly designed panel mount kit simplifies installation, and the inclusion of a new graphical BIOS interface streamlines system management and configuration. The PPC2-CW19-ADL is the ultimate choice for industrial applications requiring top-tier performance, reliability, and adaptability.

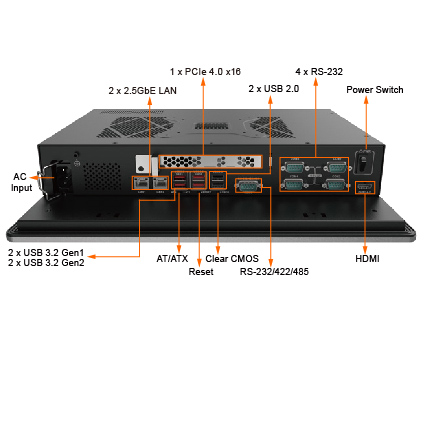

Barebone & Base Configurations
- 18.5” 1920 x 1080 350 nits TFT LCD Display with Projected Capacitive Touch Screen
- Intel Pentium Gold G7400 Processor (6M Cache 3.70 GHz)
- 8GB DDR4 SO-DIMM Memory
- 250GB M.2 Solid State Drive
- 1 x RS-232/422/485, 4 x RS-232
- 4 x USB 3.2, 2 x USB 2.0
- 1 x PCIe 4.0 x16 Slot
- 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
- 1 x HDMI 2.0
- TPM
- 2 x 2.5 GbE LAN
- 250W AC input ATX Power Supply
