PPC2-CW22-ADL 21.5" Heavy Industrial Panel PC

Features:

  • 21.5" 1920 x 1080 350 nits TFT LCD with Projected Capacitive Touch Screen
  • 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor
  • Intel® H610 Chipset
  • 2 x 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX, 64GB)
  • 1 x 2.5'' SATA HDD/SSD Drive Bay
  • 1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x 4),
    1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
  • 1 x PCIe Gen4 x16 Slot (x16 Signal)
  • 4 x USB 3.2, 2 x USB 2.0
  • 2 x 2.5GbE LAN Ports
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation

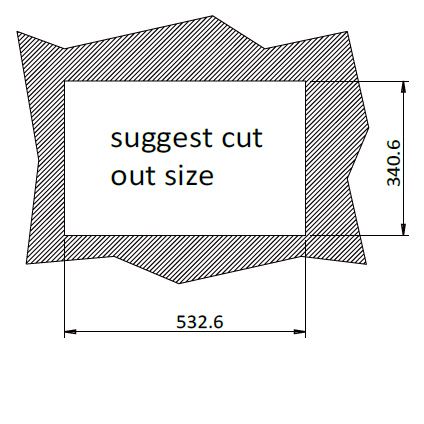

  • Newly Designed Panel Mount Kit
  • New Graphical BIOS Interface

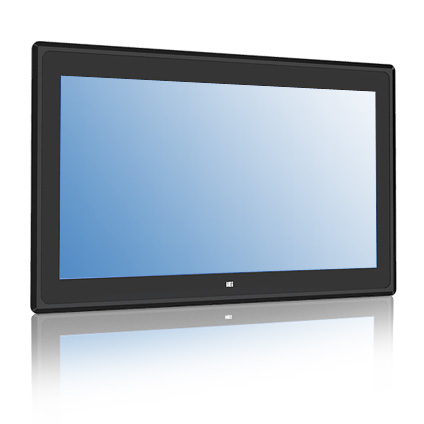

The PPC2-CW22-ADL heavy industrial panel PC is a powerful computing solution tailored for rigorous industrial environments. Equipped with the 12th Gen Intel® Processors Platform, it offers robust processing capabilities and efficiency. Its PCIe Gen4 x16 slot (x16 signal) provides ample expansion options for a variety of peripherals and add-ons. The anti-glare and anti-UV PCAP touchscreen ensures optimal visibility and durability, while also accommodating gloved and wet hand operation for user convenience. The newly designed panel mount kit enhances installation flexibility, and the new graphical BIOS interface simplifies system management and configuration. The PPC2-CW22-ADL is the ideal choice for industrial applications that require superior performance, reliability, and adaptability.

Barebone & Base Configurations

PPC2-CW22-ADL Heavy Industrial Panel PC

  • 21.5" 1920 x 1080 350 nits TFT LCD Display with Projected Capacitive Touch Screen
  • Intel Pentium Gold G7400 Processor (6M Cache 3.70 GHz)
  • 8GB DDR4 SO-DIMM Memory
  • 250GB M.2 Solid State Drive

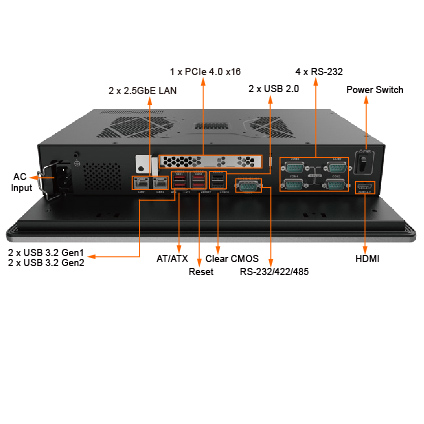

  • 1 x RS-232/422/485 (RS-485 support AFC), 4 x RS-232
  • 4 x USB 3.2, 2 x USB 2.0
  • 1 x PCIe 4.0 x16 Slot
  • 1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0)
  • 1 x HDMI 2.0
  • TPM
  • 2 x 2.5 GbE LAN
  • 250W AC input ATX Power Supply

Barebone Only:

$1,385.00

Configured:

$1,495.00

Customize
