Features:

• Intel Celeron J6412 Processor, 10nm, 4 cores, up to 2.60 GHz TDP 10W
• 1 x Single Channel DDR4 SO-DIMM (Max. 32GB)
• 1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
• 1 x 2230 M.2 E-Key (WiFi/BT)
• 2 x HDMI for Dual display
• 1 x COM Port (RS-232), 2 x GbE LAN Ports

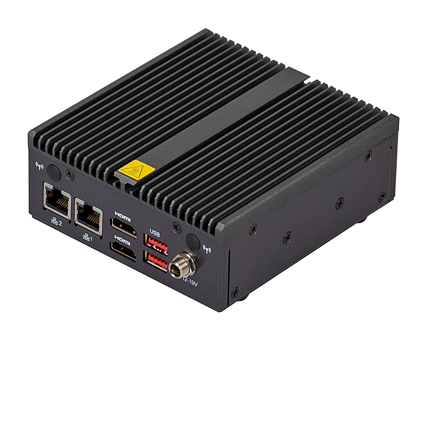

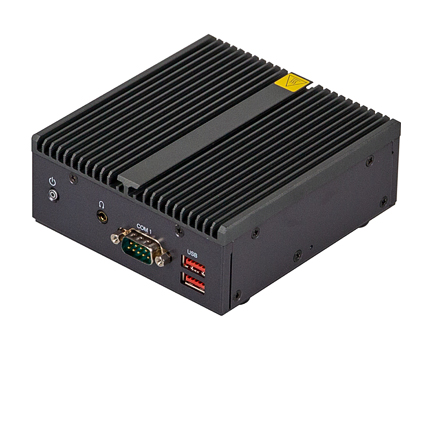

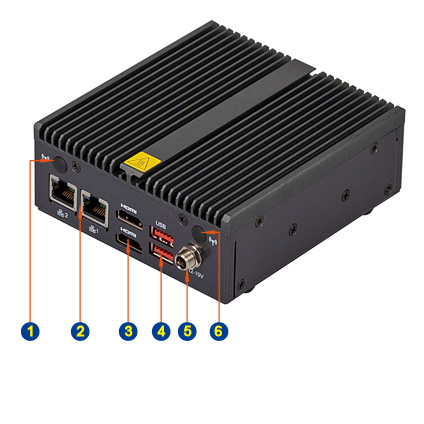

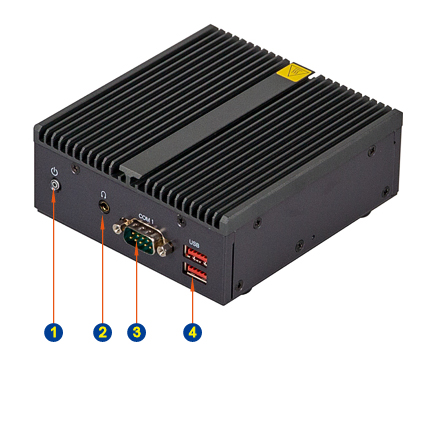

The QBiX-EHLA6412-A1 is a compact, fanless industrial embedded system powered by the Intel Celeron J6412 processor, delivering dependable performance for industrial automation, edge computing, and embedded control applications. Measuring just 118 × 109.4 × 44.4 mm, it supports single-channel DDR4 memory through one SO-DIMM slot and features a lockable DC power connector for secure, reliable operation in demanding environments. The system offers dual HDMI outputs for dual-display capability, dual Gigabit Ethernet ports for stable network connectivity, an RS-232 COM port for legacy device integration, and a convenient combo audio jack for headphones or headsets, making it a versatile solution for a wide range of industrial deployments..
