Features:

• Intel Core i5-1145G7E Processor
• 2 x Dual Channel DDR4 SO-DIMM (Max. 64GB)
• 1 x 2.5" SATA 6Gb/s HDD Drive Bay
• 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
• 1 x 2230 M.2 E-Key (WiFi/BT)
• 1 x 3052 M.2 B-key with SIM Slot (Support 5G)
• 2 x HDMI, 2 x Display Ports
• 2 x USB Type C Ports

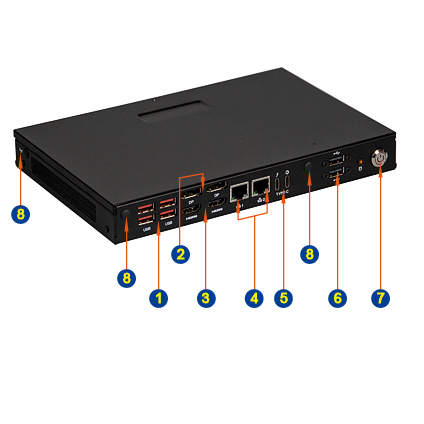

The QBiX-Lite-TGLA1145G7E-A1 is a compact industrial embedded system powered by the Intel Core i5-1145G7E processor, delivering reliable performance for digital signage, industrial automation, and edge computing applications. Featuring an active cooling fan and a slim 234 × 155 × 30 mm chassis, it supports up to 64GB of dual-channel DDR4 memory through two SO-DIMM slots for responsive multitasking. The system offers extensive display connectivity with two HDMI and two DisplayPort outputs, enabling support for up to four displays, while dual Gigabit Ethernet ports and two USB Type-C ports provide flexible, high-speed connectivity for a wide range of peripherals and networked devices..
