Features:

• Intel Celeron J6412 Processor, 10nm, 4 cores, up to 2.60 GHz TDP 10W
• 2 x Dual Channel DDR4 SO-DIMM (Max. 32GB)
• 1 x 2.5" SATA 6Gb/s HDD Drive Bay
• 1 x 2280 M.2 M-Key (PCIe Gen x2, SATA 6Gb/s)
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
  1 x COM Port (RS-232/422/485)
  1 x COM Port (RS-232)
• 1 x Full-size Mini PCIe with SIM slot
• 2 x HDMI
• 2 x GbE LAN Ports

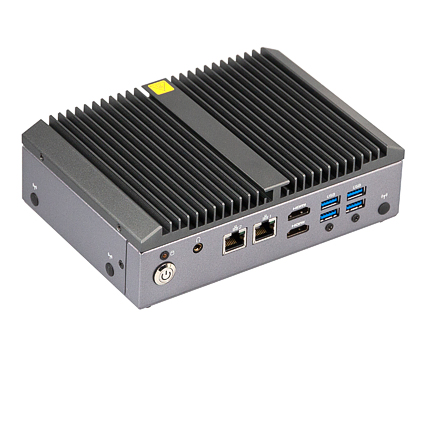

The QBiX-Pro-EHLA6412H-A1 is a compact, fanless industrial embedded system powered by the Intel Celeron J6412 processor, delivering reliable performance for industrial automation, machine control, and edge computing applications. Housed in a slim 178 × 125 × 52.7 mm chassis, it supports up to 32GB of dual-channel DDR4 memory through two SO-DIMM slots for efficient multitasking. The system offers dual HDMI outputs for dual-display support, dual Gigabit Ethernet ports for dependable network connectivity, and three configurable COM ports—including RS-232, RS-422, and RS-485 with RI/5V/12V support on one port—providing extensive compatibility with a wide range of industrial peripherals and legacy devices..
