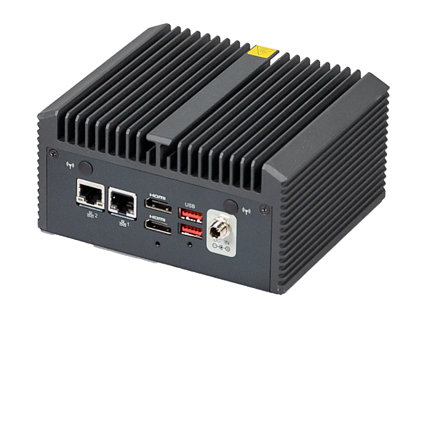

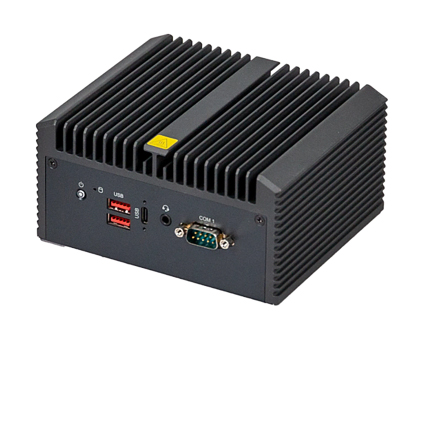

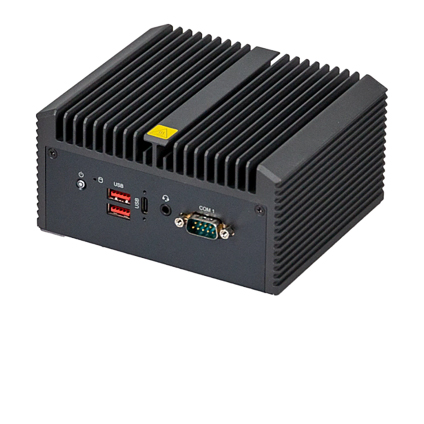

QBiX-RPLA1335H-A1 Fanless Embedded System with Intel Core i5-1335U Processor

Features:

  • Intel Core i5-1335U Processor
  • 2 x Dual Channel DDR5 SO-DIMM (Max. 64GB)
  • 1 x 2.5" SATA 6Gb/s HDD Drive Bay
  • 1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
  • 1 x 2230 M.2 E-Key (WiFi/BT)
  • Onboard TPM 2.0
  • 2 x HDMI, 1 x DP1.4 (USB type C – DP Alt. mode) for Triple Display
  • 1 x 2.5GbE LAN Port, 1 x GbE LAN Port
  • Lockable DC Connector

.

Base Configurations

QBiX-RPLA1335H-A1 Fanless Embedded PC
QBiX-RPLA1335H-A1 Fanless Embedded PC

  • Intel Core i5-1335U Processor (12M Cache, up to 4.60 GHz)
  • 8GB DDR5 SO-DIMM Memory
  • 500GB M.2 NVMe Solid State Drive
  • 1 x RS-232/422/485 (DB-9) COM Port
  • 4 x USB3.2 Gen 2
  • Onboard TPM 2.0
  • Built-in 2 x HDMI, 1 x DisplayPort 1.4 (USB Type C – DP Alt. Mode)
  • Built-in 1 x 2.5GbE LAN, 1 x GbE LAN
  • 135W 100-240VAC Power Adapter

Configured:

$1,089.00

Customize
