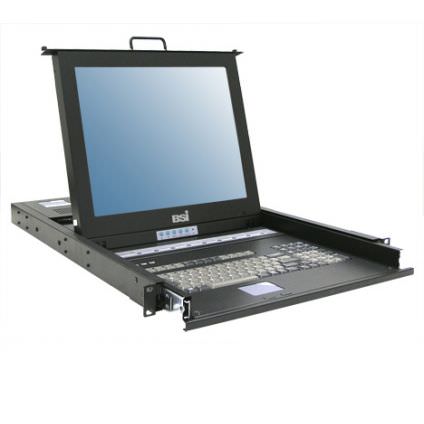

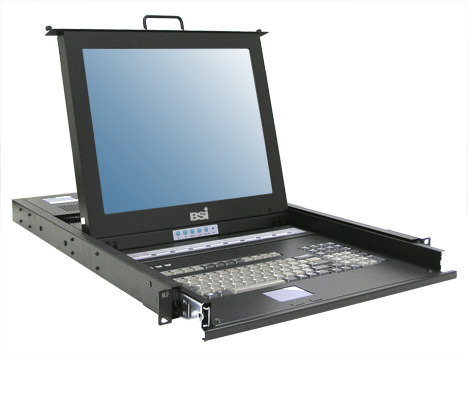

RMK987C - 17" 8 Port Rackmount LCD Monitor Keyboard Drawer


  • 1U 17" LCD Rackmount LCD Keyboard Drawer
  • 17" 1280x1024 TFT LCD Screen
  • 300nits Brightness
  • 15-pin D-Sub VGA Connector
  • Built-in 8 Port KVM Switch
  • Built-in 105 Key Cherry Switch Keyboard

The RMK987C is a 1U 17" LCD rackmount keyboard drawer, which is cost effective and saving space. It includes a 8 port KVM, 105 Key Cherry Switch Keyboard and touch pad. With the RMK987C, users can control their computer system by using the built-in KVM switch. The RMK987C is mounted on slide rails so users can easily pull it out from the equipment rack.

The RMK987C rack mount LCD keyboard drawer has a 17" 1280x1024, 300nits LCD flat panel display that let the users put more information on screen instead of cluttering it with menus and tool bars. The On Screen Display (OSD) menu let users adjust the display for optimum viewing.

Base Configurations

RMK987C - 17" Rackmount LCD Keyboard Drawer

  • 1U Rackmount LCD Keyboard Drawer
  • 17" 1280 x 1024 Resolution
  • 170°H / 160°V View Angle
  • 300nits Brightness
  • 500:1 Contrast Ratio
  • LCD Backlight
  • 262K Colors
  • USB/ PS/2 Connector
  • 8 Port KVM
  • 105 Key Cherry Switch Keyboard
  • 32° ~ 122°F (0° ~ 50°C)
  • 20~80% non-condensing Humidity

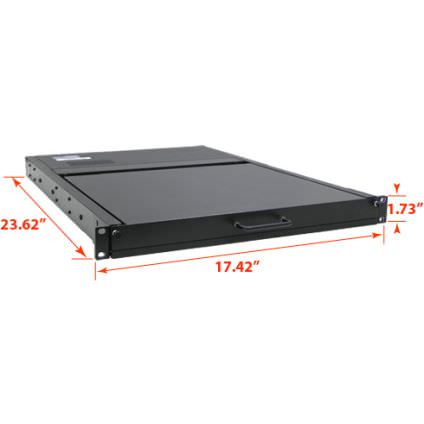

  • 17.42" x 1.73" x 23.62"(W x H x D)
