RMS146 1U Rack Mount Computer

Features:

  • 1U Rack Mount Computer
  • ATX / Micro ATX Form Factor
  • 4 x 3.5" Hot-Swap Drive Bays
  • Built in 12Gb/s hot-swap backplane, supports 12Gb/s mini-SAS HD or 12Gb/s SAS/SATA
  • 2 x 2.5" Internal Drive Bays
  • Slim DVD+/-RW Optical Drive (Optional)
  • 3 x 40mm Cooling Fans
  • 1 x PCIe/PCI Expansion Slot
  • Front Access: 2 x USB Ports
  • 21.6" Depth Rack Mount Computer
  • Due to the height of the chassis, the Motherboard I/O panel is not included

The RMS146 rackmount computer presents a robust computing solution within a 1U form factor, offering exceptional storage and functionality. Compatible with ATX/Micro ATX form factors, it integrates seamlessly into diverse setups. Boasting 4 x 3.5" hot-swap drive bays, supported by a built-in 12Gb/s hot-swap backplane compatible with 12Gb/s mini-SAS HD or 12Gb/s SAS/SATA drives, it ensures ample and high-speed storage options. Additionally, it includes 2 x 2.5" internal drive bays and an optional slim DVD+/-RW optical drive for enhanced versatility. Equipped with 3 x 40mm cooling fans and a PCIe/PCI expansion slot, it offers effective cooling and customization capabilities. Front access to 2 x USB ports provides convenient connectivity. With a depth of 21.6", this rackmount computer strikes a balance between powerful performance and space-saving design, making it an ideal choice for various industrial and commercial applications.

Need a Custom Solution Not Offered Online? Click the Button Below.

Base Configurations

Model: ATX/Micro ATX Rackmount Computer - RMS146

-

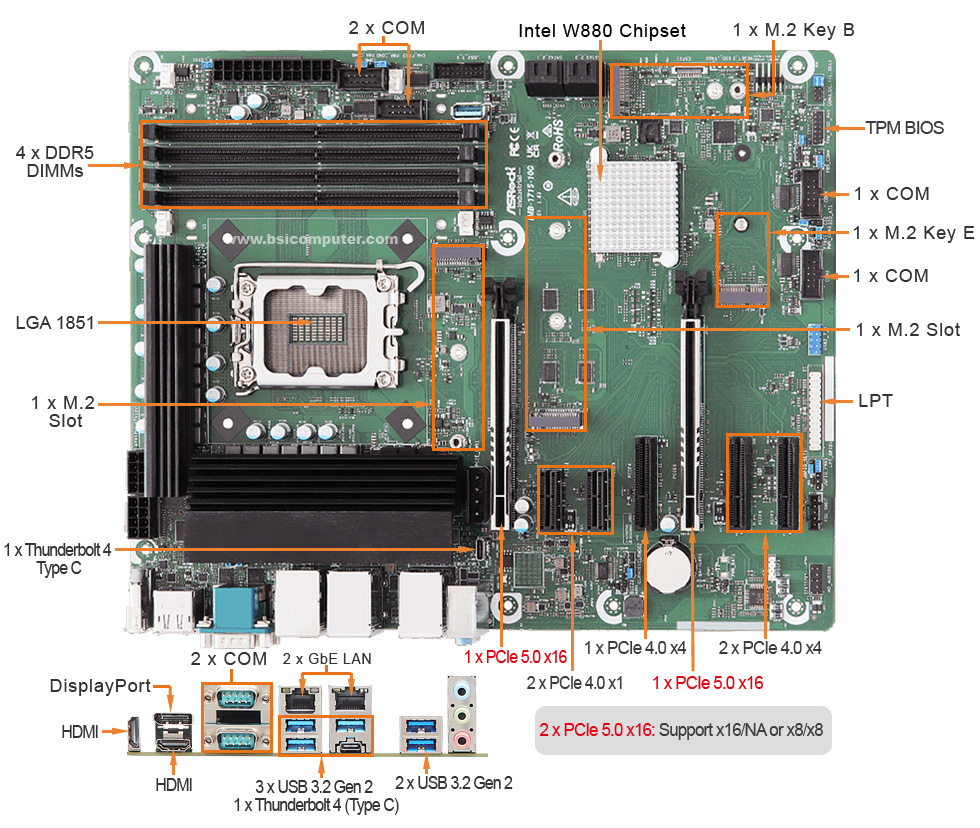

1U Rackmount Computer with ASRock IMB-X1715 Motherboard


  • ASRock IMB-X1715 ATX Motherboard
  • Intel Core Ultra Processors
  • Intel W880 Chipset
  • DDR5 Memory
  • M.2 NVME Solid State Drive
  • 2 x M.2 Key M Slots, 1 x M.2 Key B, 1 x M.2 Key E
  • TPM 2.0 Onboard IC
  • 2 x Thunderbolt 4 (USB Type C)
  • Built-in 2 x GbE LAN (ASRock IMB-X1715)
  • Built-in 2 x GbE LAN, 1 x 10G LAN (ASRock IMB-X1715-10G, Optional)

Base Price:

$1,689.00

Customize

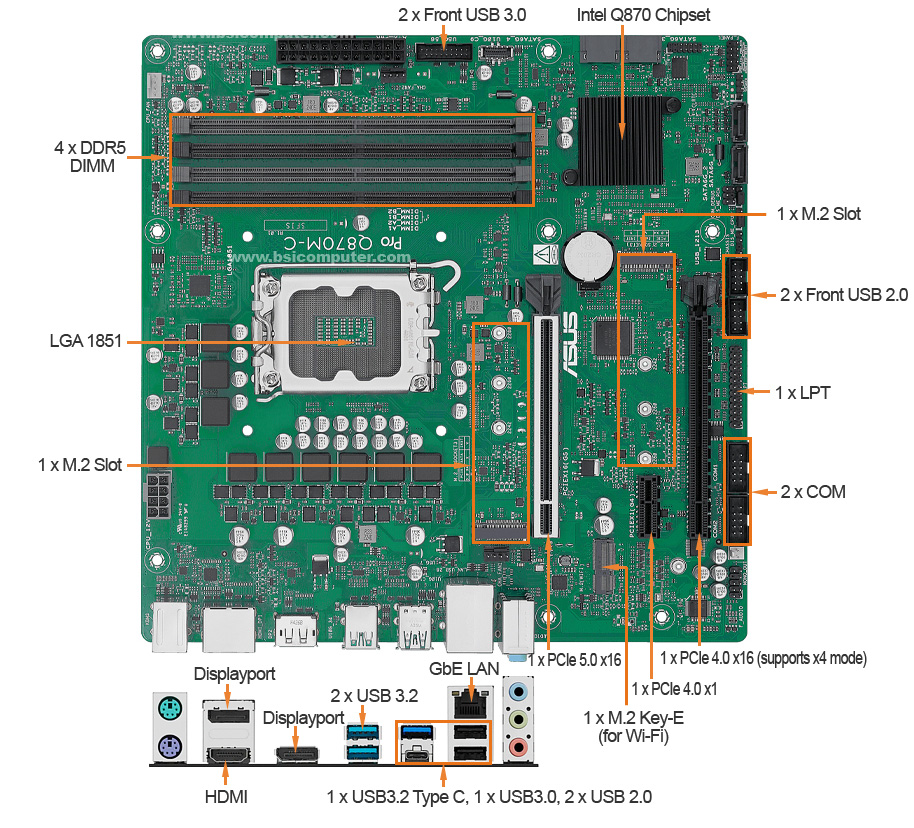

1U Rackmount Computer with ASUS Pro Q870M-C-CSM Motherboard


  • ASUS Pro Q870M-C-CSM Micro ATX Motherboard
  • Intel Core Ultra Processors
  • Intel Q870 Chipset
  • DDR5 Memory
  • M.2 NVME Solid State Drive
  • 2 x M.2 Key M Slots, 1 x M.2 Key E
  • TPM IC onboard
  • Built-in GbE LAN

Base Price:

$1,399.00

Customize

1U Rackmount Computer With Gigabyte MS03-CE0 Motherboard


  • Gigabyte MS03-CE0 Motherboard
  • 4th/5th Gen Intel Xeon Scalable processors
  • Intel C741 Chipset
  • DDR5 ECC Reg Memory
  • M.2 NVME Solid State Drive
  • 4x 3.5" SATA Hot-Swappable Removable Kit
  • 1 x TPM header
  • 3 x SlimSAS with 12 x SATA 6Gb/s Ports
  • 7 x PCIe 5.0 x16 and x8 Expansion Slots
  • Built-in 2 x Gigabit LAN, 1 x MLAN

Base Price:

$2,705.00

Customize

1U Rackmount Computer with Supermicro X13SCL-F Motherboard


  • Supermicro X13SCL-F Motherboard
  • Intel Pentium Processor
  • Intel Xeon E-2400 Processor
  • Intel C262 Chipset
  • DDR5 ECC Memory
  • M.2 NVME Solid State Drive
  • 1 x M.2 Slot
  • 1 x TPM Header
  • Built-in Dual Gigabit LAN, 1x IPMI LAN

Base Price:

$1,499.00

Customize

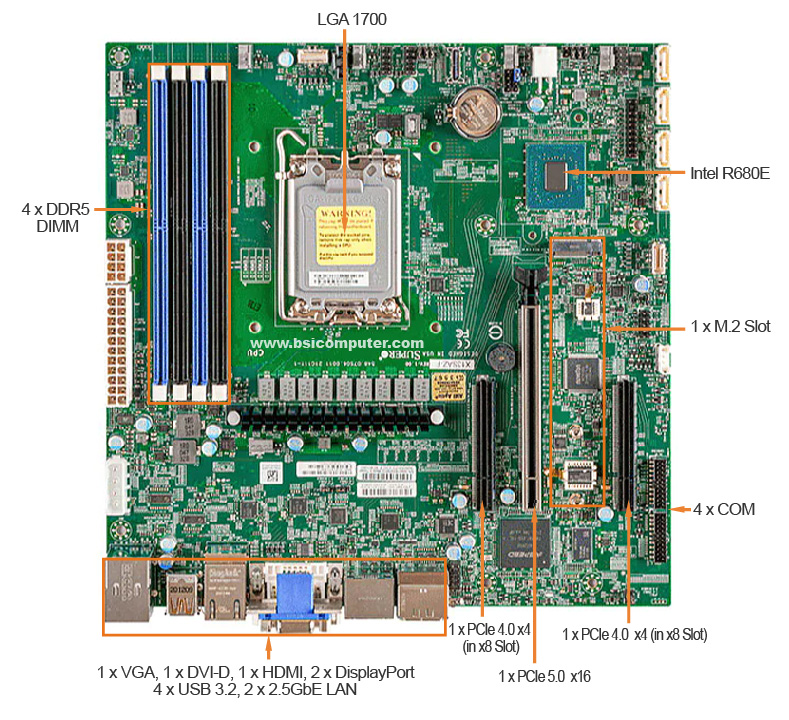

1U Rackmount Computer With Supermicro X13SAZ-F Motherboard


  • Supermicro X13SAZ-F Motherboard
  • 14th Gen Intel Processor
  • Intel R680E Chipset
  • DDR5 ECC Memory
  • M.2 NVME Solid State Drive
  • TPM 2.0 Onboard
  • Built-in 2 x 2.5GbE LAN

Base Price:

$1,765.00

Customize

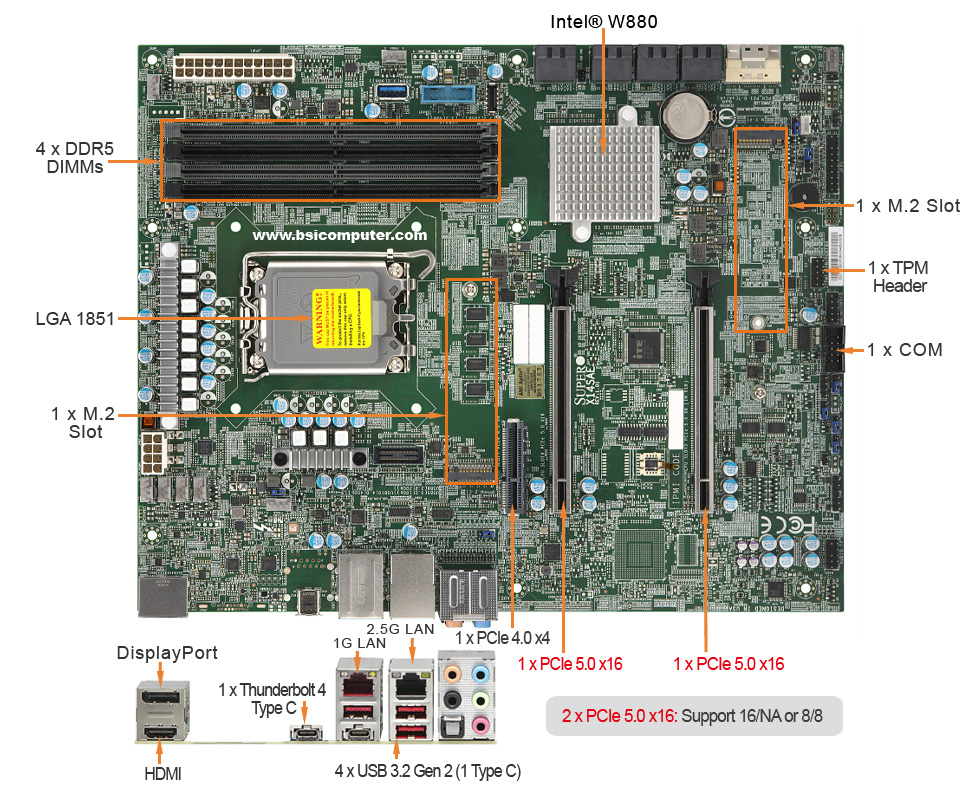

1U Rackmount Computer With Supermicro X14SAE Motherboard


  • Supermicro X14SAE ATX Motherboard
  • Intel Core Ultra Processors
  • Intel W880 Chipset
  • DDR5 Memory
  • M.2 NVME Solid State Drive
  • 2 x M.2 Slot
  • TPM2.0 Onboard
  • 1 x Intel Thunderbolt 4 Type C
  • Built-in 1 x GbE LAN, 1x 2.5GbE LAN

Base Price:

$1,805.00

Customize

1U Rackmount Computer With Supermicro X12STH-F Motherboard


  • Supermicro X12STH-F Motherboard
  • Intel Xeon E-2300 Processor, 10th Generation Intel Pentium Processor
  • Intel C256 Chipset
  • DDR4 ECC Memory
  • M.2 NVME Solid State Drive
  • 4x 3.5" SATA Hot-Swappable Removable Kit
  • 1 x TPM Header
  • Built-in 2 x GbE LAN

Base Price:

$1,505.00

Customize

1U Rackmount Computer With Supermicro X13SEM-F Motherboard


  • Supermicro X13SEM-F Motherboard
  • 4th/5th Gen Intel Xeon Scalable processors
  • Intel C741 Chipset
  • DDR5 ECC Reg Memory
  • M.2 NVME Solid State Drive
  • 4x 3.5" SATA Hot-Swappable Removable Kit
  • 2 x M.2 Slots
  • 4 x PCIe 5.0 x8 MCIO Connectors
  • Built-in Dual Gigabit LAN & IPMI LAN

Base Price:

$2,645.00

Customize

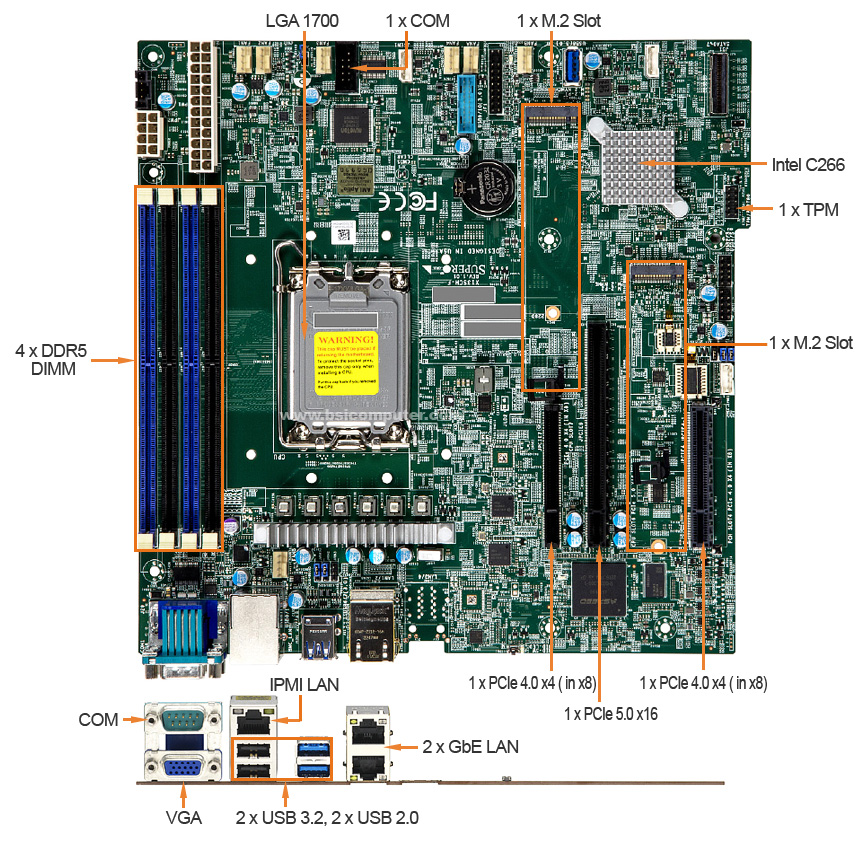

1U Rackmount Computer with Supermicro X13SCH-F Motherboard


  • Supermicro X13SCH-F Micro-ATX Motherboard
  • Intel Xeon 6300 Series / Intel Pentium Processor
  • Intel C266 Chipset
  • DDR4 ECC Unbuffered Memory
  • M.2 NVME Solid State Drive
  • 2 x M.2 Slots
  • 1 x TPM Header
  • Built-in 2 x Gigabit LAN, 1 x IPMI LAN

Base Price:

$1,545.00

Customize
